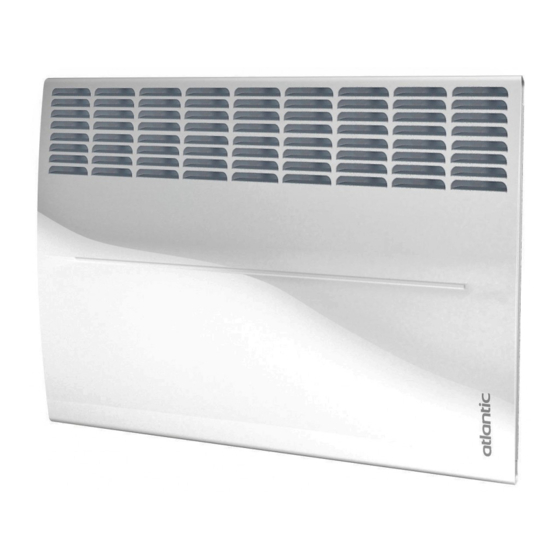

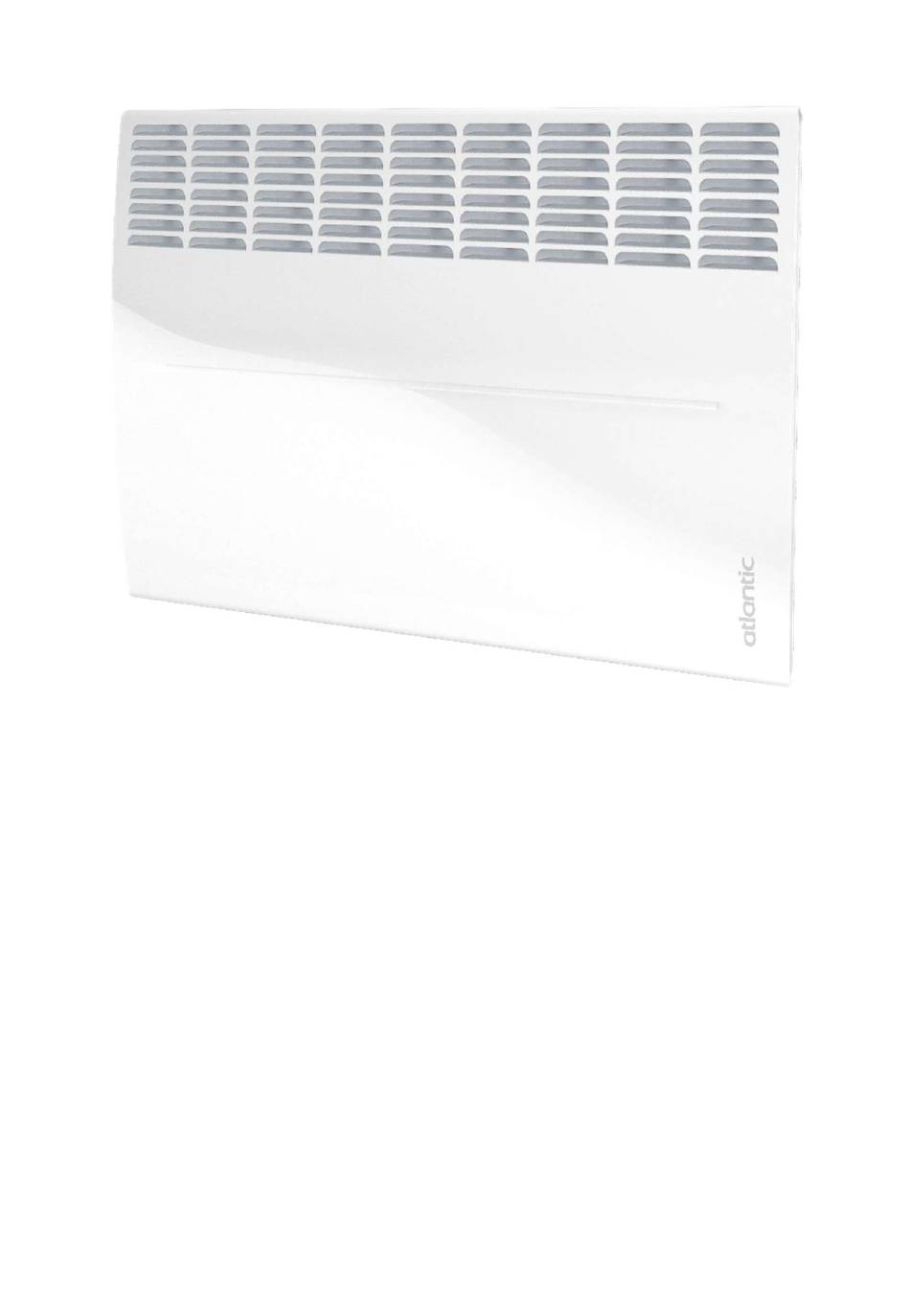

- Page 1 F129 DESIGN Operating manual CMG-BD1 U0628726 ELECTRICAL CONVECTOR This product is only suitable for well insulated spaces or occasional use.
- Page 3 WARNING Caution, hot surface. WARNING: Some parts of this product may become very hot and cause burns on contact. Special care must be taken if children and vulnerable adults are present. Children under 3 years must be kept away from this appliance, unless they are constantly supervised.
- Page 4 F129 DESIGN WITH ELECTRONIC THERMOSTAT Atlantic brand founded in 1968 is known for its specialization in heating systems, thermal comfort and energy saving technologies. New F129 Design model purchased by you comes with 40 years of experience and innovations.
-
Page 5: Installation
INSTALLATION Where to install the device? Zona 2 Zona 1 This appliance has been designed to be installed in residential premises. Please consult your dealer if other circumstances apply. It must be installed in accordance with professional standards, and comply with the regulations in force in the country of installation. The appliances are class II and protected from water splashes to IP 24. - Page 6 For appliances equipped with absence detector: - To optimize the absence detection of your appliance, avoid installing the device in narrow corner or behind furniture. Do not install the appliance In a draught that could affect its adjustment (beneath a centrally-controlled mechanical fan unit, etc.).
- Page 7 - The appliance must be placed on a horizontal surface. Please refer to feet kit assembly instruction on page 2 of this booklet or to instructions with feet (ref. 0517300, 0517400). Wall mounting version Release the appliance’s latching bar. We recommend you place the appliance flat on the ground. Use a screwdriver to raise the tongue of the fitting, carefully so as not to distort it.
- Page 8 - Lock the appliance onto latching bar. Place the appliance at an angle on the supports S1. Pivot the appliance to place it on the supports S2. Lower the appliance onto latching bar. The appliance clicks in place, showing it is fixed and latched. To release the appliance from the latching bar, use a flat-head screwdriver and push the tongue (top left of the latching bar behind the appliance) towards the wall.
-
Page 9: Operating Principle
OPERATING PRINCIPLE Increasing decreasing temperature (7°C to 30°C in Manual Mode only) without further mandatory confirmation Navigation through the menu; Confirmation; Switching off; Blocking, unlocking OPERATING MODES The appliance has 2 operating modes: Manual The appliance constantly maintains the temperature set in the settings. Prog The appliance runs an internal program configured for each day of the week. -
Page 10: Control Lock
MANUAL mode will be activated. the set temperature will be 20°C. TURNING THE HEATING ON/OFF To turn the heating off, press and hold down . Confirm "OFF" command by pressing . To switch the appliance on, press and hold down CONTROL LOCK To prevent changing the settings by children, you can lock the appliance controls by pressing and holding down... - Page 11 Menu in MANUAL mode Go to the Menu by pressing To go back to main screen. The temperature Mode Manual can be set. PROG Clock To set the date and time To switch the appliance off Back To go back to start screen Menu in PROG mode Go to the Menu by pressing Manual...
- Page 12 Out of Comfort ranges, the setpoint temperature is ECO temperature, which can be adjusted in Temp.ECO section. Mode PROG Mode Program Select the day using . Confirm Select using . Confirm Select the start time using . Confirm . Select the end time using .
- Page 13 Menu EXPERT To access the advanced features, press simultaneously and hold down for at least 3 seconds. Menu To adjust the setpoint temperature depending on the room temperature if a difference can be seen after 2 hours of heating. Calibration value in the Settings interval between -3°C below and +3°C above the setpoint temperature.
-
Page 14: Model Specifications
MODEL SPECIFICATIONS CMG-BD1 Specification Symbol Value Unit Heat output Rated heat output P nom 0.5 - 2.5 Minimum heat output P min Long-term maximum heat output P max, c 2.5. Auxiliary power consumption At the maximum heat output el max 0.000 At the minimum heat output el min... -
Page 15: Advice For Users
ATTENTION! The housing protection should never be cleaned with abrasive and aggressive products. ADVICE FOR USERS Putting the appliance at its maximum setting will not increase the temperature faster. If you are out for several hours, consider lowering the temperature. If you have several appliances in one room, let them operate together, so you have a more uniform temperature while optimizing power consumption. - Page 16 The replacement parts will be supplied free of charge however Atlantic does not accept responsibility for freight, labour charges or losses in transit.
- Page 17 A Standards, quality labels B Commercial name C Commercial reference D Manufacturing reference E Serial number F Manufacturer number Type of Device Serial Number Name and address of the customer INSTALLER STAMP...
