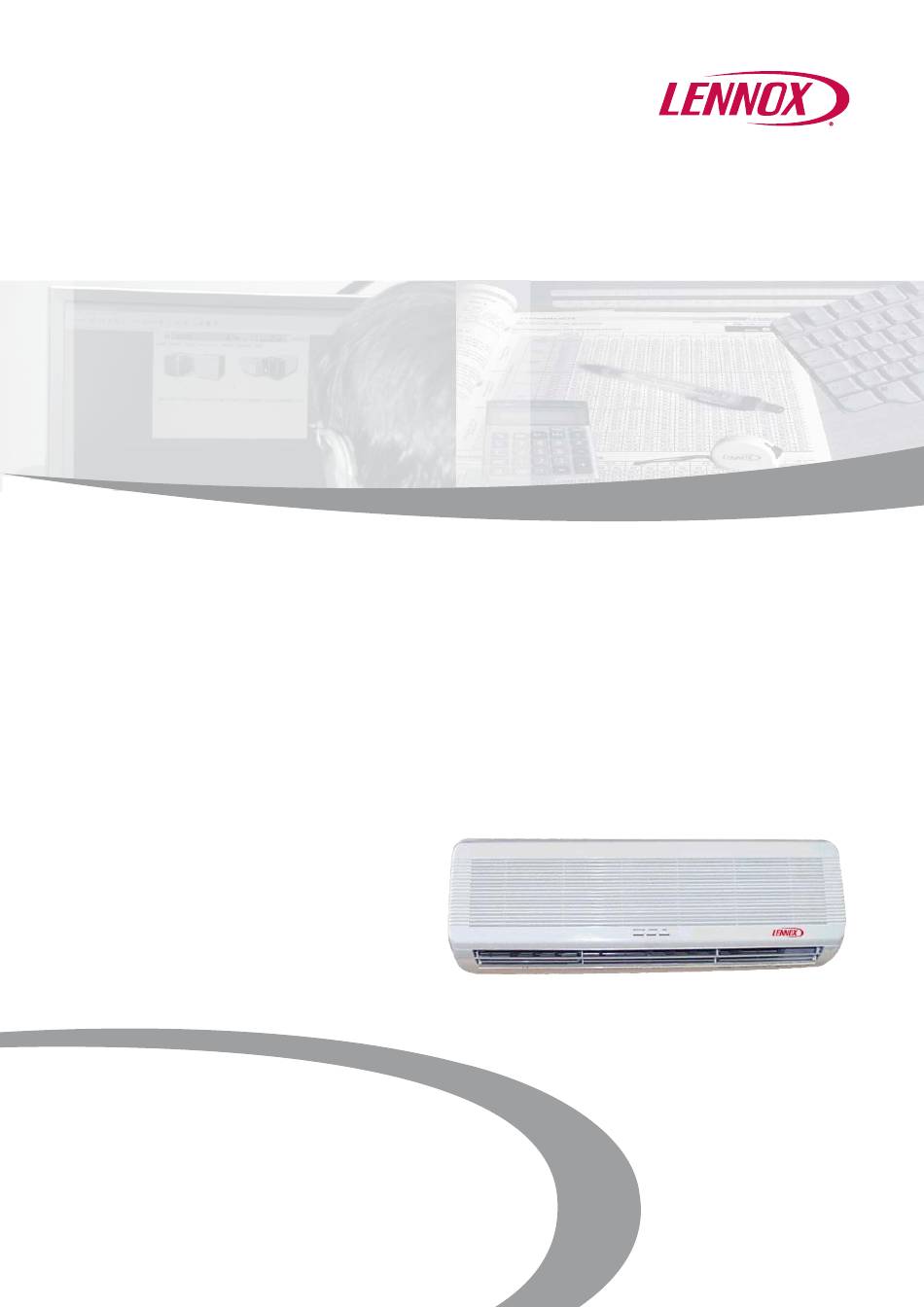

- Page 1 Application guide COMFAIR 440 - 860 m High wall fan coil unit COMFAIR HD-AGU-1107-E...
- Page 3 All the technical and technological information contained in this manual, including any drawing and technical descriptions provided by us, remain the property of Lennox and must not be utilised (except in operation of this product), reproduced, issued to or made available to third parties without the prior written agreement of Lennox.

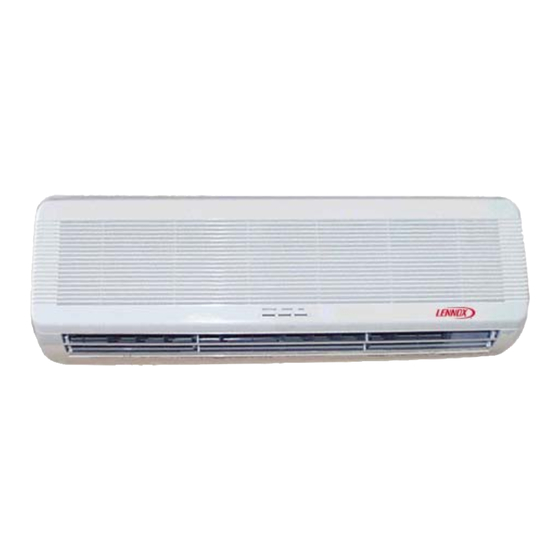

- Page 4 GENERAL - HD HIGH WALL FAN COIL UNITS - HD Comfair HD fan coil units are similar in design and use to the widely used DX high-wall mini-split systems. With a maximum width of only 210mm, the casing is manufactured from high quality plastic and is of an aesthetically pleasing design to compliment almost every environment.
- Page 5 GENERAL DATA - EUROVENT CONDITIONS - HD All data are at Eurovent conditions. http://www.eurovent-certifi cation.com/ PROGRAM: FC-2-H COMFAIR 1,55 2,89 Sensible cooling capacity 1,45 3,32 1,99 3,44 1,45 1,87 3,71 Total cooling capacity 1,73 2,04 2,46 4,42 1,81 2,21 4,51 Heating capacity 2,22 2,42...
- Page 6 INSTALLATION - HD INSTALLATION WITH SIMPLE MOUNTING PLATE The method of installing the wall-mounted water-fi lled fan coil of the HD range is shown below. Take into account the following: - Looking at the unit from the front, the supply pipes go from right to left. - The system pipes must come from the left.
- Page 7 INSTALLATION - HD INSTALLATION WITH BUILT-IN VALVES Important! It is recommended that wall-mounted water-fi lled fan coils are 2. Cover the bottom edge of the niche with a steel angle bar installed with ON/OFF devices. (NOT supplied). Apply the mounting plate and fi x it using four screws and four screw anchors in the relative holes: 9-10 mm ANGLE BAR...
- Page 8 INSTALLATION - HD INSTALLATION WITH BUILT-IN INSTALLATION WITH VALVES VALVES - CONT’D AND OUTER FRAME 7. Connect the valve to the connecting hoses: Proceed as shown bellow to assemble the mouting plate: IMPORTANT! It is recommended that wall-mounted water-fi lled fan coils are installed with ON/OFF devices.
- Page 9 INSTALLATION - HD INSTALLATION WITH VALVES AND OUTER FRAME - CONT’D 4. Final result: HD1 AND HD2 5. Repeat points 4, 5, 6, 7, and 8 of the previous section (Installtaion with built-in valves) Application Guide • COMFAIR HD-AGU-1107-E • 7 •...
-
Page 10: General Description
CONTROLLERS GENERAL DESCRIPTION CD2X6 RCE 10E Wall mounted - 3 digits display Wall mounted On/Off - Heating/Cooling - 3 speeds On/Off - Heating/Cooling - 3 speeds Ambiant temperature knob adjustment Ambiant temperature knob adjustment Wall mounted CD2X6 RCE10E Characteritics ... - Page 12 +351 229 066 050 +33 4 72 23 20 00 Due to Lennox’s ongoing commitment to quality, the specifi cations, ratings and dimensions are subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
