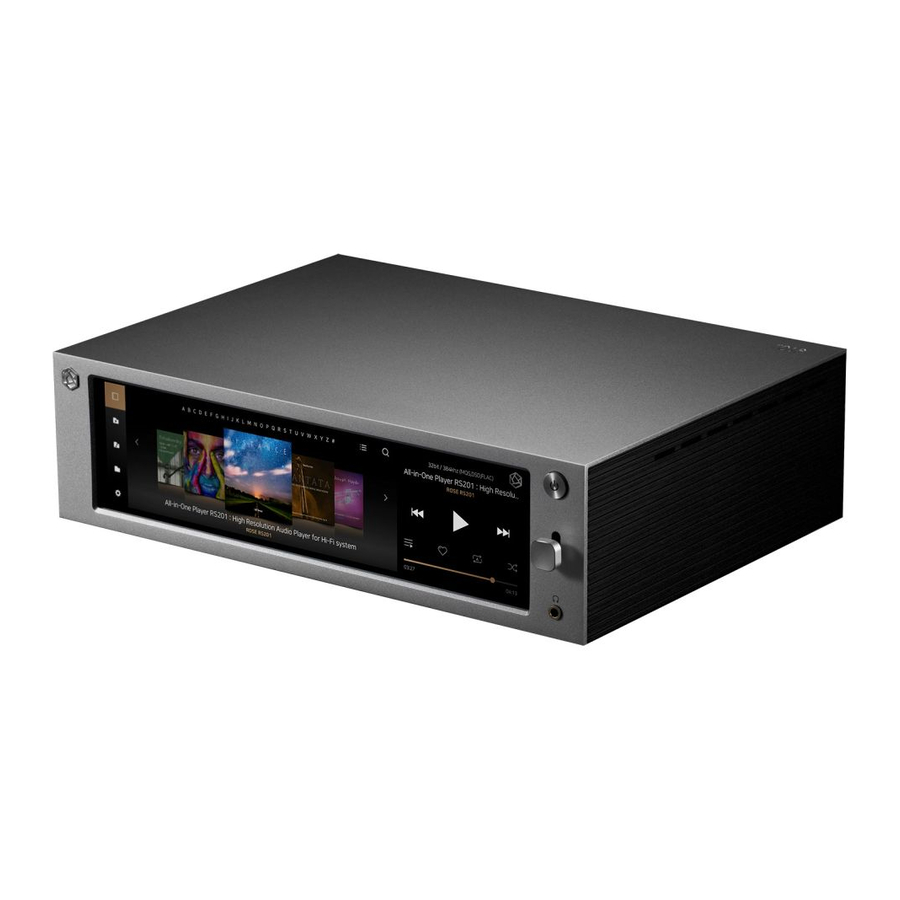

- Page 1 Instruction Manual RS201 www.hifirose.com...
-
Page 2: Table Of Contents
Contents 1. Safety Precautions 1.1 Warning 1.2 Cautions 2. List of Components 3. Button’s Location and Function 4. Connection and Operation 4-1 Power Button 4-2 Bluetooth Remote Controller Pairing 4-3 Inserting SSD 5. Home Screen and Menu Widget 5-1 Icon of Menu 5-2 Moving Screen Icons 5-3 Icon at The Top of The Screen 6. -
Page 3: Safety Precautions
1. Safety Precautions Warning · Do not apply excessive force to the product, throw or give impact to the product using sharp objects. · When used by children, a protector or a guardian should give guidance, and check if safety precautions are being followed. -
Page 4: List Of Components
2. List of Component Main body, Adapter, Power Cord, Quick Guide, BT Remote controller, AAA battery 2ea Screw for SSD, Screwdriver... -
Page 5: Button's Location And Function
3. Button’s Location and Function Front Side Rear Side... -
Page 6: Connection And Operation
4. Connection and Operation · Please follow the procedure below. Power Button · Push power button in a second, ROSE would be power on and screen off. · Push power button in 3 seconds, ROSE shows 'Screen off', 'Power off' and 'Reboot'. ※... -
Page 7: Inserting Ssd
Inserting SSD ※ SSD is optional, Only 7mm height is supported. -
Page 8: Home Screen And Menu Widget
5. Home Screen and Menu Widget · Display icons. Move on to other menus by the left/right scrolling. · Upper Bar: Displays the Time. Product ID(changeable). Playlist of music currently playing. External input(Local. Optical. Aux changeable). Displays Alarm. Timer. HeadSet. Bluetooth. DLNA. -
Page 9: Icon At The Top Of The Screen
Icon at The Top of The Screen · These icons indicate the device status, and can be confirmed in the alarm bar at the top end of the screen. 6. Internet Connection WIFI Connection... -
Page 10: Ethernet Connection
Home Screen. (Flashing in White: Booting / White: Connection available / Blue: Connected) · For AirPlay service, RS201 and the device should be connected to the same AP (Wireless Network) Connecting DIAL Service · You can transfer YouTube playback screen from the Android phone to the RS201. -
Page 11: Connecting To Home Network
Connecting to Home Network · RS201 can play files from PC and NAS. · RS201 and PC or NAS should be connected to the same AP (wireless network). · And in your PC, folders should be set as ‘shared’. · If the information you input is correct, folders and files of the shared device will appear as shown below. -
Page 12: Rose Connect (Remote App)
ROSE Connect (Remote App) 8. Specifications Part Specifications Note Project Name ALL-IN_ONE PLAYER Model Name RS201 ANDROID7.1 (Nougat) Six-Core ARM® 64-bit processor, up to 2.0GHz DRAM LPDDR3 4GB Memory Flash eMMC 8GB 8.8” TFT LCD& Capacitive Touch Screen (MIPI-DSI) DISPLAY... - Page 13 VIDEO DECODER - MMU embedded - Real-time video decoder of MPEG-1,MPEG-2,MPEG-4 H.263,H.264,H.265,VC-1,VP9,VP8,MVC VIDEO - H.264/AVC,Base/Main/High/High profile@level5.1; up to 4Kx2K @30fps - H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier; up to 4Kx2K@60fps WIFI Combo Half 802.11 b/g/n/a (2.4GHz/5GHz) Bluetooth MiniPCIe Card V4.0 / V3.0 +HS Support 480p/480i/576p/576i/720p/720i/1080p/1080i/4k HDMI2.0 Support RGB/YUV420(up to 10bit)format...
-
Page 14: Wifi/Bluetooth Rf Mode
USB Type C OTG (1Port) Digital IN Optical (1Port) Digital OUT Optical (1Port) Speaker L+/L-, R+/R- Input Voltage: AC100-240V 50/60Hz Adaptor Out Voltage : DC 24V, 5.0A Operating Temperature 0~40℃ Storage Temperature -20~70℃ Size 278mm*202mm*76mm Weight 2.3Kg Bluetooth Remote Controller (1ea) AAA Battery (2ea) Simple manual (1ea) Accessary... - Page 15 802.11g 2412~2462 2412~2462(20HT) 802.11n(2.4G) 2422~2452(40HT) 5.2G(5180~5240) 802.11a 5.8G(5745~5825) 5.2G(5180~5240) 802.11n(5G) 20HT 5.8G(5745~5825) 5.2G(5190~5230) 802.11n(5G) 40HT 5.8G(5755~5795) BDR(2.4G) Bluetooth 4.0 EDR(2.4G) 802.11a:13dBm+/- 2dBm(54Mbos) Output Power(WIFI) 802.11b:16dBm+/- 2dBm(11Mbos) 802.11g:14dBm+/- 2dBm(54Mbos) 802.11n@2.4GHz:13dBm+/- 2dBm(HT20MCS7) 802.11n@2.4GHz:13dBm+/- 2dBm(HT40MCS7) 802.11n@5GHz:12dBm+/- 2dBm(HT20MCS7) 802.11n@5GHz:12dBm+/- 2dBm(HT40MCS7) Output Power(BT) 0≤Output Power ≤ 8dBm(Conductive)
-
Page 16: Quality Certification
Therefore, even with the same content, there may be differences in volume, tone, etc. with other manufacturers and other models. Quality Guaranteed. Model Name: RS201 Date of Purchase: Year: 20___, Month: ___________, Date: ___ (1 Year from the Date of Purchase) Place of Purchase: Firm Name Telephone ▪... -
Page 17: Rose Customer Service Center (A/S Center)
▪ Identification code of authenticated person: SYH ▪ Authentication number: R-R-SYH-RS201 Rose Customer Service Center (A/S center) Telephone: 1899-6042 Website: www.hifirose.com It is possible to check the telephone number and location information of the nearest service center from the customer service center or homepage. - Page 18 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
