- Page 1 SIMPLE MANUAL RS150 Quick Guide English ver.
-
Page 2: Safety Precautions
1. Safety Precautions Warning · Do not apply excessive force to the product, throw or give impact to the product using sharp objects. · When used by children, a protector or a guardian should give guidance, and check if safety precautions are being followed. · Use the device within 0°C to 40°C, and avoid to use in high temperature and high humidity environment. If the product is used in an enclosed environment with high temperature below 0°C or in a sauna, it may cause breakdown, corrosion, heat generation or ignition. Do not put it in an enclosed space. Moisture or liquids can also damage the surface and circuit components. · Always use adapters that are certified by ROSE. Other power adapters may cause malfunction or damage the product (degradation in performance). · Do not spill waste or liquid on the product. This may damage the parts and circuit. If the product gets wet, contact the nearest service center without turning on the power. However, free aftersale repair service is not available in this case. · Do not connect antennae or accessories, which are not certified by ROSE, and do not place the product on objects that can cause jamming.(steel desks, microwave, etc.) ·... -
Page 3: List Of Component
2. List of Component Product SIMPLE MANUAL Bluetooth Remote Power Cord Manual Controller Battery for Remote WiFi/BT Dongle Screw for SSD Controller (sold separately) - 2 -... -
Page 4: Front Side

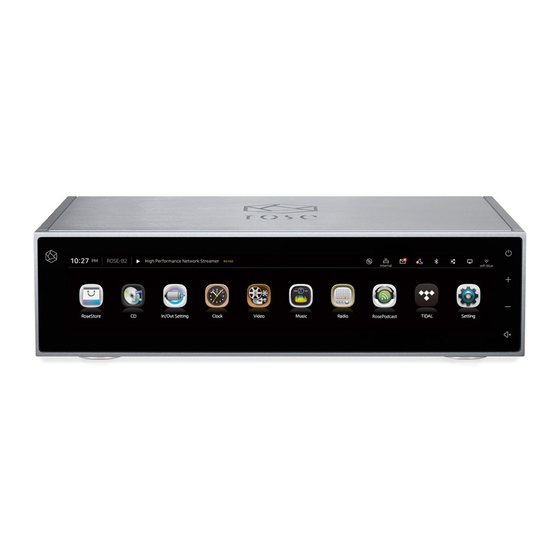

3. Button’s Location and Function Front Side Power Volume Mute Multi-touch IPS Wide-view LCD Rear Side AES/EBU In/Out Audio In USB WiFi/BT AC Inlet Jack Dongle Power Switch Ethernet Micro SD USB 3.0 USB Audio Out USB-C(Update) Balanced Coaxial HDMI Out In/Out Optical Line Unbalanced Reset In/Out Input - 3 -... -
Page 5: Connection And Operation
4. Connection and Operation Power Button · Turn ROSE on or off. · Push power button in 3 seconds, ROSE shows 'Screen off', 'Power off' and 'Reboot'. Playing sound on screen off status. LCD OFF When it is screen off, it will be screen on after push power button. ※ It is fu nction which only turn off the screen. Power OFF Power is off. Reboot ROSE is reboot. ※ To cancel, touch any screen other menu. · Push power button in 5 seconds, it would be reboot. · Power button LED status : Screen on (LED OFF) / Screen off (LED ON) Bluetooth Remote Controller Pairing Push remote controller home( ) and option button( ) same time for 3 seconds ▶ BT Remote controller’s red LED will light on Choose setting( ) BT setting ▶ ▶ ▶ BT switch on( ) Register new device Select 'ROSE RCU' from the list of available devices ▶... - Page 6 Inserting SSD ❶ Loosen bottom of screws(2ea) ❷ Push OPEN indicator, seperate SSD cover ▶ ▶ ❸ Put SSD on the SSD cover ❹ Fix SSD by screws in the box ▶ ▶ ❺ Assemble the cover ❻ Push LOCK indicator and tighten screws ▶ ※ SSD is optional, Only 7mm height is supported. ❶ ❷ ❹ ❸ ❹ ❻ ❺ - 5 -...
-
Page 7: Home Screen
· Upper Bar : Displays the Time. Product ID(changeable). Playlist of music currently playing. External input(LOCAL, DIGITAL, LINE INPUT, HDMI(ARC), USB IN, AES/EBU). Displays Alarm. Sleep Timer. Bluetooth. DLNA. Airplay. WiFi or Ethernet Connection · Menu Widget : Move on to other menus by the left/right scrolling Icon of Menu Music Play Music from Memory or Network. Radio Listen to the Internet Radio. ROSE Tube Enjoy YouTube contents without ads. ROSE Podcast Enjoy Podcast contents. TIDAL You can log in to Integrated TIDAL and play the music. Rip or Play CD music using USB CD ROM. Video Play Video from Memory or Network. Clock Check time and set the Alram. Check location to get weather information. Setting Show RS150 information and edit setting. Input setting of LOCAL, DIGITAL, LINE INPUT, HDMI(ARC), USB IN, AES/EBU In/Out Setting and Output setting of INTERNAL DAC, USB DAC, HDMI. ROSE Store You can update ROSE Tube, TIDAL, ROSE Podcast App. - 6 -... - Page 8 Moving Screen Icons Home Button Move to main page. Backward Move to previous page. Button Icon on The Top of Screen · These icons indicate the device status, and can be confirmed in the alarm bar at the top end of the screen. Icon for CD Ripping connection status. This is an external input icon and shows the connection status of LOCAL, DIGITAL, LINE INPUT, HDMI(ARC), USB IN, AES/EBU. You can do this by clicking the Input icon in the In/Out setting menu of the home screen.( Incoming New Alarm, check the mail box. Sleep timer setting. Bluetooth device is connected. DLNA is connected, it would be restart when click. (White : Booting / Gray : Connection off / Flickering : Connecting) Airplay is connected, it would be restart when click. (White : Booting / Gray : Connection off / Flickering : Connecting) WiFi and Ethernet Signal Reception, Move to network setting when click. - 7 -...
-
Page 9: Internet Connection
6. Internet Connection Ethernet Connection Connect Ethernet connector to the socket Click on Settings( ) Move to Ethernet Settings ▶ ▶ ▶ Activate Ethernet switch( ) Connected ▶ WiFi Connection · You can use WiFi by connecting the WiFi dongle to the back. Select Settings( ) or WiFi icon( ) Move to WiFi Settings screen Activate WiFi switch( ) ▶ ▶ ▶ Select searched device (Input PW) Connected ▶ ▶ 7. Connecting Mobile Devices AirPlay Connection ·... -
Page 10: Dlna Connection
(Flashing in White : Booting / White : connection available or connected / Blue : Not used) · For AirPlay service, RS150 and the device should be connected to the same AP (Wireless Network) DLNA Connection · RS150 and DLNA device should be connected to the same AP (wireless network). · When DLNA is activated, You can connect it after appearing RS150 in the App. Execute DLNA support App Select Device Connect to ROSE ▶ ▶ · When DLNA is connected, the following screen appears and the music is played. mp3 16bit 44.1KHz 2ch High Performance Network Streamer RS150 Connecting to Home Network · RS150 can play files from PC and NAS. Select music( ) or video( ) in homescreen Select Folder Button Select Network Folder Select ▶ ▶ ▶... - Page 11 HDMI · You can find out the HDMI icon( ) in the top of right when RS150 is processing Video or ROSE Tube. Showing video clips on TV, Mornitor via HDMI cable after click icon. Select files to play music and videos. click previous icon( ) or seperate HDMI cable , but Video still play on RS150 display. ROSE Connect (Remote App) · Searching ROSE Connect in App store, Google playstore, It is a variable to download and setup. · RS150 and ROSE Connect must be connected to the same AP (wireless network) and ROSE Connect can remotely control RS150. (Music, Video, Radio, ROSE Tube, ROSE Podcast, TIDAL, Device option setting, and Remote control functions such as Volume / Power.) MQA (Master Quality Authenticated) · MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. · RS150 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. · The green or blue dot next to MQA logo indicates that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner. · Visit mqa.co.uk for more information. · MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016 - 10 -...
-
Page 12: Specifications
8. Specifications Part Specifications Customized Android 7.1 Size 430(W)×316(D)×123(H)mm Weight 13Kg Design Body Milled from Solid Block of High Purity Aluminum, Minimizing Vibrations and Noise Display 14.9 inch Wide HD IPS Touch Screen LCD Dual-core Cortex-A72 up to 1.8GHz Hexa Core CPU Quad-core Cortex-A53 up to 1.4GHz Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 MEMORY... -
Page 13: Quality Certification
· Name of the company that received the conformity assessment : CITECH Co. Ltd · Country of manufacture : South Korea · Identification code of authenticated person : SYH · Authentication number : R-R-SYH-RS150 Things to check before contacting a service center · Please restart the product if touch does not work or if the screen freezes. If you press and hold the power key longer than 5 seconds, it will be forcibly rebooted. - Page 14 www.hifirose.com Made in Korea...
