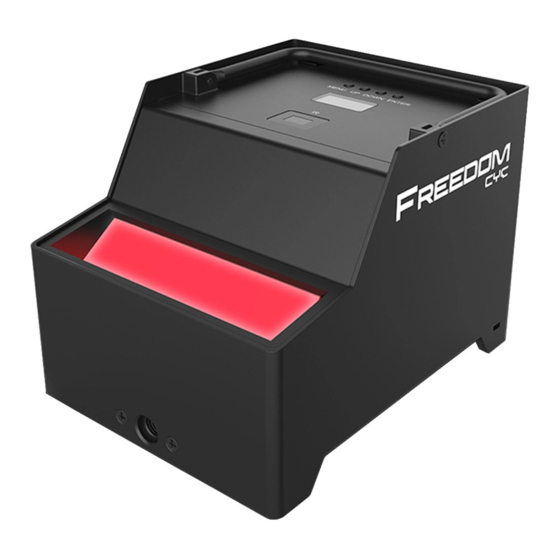

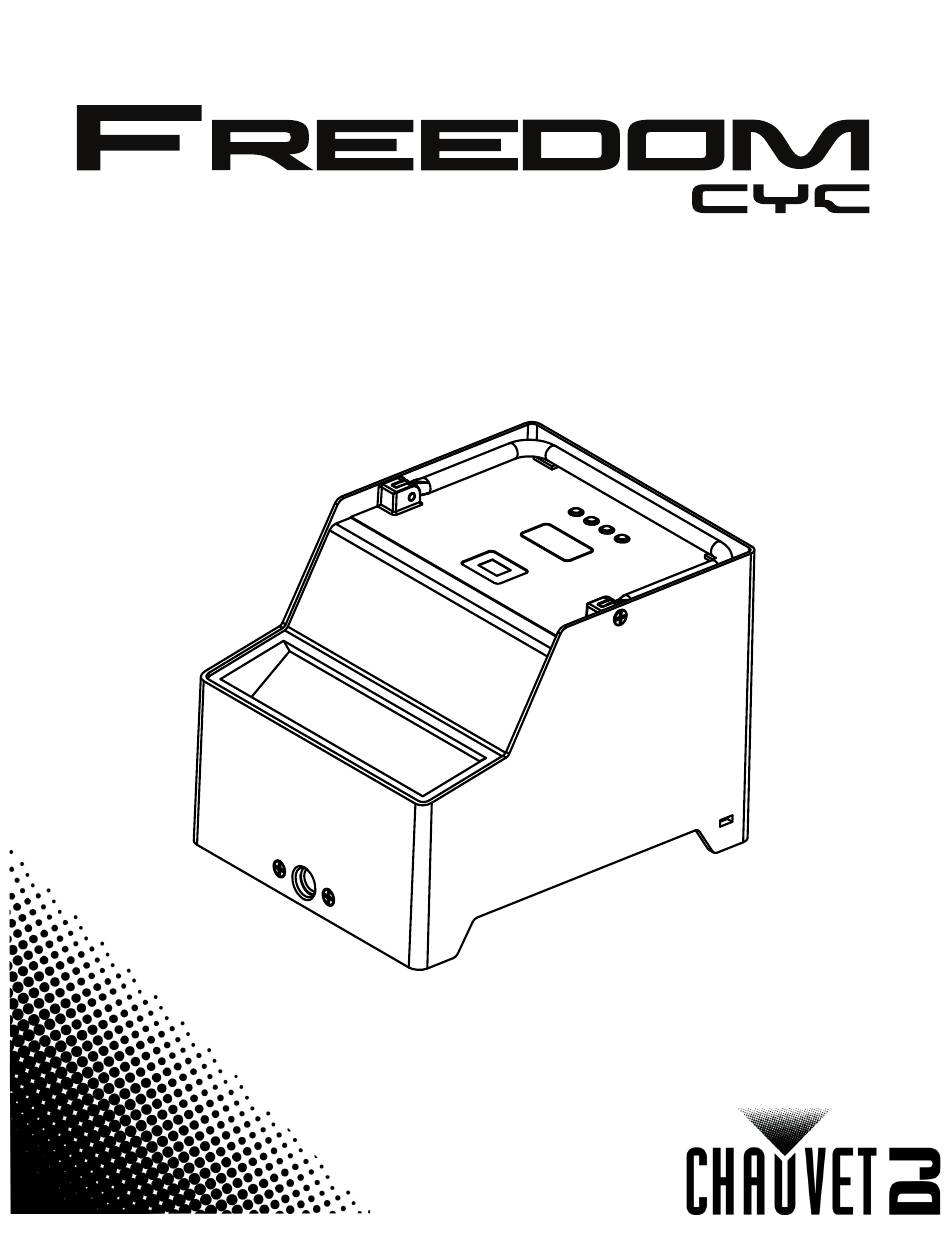

- Page 1 User Manual...
-
Page 2: Table Of Contents
White Balance ....................Dimmer Mode..................... Back Light ......................Information ......................Factory Reset..................... IRC-6 Infrared Remote Control ..............IRC-6 Operation ....................Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Freedom Cyc User Manual Rev. 2... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Freedom Cyc are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Freedom Cyc User Manual Rev. 2 Page 2 of 18... -
Page 5: Introduction
Introduction 2. Introduction Product Overview Infrared sensor Menu buttons Display screen Power switch DMX out DMX in Power in Power out Page 3 of 18 Freedom Cyc User Manual Rev. 2... -
Page 6: Product Dimensions
Introduction Product Dimensions 5.4 in (138 mm) 7.5 in 5.8 in (191.2 mm) (148.2 mm) 7.5 in 5.8 in (191.2 mm) (148.2 mm) Freedom Cyc User Manual Rev. 2 Page 4 of 18... -
Page 7: Setup
The Freedom Cyc comes with a rechargeable lithium battery for cable-free operation. Charging the Battery The battery charges whenever the Freedom Cyc’s built-in charger is plugged into a power source. If the product is plugged in and not in operation, make sure the product is turned off. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Freedom Cyc may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Selects the preset color temperature Temperature 4500K 5000K 5600K 6000K 6500K Combines red, green, blue, and Green Manual Color 000–255 white to make a custom color Mixer Blue (0–100%) White Page 7 of 18 Freedom Cyc User Manual Rev. 2... - Page 10 2 minutes of inactivity Always On Display backlight always on Fixture Hours _ _ _ _ Shows total product hours Information Version V_._ Shows installed software version Factory Reset to factory defaults Reset Freedom Cyc User Manual Rev. 2 Page 8 of 18...
-
Page 11: Wireless Dmx Linking
Use <UP> or <DOWN> to select the DMX channel: 4Ch, 6Ch, or 10Ch. Press <ENTER>. Wireless DMX Configuration The Freedom Cyc offers wireless control of two or more products with a single DMX controller. To set up the D-Fi 2.4 GHz transceiver, follow the instructions below. For the transmitting product: Press <MENU>... -
Page 12: Dmx Channel Assignments And Values
052 101 Dimmer speed mode off Dimmer Speed Mode 102 152 Dimmer speed mode 1 (fast) 153 203 Dimmer speed mode 2 (medium) 204 255 Dimmer speed mode 3 (slow) Freedom Cyc User Manual Rev. 2 Page 10 of 18... -
Page 13: 6Ch
DMX signals from the controller. Static Mode Fixed Color To run the Freedom Cyc on a static color, follow the instructions below: Press <MENU> repeatedly to select Static from the menu list. Press <ENTER>. -
Page 14: Automatic Programs
Press <ENTER>. Product information (Fixture Hours and Version) will be displayed. Factory Reset To restore the Freedom Cyc to factory default settings, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Factory Reset. 3. Press <ENTER>. -
Page 15: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Freedom Cyc is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Press <MENU> repeatedly until IR Setting shows on the display. Press <ENTER> to accept. -
Page 16: Master/Slave Mode
The Master/Slave mode allows a single Freedom Cyc product (the “master”) to control the actions of one or more Freedom Cyc products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in either Stand-Alone mode or with the IRC-6, while the slave (receiver) products will be set to operate in Slave mode. -
Page 17: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 15 of 18 Freedom Cyc User Manual Rev. 2... -
Page 18: Technical Specifications
Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range Wireless, 3-pin XLR 4, 6, or 10 channels Ordering Product Name Item Code UPC Number Freedom Cyc 03081589 781462219376 Freedom Cyc User Manual Rev. 2 Page 16 of 18... -
Page 19: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 17 of 18 Freedom Cyc User Manual Rev. 2... -
Page 20: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, the UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of the record. Freedom Cyc User Manual Rev. 2 Page 18 of 18...
