Dynacord RCM-810 Engineering Data Sheet

Engineering Data Sheet

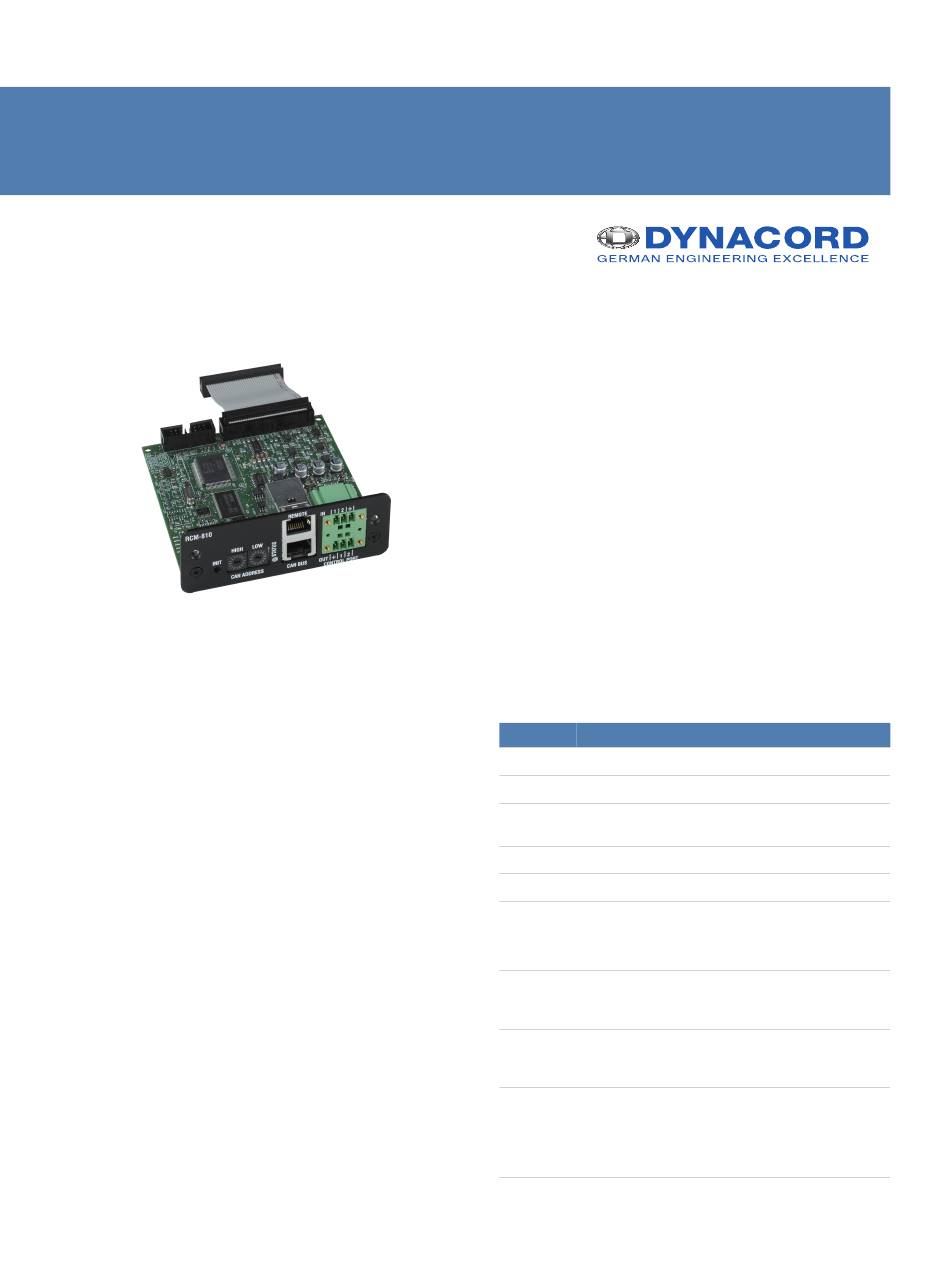

RCM-810
The RCM-810 Remote Control Module is an optional
module for supervision and remote control of power
amplifiers.
RCM-810 modules allow the amplifiers to be
integrated into a remote control network with up to
100 devices. Up to 250 amplifiers can be used in an
IRIS-Net project when multiple networks are used.
Apart from the network port, the RCM-810 also offers
freely programmable control inputs and control
outputs.
Additional RCM-810 features:
• Control/Configuration:
• Power ON/OFF
• Power On Delay
• Mute
• Control Inputs/Outputs
Supervision/Status indicators:
• Load supervision for each amplifier channel
• Output VU
• Protect
• Limit
• Pilot tone
• Temperature
• Gain/Sensitivity
• Control Inputs/Outputs
For further details please check the owner's manual of
the amplifier which the RCM-810 will be used in.
▪ Enable powerful control and supervision capabilities
▪ Integrate up to 100 devices in each remote control
network, 250 with multiple networks
▪ Freely programmable control inputs and outputs
▪ Load-monitoring for each channel
▪ EN 54-16: 2008
Parts included
Quantity Components
1 RCM-810
1 Ribbon cable (34-pole, 60 mm)
1 Euroblock connector 6-pole (Phoenix, MC 1,5/6-
STF-3,81, 1827745, F.01U.104.179)
4 Screw M3x10, combination TORX
1 Data sheet
TORX is a registered trademarks of Acument Intellectual Properties, LLC.

Technical specifications

Remote control and software
Maximum configuration
Amplifier supervision
IRIS-Net, Multiple PCs possible,
MS Windows 2000, XP, Vista, 7,
8
250 Amplifiers in total, 100
Amplifiers per CAN bus, 1000
meter cable run
Operation mode, temperature,
output voltage and current,
impedance of connected
speakers, protection mode
status, pilot tone detection
