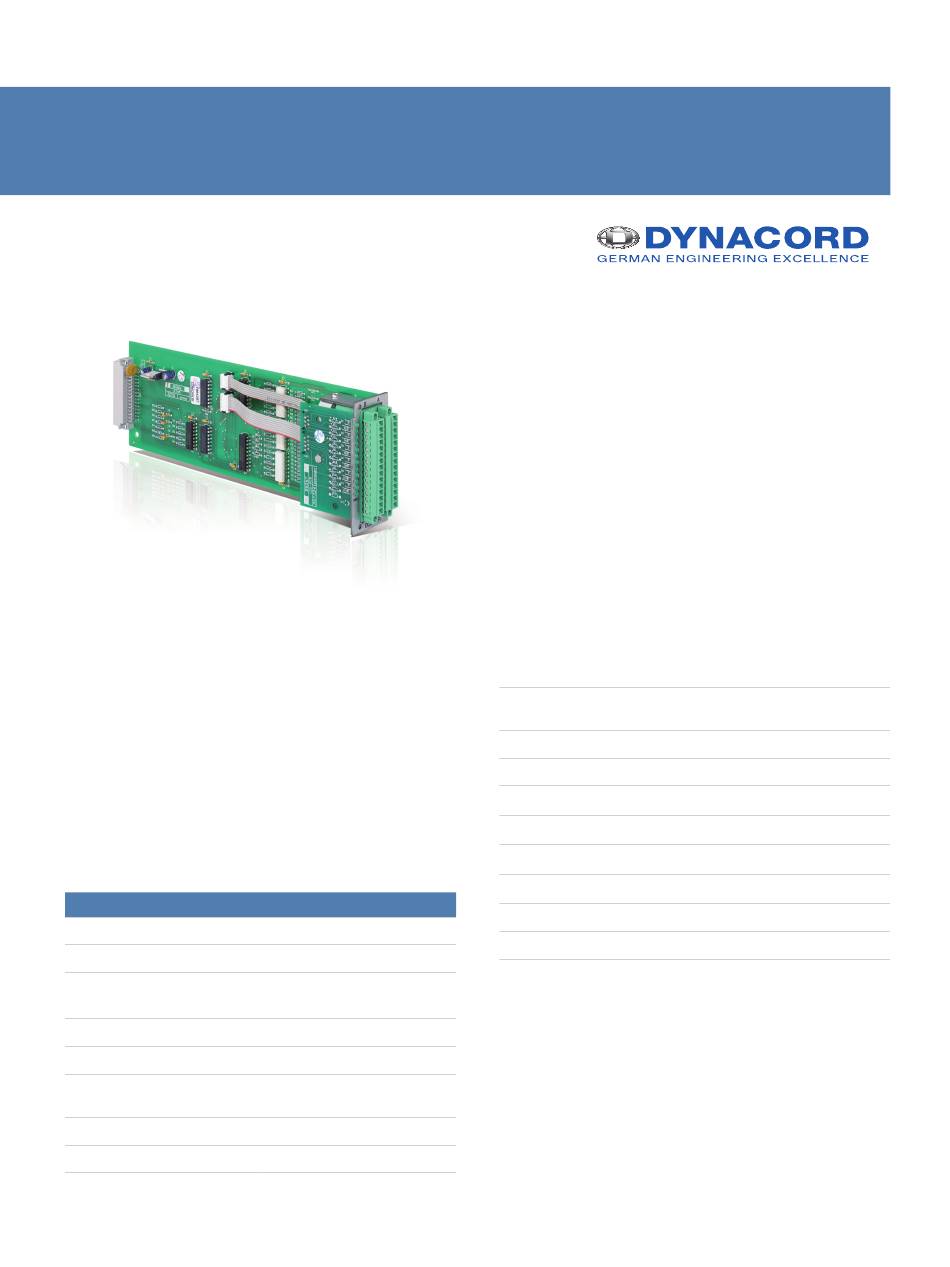

Dynacord DCS 412R Quick Start Manual

Dynacord | DCS 412R
DCS 412R
www.dynacord.com
The module is fitted on the back of the DCS 400 rack
plug-in board. The module is used to connect control
cables, buttons, switches, and sensors in order to
check their status (on, off) in the PROMATRIX 8000
system.
Additional properties:
• Pluggable connection terminals with screwed flange
for all inputs
• A maximum of 5 DCS 412R modules can be cascaded

Parts included

No. Component
1 DCS 412R
2 Plug, 15-pin (Phoenix MC 1.5/15-STF-3.81 - 1827839)

Technical specifications

Operating voltage
Operating current, all inputs open
• Standby/Idle/
Announcement/Alert
Electromagnetical environment
Operating temperature
24 V DC, -10%/+30%
24 V, 83 mA, 2.00 W
E1, E2, E3
-5 °C to 45 °C
▪ 12 inputs
▪ The polarity for each input can be freely selected
▪ Each input is isolated by separating the wire
jumpers
▪ Pluggable connection terminals for power supply to
the buttons, contacts, and sensors
Product dimensions (Width by
Height by Depth)
Net weight
Input level
• Input voltage for off (Low)
• Input voltage for on (High)
• Input current at U = 24 V
_IN
• Input voltage max.
Output source 24 V
• Output current max.
37.5 by 80.6 by 245 mm
175 g
U < ±5 V
_IN
U_ > ±10 V
IN
I = 4.8 mA
_IN
U_ = ±31 V
IN max
90 mA
