BOLERO40 Series Promotion Kit

3. GETTING STARTED

3.1 PROMOTION-KIT hardware set up

This chapter explains how to connect and set-up this PROMOTION-KIT.
Installing the PROMOTION-KIT in five steps:
1. Unpack the PROMOTION-KIT.
2. Connect the BOLERO45/41 unit to the control-box and PC and apply power.
3. Power up the control-box and charge the internal backup battery of the device.
4. Install the FALCOM Workbench software and start the evaluation of the BOLERO45/41 device
5. Access the online documentation from the FALCOM website using the login data available in the info
sheet supplied with PROMOTION-KIT.

3.2 Unpacking the PROMOTION-KIT

Unpack the contents as shown in the figure below. There is no external antenna included in the
PROMOTION-KIT, as the BOLERO45/41 has also internal GSM/GGNSS antennas.
3.2.1

Connecting BOLERO45/41 to the control-box

1. Before starting initial operation, switch all switches on the Control-Box to "OFF" (factory default
setting) and make sure the device has a clear view of the sky so that the satellite signals can be
received.
2. Plug in the 8pin double row connector of cable of the device to the cable with 8pin double row
connector of the control-box. To unplug, press the "lever" on the back of this connector and pull it out.
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.

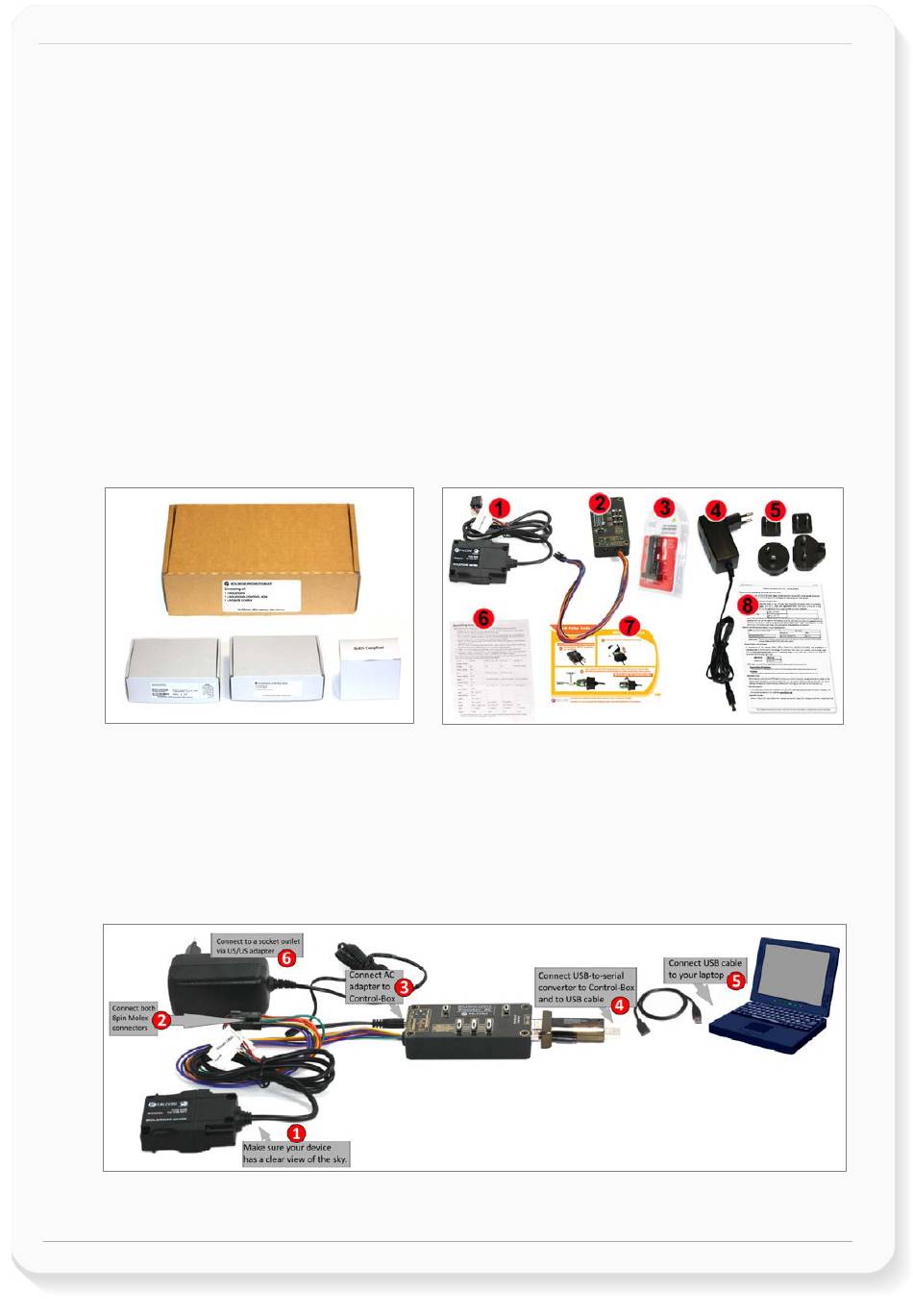

Figure 2: Boxes inside the PROMOTION-KIT and the contents of the kit.
Figure 4: Connecting PROMOTION-KIT to BOLERO45/41 and PC
