START
HERE

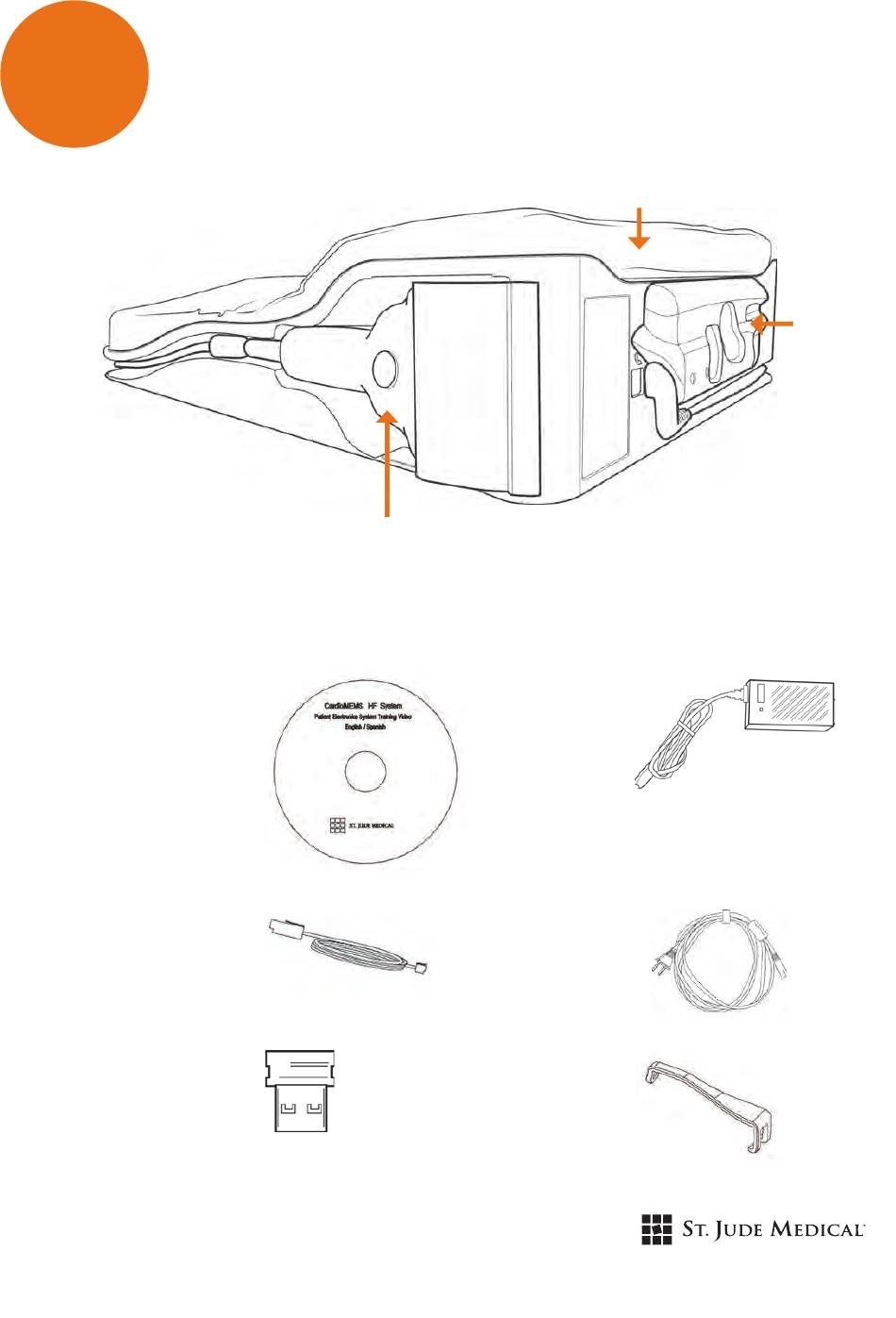

COMPONENTS:
WATCH FIRST:
Patient
Electronics System Training
Video DVD or visit
sjm.com/usingcardiomems
Telephone Cable
Wi-Fi
Adapter
™
CardioMEMS
Patient Electronics System
™
QUICK START GUIDE
Handheld Unit
Pillow
Power Adapter
Power Cable
Power Cord Clip
Rear Panel
Electronics
