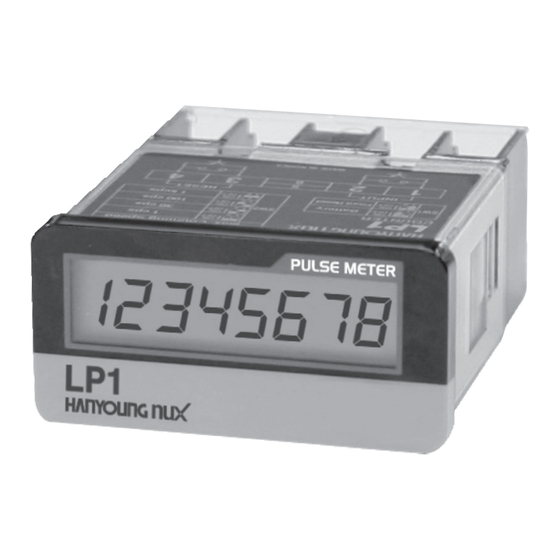

HANYOUNG NUX LP1 Instruction Manual

Pulse meter
LP1
INSTRUCTION MANUAL
Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time
Safety information
Before using the product, please read the safety information thoroughly and use it properly.Alerts declared in
the manual are classified to Danger, Warning and Caution by their criticality
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
DANGER
To prevent electric shock while it is running, put to earth with the fixed screw of the unit and do not
touch the radiator panel since it is very hot. Do not touch or contact the input/output terminals
because they cause electric shock.
WARNING
• Do not decompose, modify, revise or repair this product. This may cause malfunction, electric
shock or fire.
• It you use the product with methods other than specified by the manufacturer, there may be bodily
injuries or property damages.
• Because this product uses the Lithium battery as the internal power, please do not
disassemble or burn the product.
CAUTION
• The contents of this manual may be changed without prior notification.
• Before using the product you have purchased, check to make sure that it is exactly what you ordered.
• Check to make sure that there is no damage or abnormality of the product during delivery.
• Do not use this product at any place with corrosive(especially noxious gas or ammonia) or flammable gas.
• Do not use this product at any place with direct vibration or impact.
• Do not use this product at any place with liquid, oil, medical substances, dust, salt or iron contents.
(Pollution level 1 or 2)
• Do not polish this product with substances such as alcohol or benzene.
• Do not use this product at any place with excessive induction trouble, static electricity or magnetic noise.
• Do not use this product at any place with possible thermal accumulation due to direct sunlight
or heat radiation.
• Install this product at place under 2,000m in altitude.
• When the product gets wet, the inspection is essential because there is danger of an electric leakage or fire.
• Install the circuit breaker or switch at near place for convenient use.
• For the continuous and safe use of this product, the periodical maintenance is recommended.
• Some parts of this product have limited life span, and others are changed by their usage.
• The warranty period for this product including parts is one year if this product is properly used.
THINGS TO CONSIDER WHEN HANDLING THE BATTERY
• Because Lithium battery is built in, please avoid the places such as the explosive place
or flammable place when scraping the product.
• Please do not charge, short, disassemble, modify and heat the product. Also, please
do not throw into the fire and etc.
• Pay attention to the + polarity and – polarity of lithium battery.
• Please do not solder battery.
• When disuse battery, please insulate it with the tape or etc
• Please avoid direct sun light, high temperature and high humidity places when keep it.
• When you change lithium battery, please do not mingle new one with used or other type.
Specialty
• Mini LCD pulse meter
• Various functions available (rps, rpm, 0.1 rpm, Hz, 0.1 Hz)
• 5 digits display value function in front display
• No need to charge the internal battery externally
• Reusage function according to the battery replacement
• Non voltage and free voltage input
• IP66 protective structure (front side)
Function explanation
• RESET Function
It is used to change the operation mode and initialize the measuring value and the display value.
• HOLD function
Display the display value on the LCD after fixing the present measured value, regardless of
the signal input
• rpm function
Display the rotation per minute by measuring the rotation speed of the rotation axis
• rps function
Display the rotation per second by measuring the rotation speed of the rotation axis,
• Hz function
Measure the AC Line's frequency and display.
• 0.1 rpm function
After measuring the rotation speed of the rotation axis, display the rotation per minute from
0.1 to 1000.0 rpm
• 0.1 Hz function
Measure the AC Line's frequency and display it from 0.1 to 100.0 Hz
HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Nam-gu, Incheon, Korea
HEAD OFFICE
TEL : (82-32)876-4697 FAX : (82-32)876-4696
http://www.hynux.com
PT. HANYOUNG ELECTRONIC INDONESIA
JL.CEMPAKA BLOK F 16 NO.02 DELTA SILICON II INDUSTRIAL PARK
INDONESIA
LIPPO CIKARANG CICAU, CIKARANG PUSAT, BEKASI INDONESIA 17550
FACTORY
TEL : 62-21-8911-8120~4 FAX : 62-21-8911-8126
Specification
Model
Power supply
Indication method
Battery life
Input type
Input conditions
HOLD Input type
Measuring degree
rpm
0.1 rpm
Measuring
rps
range
Hz
0.1 Hz
External setting switch
External connection
Insulation resistance
Dielectric strength
Durability
Vibration
Malfunction
Durability
Shock
Malfunction
Ambient temperature
Storage temperature
Ambient humidity
Weight
※ In order to increase the battery life, please refer to the conditions above when replacing the battery
Dimension and panel cutout
Connection diagram
※ INA : Non voltage input
※ INB : Voltage input
•DC Voltage input (4.5-30 V d.c)
•AC Voltage input (AC Line frequency, 3-30 V a.c)
※ INC : Voltage input
•AC Voltage Input (AC line frequency, 30-240 V a.c.)
Please use only 1 input terminal among
3 input terminals like INA, INB, INC.
3
LP1
No power supply (built-in battery, exchangeable battery)
LCD Indication method, Zero blanking (letter height: 8.7mm)
Approximately more than 3 years (about 25 ℃)
Non voltage input (INA) Voltage input (INB) Voltage input (INC)
Remaining voltage when
* AC voltage input
disconnected : Max. 0.5 V
3-30 V AC
Max impedance when
* DC voltage input
disconnected : Max. 10 kΩ
High: 4.5-30 V DC
Min impedance when
Low 0-2 V DC
connected : Min. 500 kΩ
Non voltage input
± 0.1% rdg ±1 dig
1 ~ 10000 rpm
0.1 ~ 1000.0 rpm
1 ~ 1000 rps
1 ~ 1000 Hz
0.1 ~ 100.0 Hz
SW1-1 : rps / rpm, SW1-2 : ×1 / ×0.1
SW2-1 : RESET, SW2-2 : (rps, rpm) / Hz
terminal block (5 pin)
Min. 100 MΩ (500 V d.c mega standard, between the electric conduction
terminal and exposed non-charging metal part)
2000 V a.c (50 / 60 ㎐ for 1 min, between the electric conduction
terminal and exposed non-charging metal part)
10-55 Hz (1 minute cycle) double amplitude, each direction of X, Y, Z for 1 hour
10 - 55 ㎐ double amplitude, each direction of x, y, z for 10 min
300 ㎨ each direction of x, y, z 3 times
100 ㎨ each direction of x, y, z 3 times
-10 ~ 55 ℃ (no dew condensation, no icing)
-20 ~ 65 ℃ (no dew condensation, no icing)
35 ~ 85 % R.H.
approx 46 g (excluded the weight of box)
ME0301K150825
·AC voltage input
30-240 V AC
