Task Lighting T-C-RGB180 Installation Manual page 4

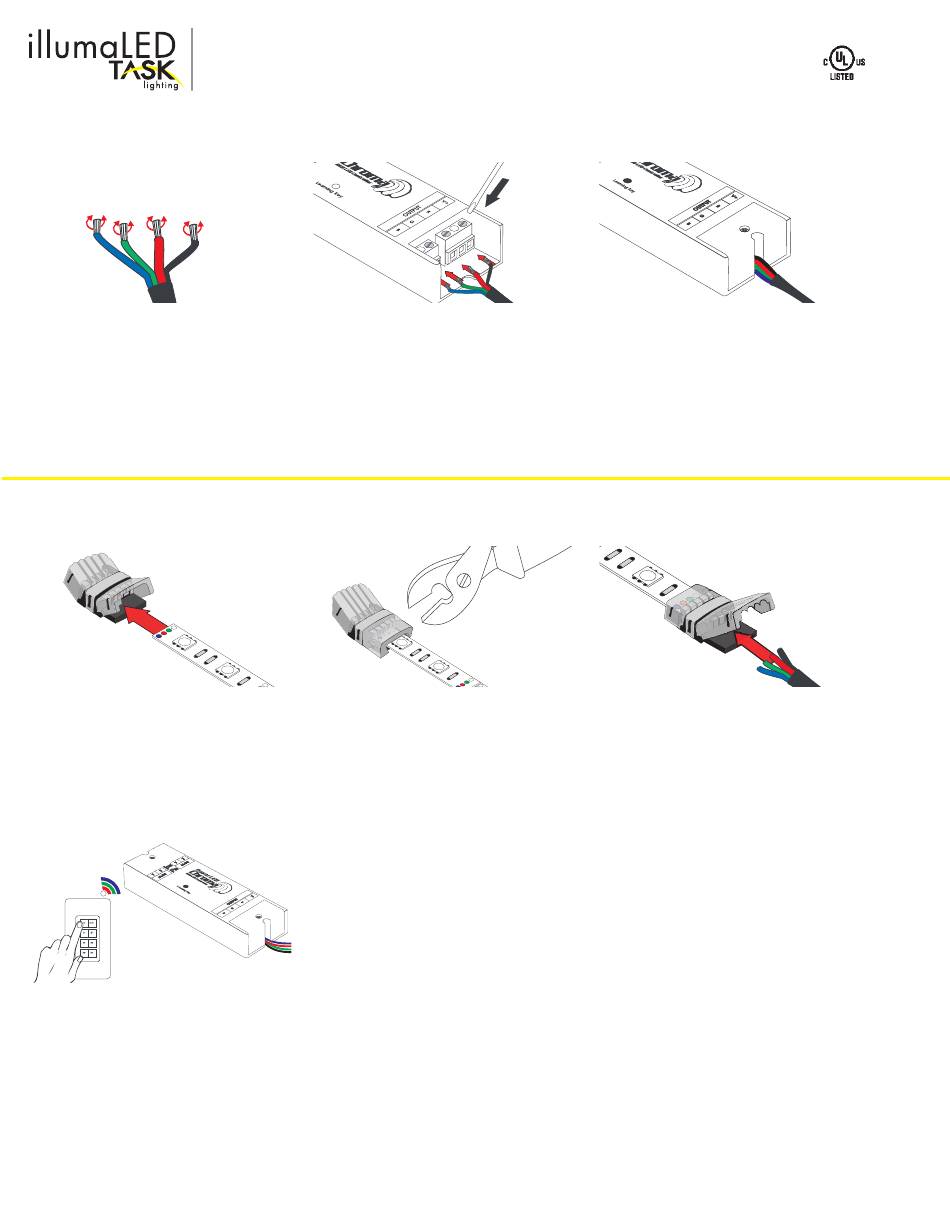

Wiring Receiver to RGB Tape Light Guide
Step 1: Connect Wire to Receiver
1.
Strip 1-1/2" black sheathing from
RGB 4-wire Connection Wire. Strip 1/4"
insulation from each of the 4 colored
wires. Twist each wire and fold in half.
Step 2: Connect Wire to RGB Tape Light
1.
Peel back 1/2" of adhesive protector
from back of RGB Tape Light; insert end
of Tape Light all the way into short side of
connector.
4.
Turn on 120V AC to Power Supply and
pair Receiver to Controller.
Customer Service: 800.445.6404 • Design Services/Technical Support: 866.848.9094 • TaskLighting.com
38
2.
Loosen the 4 terminal screws on
OUTPUT side of Receiver. Insert the 4
connector wires into their corresponding
terminals, Blue to B, Green to G, Red to R,
Black to (V+). Tighten screws.
2.
Close cap and press gently with pliers
to secure connection.
3.
Replace Receiver terminal covers,
making sure wires are not pinched
3.
Leaving insulation intact, insert the
4 colored RGB wires into corresponding
wire channel on long side of connector.
Close cap and press gently with pliers to
secure connection. The connector will cut
through insulation to make contact.
