- Page 1 RGB MULTI-COLOR TAPE LIGHT installation guide January 2019 Customer Service: 800-445-6404 www.TaskLighting.com Design Services & Tech Support: 866-848-9094 DesignAndSupport@TaskLighting.com...

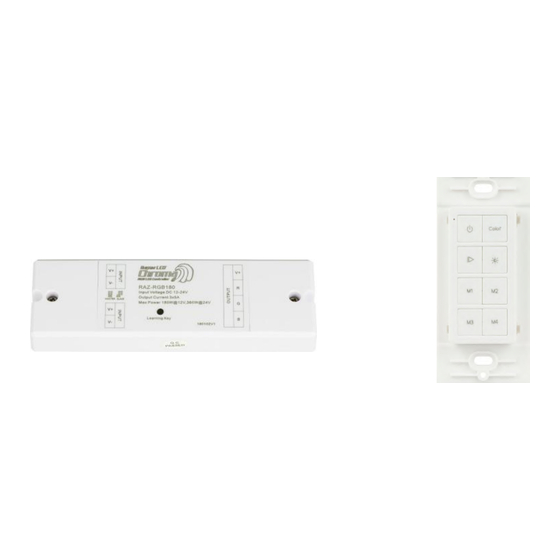

- Page 2 Chroma RGB wireless wall dimmer controller. Allows you to program up to 4 color settings or color effects T-C-RGBWC-RF-Color for 1 Zone. Use with T-C-RGB180 Receiver. Available in Almond (AL), Black (BK), Brown (BR), Gray (GR), or White (WT) Tools Needed –...
- Page 3 Wiring Power Supply to Receiver Guide Option 1: Using a Plug-in Power Supply Provide an outlet for the Plug-in Power Supply Remove terminal covers from each end Cut a length of connection wire to run Loosen terminal screws on the Female of Receiver.
- Page 4 Wiring Receiver to RGB Tape Light Guide Step 1: Connect Wire to Receiver Strip 1-1/2" black sheathing from Loosen the 4 terminal screws on Replace Receiver terminal covers, RGB 4-wire Connection Wire. Strip 1/4" OUTPUT side of Receiver. Insert the 4 making sure wires are not pinched insulation from each of the 4 colored connector wires into their corresponding...
- Page 5 RGB Tape Light Connectors Using Connectors to join cut lengths of RGB Tape Light NOTE Always cut RGB Tape Light with scissors at cut marks (located where black lines run through 4 solder points, found at 2” intervals) OPTION 1: Using L-10MM-RGB-SC Tape to Tape Splice Connectors Peel back 1/2”...
-
Page 6: Pairing Instructions
Pairing Instructions Step 2: Pairing Receiver to Controller Remove Controller from back plate, Clear the receiver by pressing and Quickly press and release the slide battery compartment open, remove holding the Learning button until the lights Learning button and, within 5 seconds, battery, and discard clear plastic tab.
