GENERAL GUIDELINES
A 15 VOLT DC DRIVER MUST BE USED! Driver must be
•
15 volt DC supplied by Task Lighting only!*
•
All wiring must meet NEC
•
18/2 solid wire is recommended from driver to fixtures and
between fixtures.
(If 18/2 solid wire is not available, 18/2 stranded wire may also be used. Tin
ends of wire if possible.)
•
A maximum of 75 Watts of Sempria
allowed on a zone.
DRIVER (15 volt DC) LOCATIONS
•
Some Drivers may be conveniently concealed within our TR Series Angle Power Strip or Lighted Power Strip.
•
A sink base or the top of a cabinet are other common driver locations.
•
Driver must be accessible.
DO NOT LOCATE DRIVER IN ATTIC.
•
PRE-WIRING
Run separate wire from Driver (15 Volt DC) location to each zone. When total wattage of Sempria
exceeds 75 Watts, use a second driver and run additional 18/2 solid wire for additional zone. Length of wire from driver to
first fixture in each zone is not to exceed 30 feet. Wiring may start at either end of fixture. (Option: separate wire may be
run from driver to each fixture.)
*Improper installation or applying improper voltage to fixture will void warranty. See tasklighting.com for full warranty info.
20
Sempria
Installation Instructions
1/2"
1/2"
5/8"
section
or local codes.
®
®
LED Lighting is
800.445.6404
LED Q & E Series
®
3/8"
Limit wire length to 30 feet from driver to lights.
•
•
Place switches on the 120 Volt side of the Driver.
•
De-burr all WireWay edges to ensure wire safety.
• If other than Task specified dimmers are desired,
call Task Lighting for instructions.
tasklighting.com
•
1/2"
1/2"
section
®
LED fixtures in zone
S -Q &E - SE R I E S-I N STALL-0 5 1 7
Advertisement
Related Manuals for Task Lighting Sempria LED Q Series
Summary of Contents for Task Lighting Sempria LED Q Series

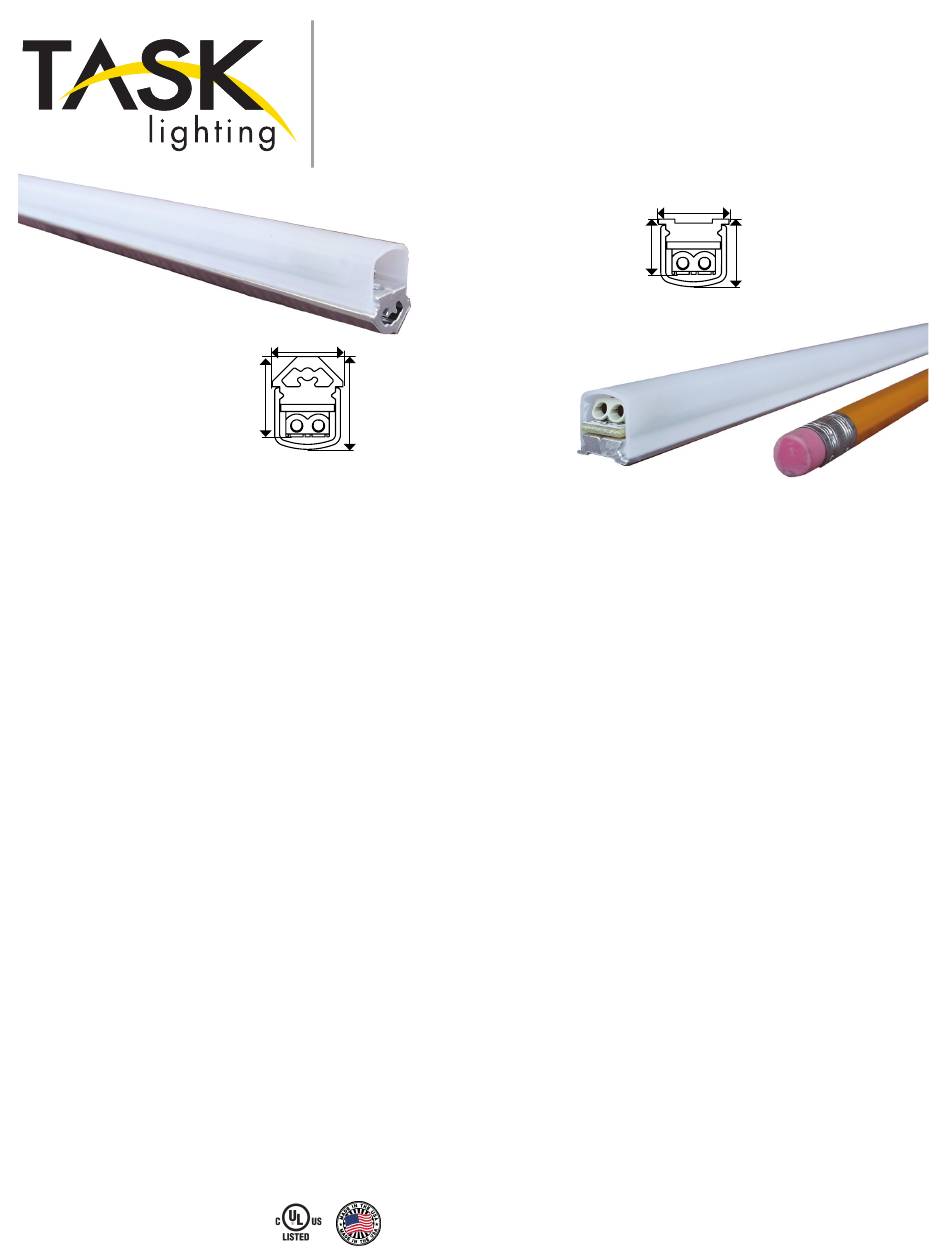

- Page 1 1/2" 1/2" 5/8" section GENERAL GUIDELINES A 15 VOLT DC DRIVER MUST BE USED! Driver must be Limit wire length to 30 feet from driver to lights. • • 15 volt DC supplied by Task Lighting only!* • Place switches on the 120 Volt side of the Driver. • All wiring must meet NEC or local codes. ® • De-burr all WireWay edges to ensure wire safety. • 18/2 solid wire is recommended from driver to fixtures and between fixtures.
