Task Lighting T-C-RGB180 Installation Manual page 3

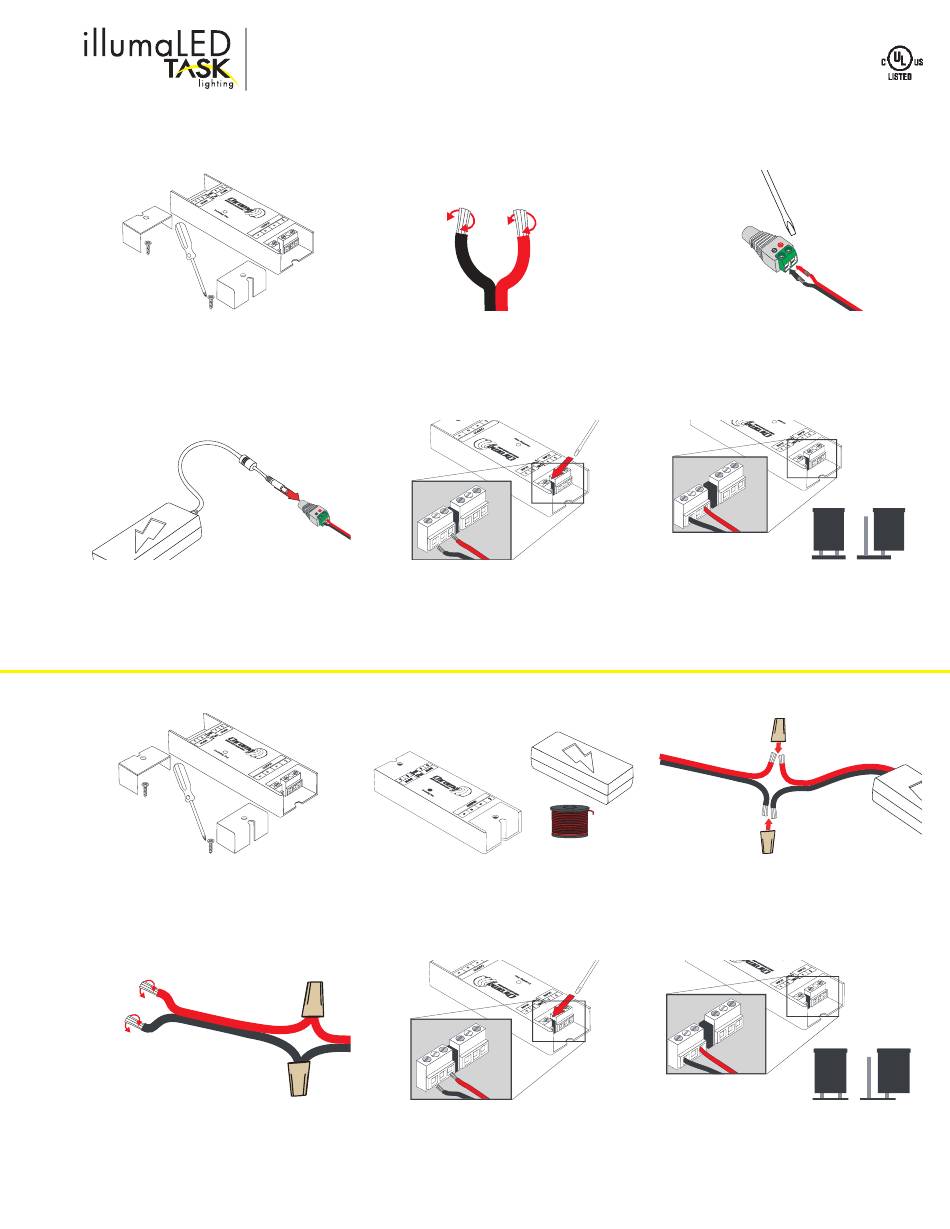

Option 1: Using a Plug-in Power Supply
Provide an outlet for the Plug-in Power Supply
1.
Remove terminal covers from each end
of Receiver.
4.
Insert the Male Plug on the Power
Supply into the Female Barrel Connector.
Option 2: Using a Hardwired Power Supply
1.
Remove terminal covers from each end
of Receiver.
4.
Strip 1/4" insulation from the other end
of connection wire, twist each wire, and
fold in half.
Customer Service: 800.445.6404 • Design Services/Technical Support: 866.848.9094 • TaskLighting.com
Wiring Power Supply to Receiver Guide
2.
Cut a length of connection wire to run
from the Power Supply to the Receiver
location. Strip 1/4" insulation from both
ends of connection wire, twist each wire,
and fold in half.
5.
Loosen left side terminal screws on the
INPUT side of the Receiver, insert other
end of connection wire into terminals,
Red to (V+), Black to (V-); tighten screws.
2.
Cut a length of connection wire to
run from the Power Supply to Receiver.
(NOTE: Power Supply comes with 24" of
wire – add extra wire for desired length.)
5.
Loosen terminal screws on the INPUT
side of Receiver, insert wires into left set
of terminals, Red to (V+), Black to (V-);
tighten screws.
3.
Loosen terminal screws on the Female
Barrel Connector included with Power
Supply. Insert one end of the wire into the
terminals, Red to (+), Black to (-); tighten
screws.
MASTER
NOTE: Make sure the Black tab between
terminals covers both pins for Master
Receiver Setting.
3.
Strip 1/2" insulation from one end
of connection wire. Use a wire nut to
connect Red wires from Power Supply and
connection wire together and a second
wire nut to connect Black wires.
NOTE: Make sure the Black tab between MASTER
terminals covers both pins for Master
Receiver Setting.
SLAVE
SLAVE
