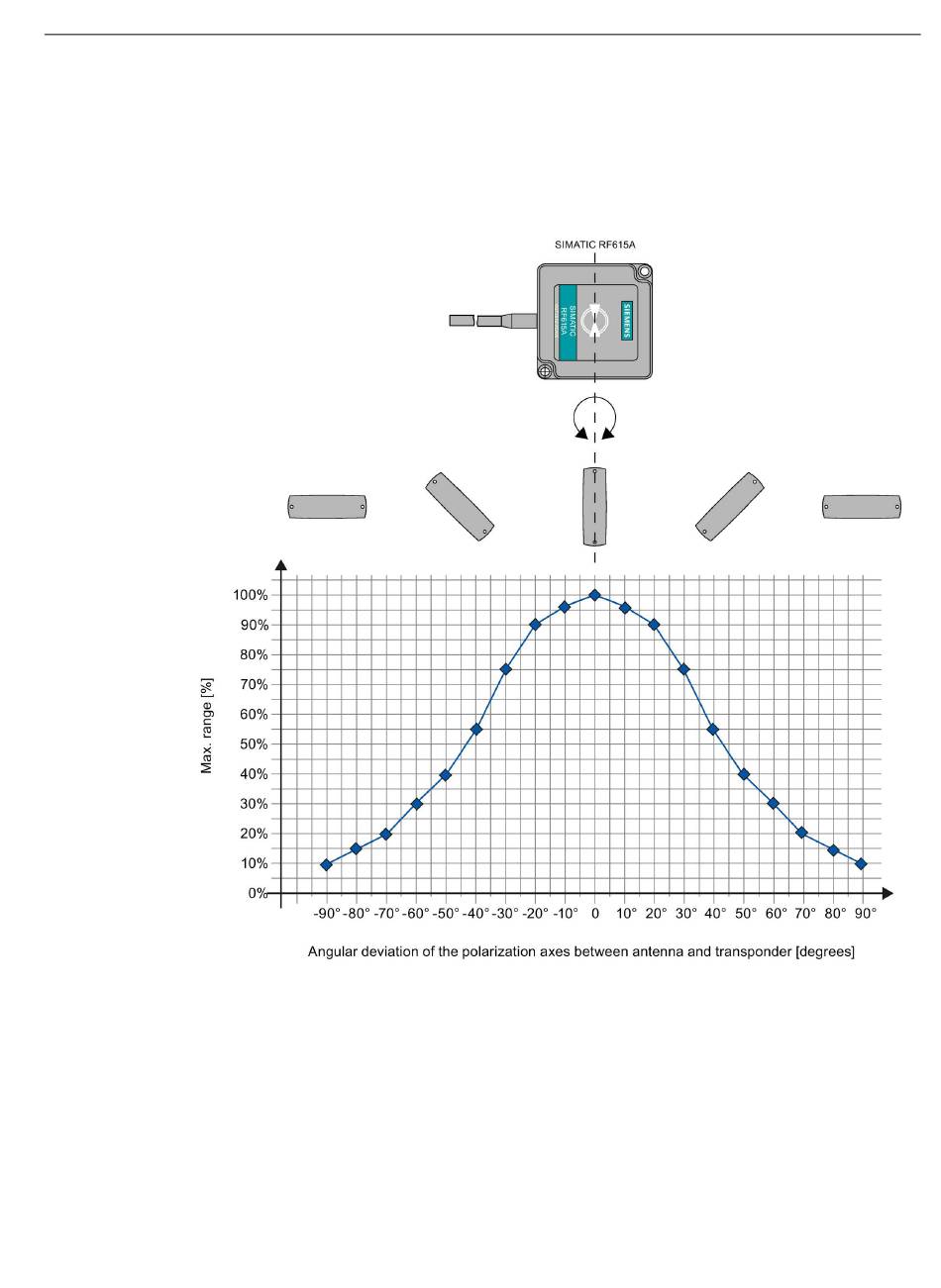

Angle deviation diagram for alignment
The following diagram shows the dependence of the following factors:
● Alignment angle of transponder to antenna
● Maximum range of antenna
Figure 6-3
SIMATIC RF615A
Operating Instructions, 09/2018, C79000-G8976-C511-01
Effect on the read/write range depending on the antenna alignment
6.1 Alignment of transponders to the antenna
Antenna patterns
17
