Summary of Contents for SeaLevel SeaLINK+16/232.RJ
- Page 1 SeaLINK+16/232.RJ User Manual Part Number 2161 www.sealevel.com PO Box 830 – Liberty, SC 29657 864.843.4343...
-
Page 2: Table Of Contents
APPENDIX D - ASYNCHRONOUS COMMUNICATIONS ..........11 APPENDIX E – SILK SCREEN – 2161 PCB ................12 APPENDIX F - COMPLIANCE NOTICES ................13 ............13 EDERAL OMMUNICATIONS OMMISSION TATEMENT WARRANTY..........................14 © Sealevel Systems, Inc. SeaLINK+16/232.RJ User Manual SL9006 Revision 8/2006... -
Page 3: Introduction

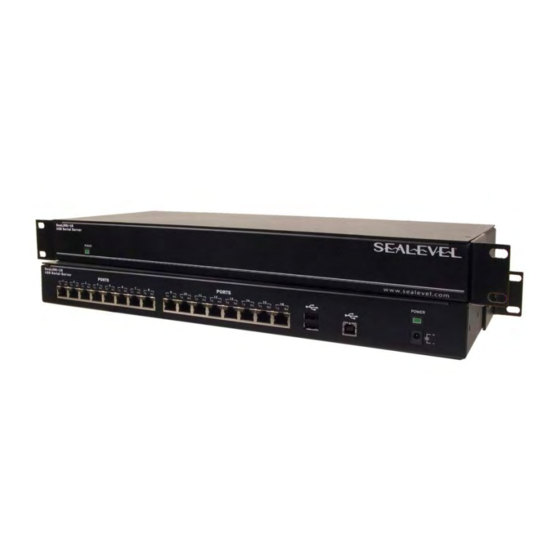

PC with 16 RS-232 Asynchronous serial ports that support TX, RX, RTS, and CTS and data rates up to 115.2K baud. The SeaLINK+16/232.RJ also provides two USB 1.1 downstream ports (fully rated at 500 mA per port) for conveniently connecting additional SeaLINK+16/232.RJ devices or other USB peripherals. -
Page 4: Before You Get Started
Before You Get Started What’s Included The SeaLINK+16/232.RJ is shipped with the following items. If any of these items is missing or damaged please contact Sealevel for replacement. Item# 2161 – SeaLINK+16/232.RJ USB 16-Port Serial Device Item# CA179 – 72” USB ‘A’ to ‘B’ Device Cable Item# TR101 –... -
Page 5: Software Installation
1. Start Windows. 2. Insert the Sealevel Systems CD in to your CD drive. 3. If ‘Auto-Start’ is enabled for this drive the software will automatically launch. Otherwise, point your browser to the ‘Index.htm’ on the root directory of the CD 4. -
Page 6: Physical Installation
1. Connect the SeaLINK+16/232.RJ to external power using the included TR101 power supply. 2. Connect the SeaLINK+16/232.RJ to a USB port with the supplied CA179 USB device cable. 3. The software drivers installed during setup will automatically recognize and configure the device. -
Page 7: Technical Description
Technical Description The SeaLINK+16/232.RJ utilizes sixteen USB UARTs. These chips feature programmable baud rate, data format, 128 byte Dual Port TX Buffer, and 384 byte Dual Port RX Buffer. The RS-232 transceivers support data rates up to 115.2K bps. Connector Pin Assignments (RJ45) -
Page 8: Optional Rj45 To Db9 Rs-232 Adapter
Optional RJ45 to DB9 RS-232 Adapter Preconfigured for use with Sealevel 2161 and 2167 serial devices, the RJ45 to DB9 modular adapter (item# RJ9P-232) converts the RJ45 RS-232 pin out to a DB9 male RS-232 serial port. Standard CAT5 patch cables can be used to extend the serial port up to 50 feet away from the RJ45 port. -
Page 9: Electrical Characteristics
4.32 cm * Width excludes rack-mount ears. Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. -
Page 10: Appendix A - Troubleshooting
Appendix A - Troubleshooting Sealevel Software is supplied with the Sealevel Systems adapter and may be used in the troubleshooting procedures. Using this software and following these simple steps can eliminate most common problems without the need to call Technical Support. -
Page 11: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp... -
Page 12: Appendix C - Electrical Interface
(ground) to determine binary logic states. The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The SeaLINK+16/232.RJ is a DTE device. © Sealevel Systems, Inc. -
Page 13: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600, N, 8, 1). © Sealevel Systems, Inc. - 11 - SeaLINK+16/232.RJ User Manual... -
Page 14: Appendix E - Silk Screen - 2161 Pcb
Appendix E – Silk Screen – 2161 PCB © Sealevel Systems, Inc. - 12 - SeaLINK+16/232.RJ User Manual... -
Page 15: Appendix F - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. - 13 - SeaLINK+16/232.RJ User Manual... -
Page 16: Warranty
(RMA) number. The Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.
