CGA0101v2 Wireless Cable Gateway Quick Installation Guide
Package Contents
CGA0101 cable modem * 1
Quick Installation Guide * 1
RJ-45 CAT 5e cable * 1

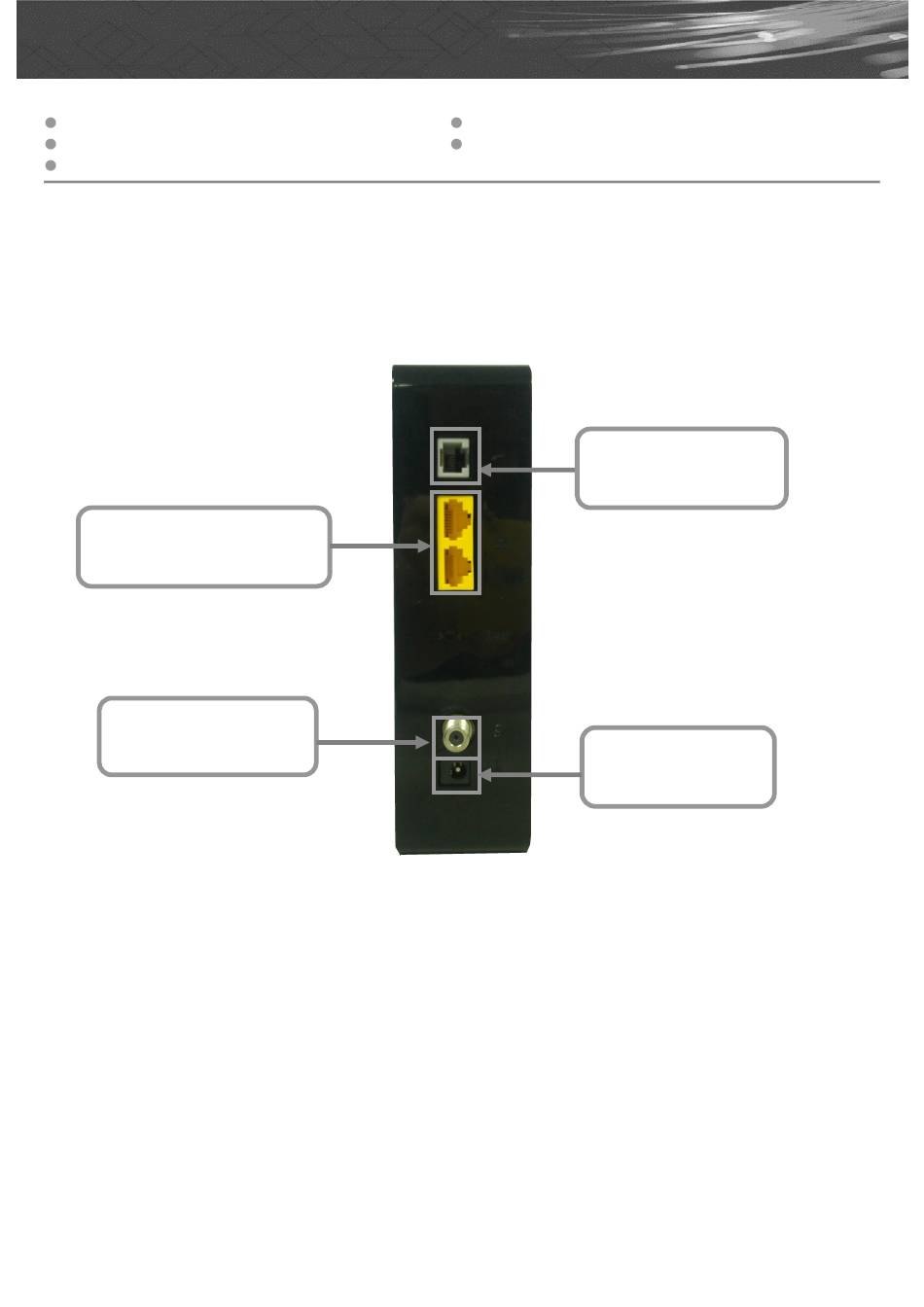

Rear Panel and Hardware Connection
This chapter describes the proper steps for connecting your cable modem. Please be sure to follow
the steps in the sequence outlined below. Failure to do so could result in improper operation or failure
of your cable modem.
Please be reminded this product CGA0101v2 is designed to stand in vertical position in order to keep
the ventilation as clear as possible. Please do not put it down horizontally.
Step 2
Connecting to a
Network Interface Cord
Step 1
Connecting
the Coaxial Cable
Step 1: Connect a cable by feeding the F-connector on the back of the cable modem. Ensure the
center conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-connector.
Secure the coaxial cable by carefully threading the outer shell of the coaxial cable connector onto the
F-connector in a clockwise direction until tight. Be careful not to over-tighten the connector or you may
damage either the connector or the cable modem.
Step 2: Connect the cable modem to IEEE 802.3 10Base-T / 802.3u 100Base-TX / 802.3ab
1000Base-T Network using a RJ-45 male-terminated Ethernet cable. This cable modem equips with
two Ethernet ports, you can connect two PCs to the cable modem at the same time if necessary.
Step 3: Connect the telephone sets to TEL. Use RJ-11 telephone line to connect TEL port on the
cable modem and telephone socket on telephone
Step 4: Connect the AC Adapter to the cable modem by inserting the barrel-shaped connector into the
mating power connector on the back of the cable modem. Exercise carefully to ensure the connectors
are properly aligned prior to insertion and ensure the two connectors engage completely. The cable
modem is shipped with an AC adapter. Remember to use only power adapter that came with the cable
12 V/1.5 A Power Adaptor * 1
Telephone cord * 1
Step 3
Connecting
the Telephone cord
Step 4
Connecting
to the AC Adapter
