THE QUALITY GOALS OF AIR CONDITIONING COME TRUE WITH THE
RECOVERY SYSTEM
TALTERI removes used air from interior and brings in fresh air. Humidity and
impurities are exhausted through thermal recovery unit that heats the filtered
ambient air cost-effectively. The fresh warm air is channelled draught-free and
noise-free into the premises in necessary quantities.
ENSURE THE QUALITY OF AIR EXCHANGE!
THE QUALITY OF INTERIOR AIR is measured by health, enjoy ability and cost-effectiveness.
AIR EXHANGE EQUIPMENT

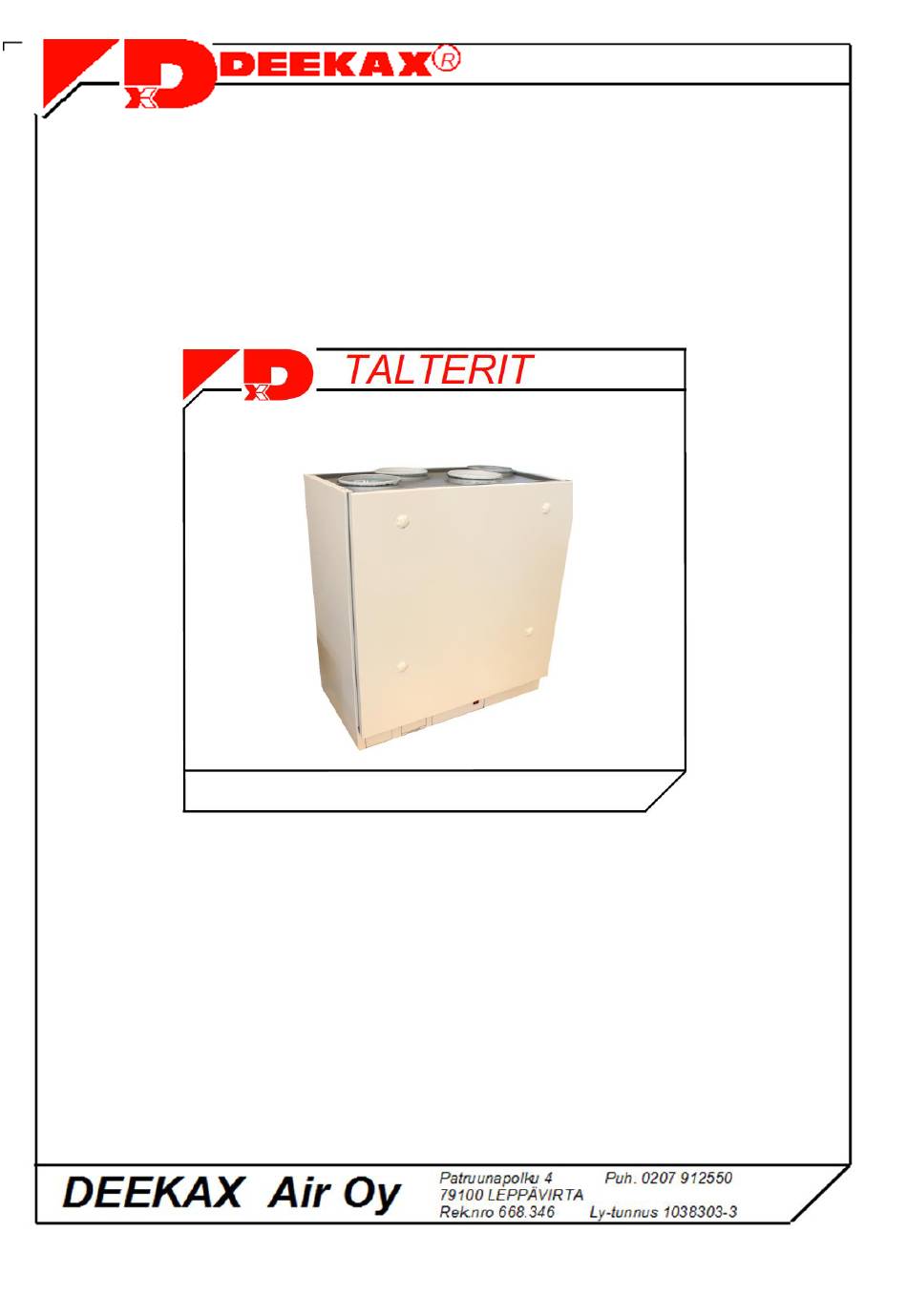

INSTALLATION AND USER MANUAL
DIVK-700DE AND DIVK-700DE VKL
QUALITY CONTROLLED
Advertisement
Summary of Contents for Deekax Talteri DIVK-700DE VKL
- Page 1 AIR EXHANGE EQUIPMENT INSTALLATION AND USER MANUAL DIVK-700DE AND DIVK-700DE VKL QUALITY CONTROLLED THE QUALITY GOALS OF AIR CONDITIONING COME TRUE WITH THE RECOVERY SYSTEM TALTERI removes used air from interior and brings in fresh air. Humidity and impurities are exhausted through thermal recovery unit that heats the filtered ambient air cost-effectively.
- Page 2 THE QUALITY OF LIFE - PURE JOY FROM INTERIOR AIR The household air exchange systems are classified into five quality categories. By the category means you can choose the level suitable for you (A= *****-stars ... E= * -star). From the quality level C = *** - you have to use air exchange system equipment and parts.
- Page 3 AIR EXCHANGE PLAN EXTRACT AIR Normal Basic operating FLOW operating situation THE AIR EXCHANGE PLAN INCLUDES ATLEAST: situation DRAWINGS-plans and sections(1:50)as well as installation Kitchen 25 dm 8 dm drawings(1:20).The drawings must include at least the location 15 “ 10 “ Bathroom of equipment and channels, measures, technical data, air flow 10 “...
-
Page 4: Channel Isolation
CHANNEL ISOLATION Since the channels are mounted to the upper base, it must be carefully isolated so that: humidity will not condensate on pipe surfaces, the air will Minimum insulation thickness for the duct, mm not freeze before heat has been stored, the heated incoming air will not Temperature difference between the freeze before it is blown into interior. -
Page 5: Electrical Connections
TALTERI DIVK-700 INSTALLATION The air exchange unit is meant for warm inner facilities. Suitable installation spots are, among others, office, dressing or household facilities and technical or warm storages. In case the temperature of the installation location is lower than room temperature, the factory settings of the appliance must be changed to obtain faultless functioning. - Page 6 Electrical diagram Electronics enclosure DIVK-700 DE VS+ GND 2A 1A 5B 4B SWITCH ON-OFF SUPPLY Electrical diagram EXHAUST Accessories DIVK-700DE VKL KEVI KEVI Control CONTROL board P ANEL POST- PRE- HEATER HEATER O VER - UN OC- P RESSU RE/ CU PIED/ E XTEND ED RE MO-...
- Page 7 Operator panel bezel removal Figure 7:Operator bezel removal With water battery (VKL) installation it should be observed - The designing must consider temperature of used water and sustainability of the heating power under rated conditions. - Water, reaching the appliance, must be pre-regulated after leaving the boiler. - Post-heating battery is switched to the appliance from inside by a respective copper or plastic hose.
- Page 8 AIRVOLUMES SUPPLY AIRF/ EXTRACT AIR F5 100% 100% tuloilma AIRFLOW AIRFLOW Value of rotating speed can be chosen for each fan individually 100% within the range of 20-100% viaEC SPEEDS submenu of the service menu on the control panel. AIRFLOW SOUNDVALUES Fan speed Input power of fans W...
- Page 9 INTRODUCTION OF THE AIR EXCHANGE BEFORE OPERATING YOUR EXCHANGE SYSTEM, MAKE SURE THAT: BASIC ADJUSTMENT OF AIRFLOW The unit alone can not produce good interior ear in case - There are no loose objects within the unit or the air the channels and fans are installed carelessly and main impeller.
- Page 10 CONDENSING WATER AND FREEZING PREVENTION When outlet air freezes, the humidity in Ito-exchanger turns into water, flows down to the condensing basin and from there, through the hose and water trap, into the open drain. During very cold weather the water would freeze into the exchanger unless the anti-freezing thermostat stops the inlet air impeller for the fusion period.
- Page 11 OPERATING PANEL USER INSTRUCTIONS MAIN DISPLAY AND ADJUSTMENT OF BLOWING SPEED CLOCK THE DISPLAY ALSO MO 13.50 SHOWS POSSIBLE SETTINGS FUNCTIONS INCREASED EFFICIENCY AND MALFUNCTIONS 60 % HUMIDITY AND CARBON CO2 850 ppm DIOXIDE VALUE FUNCTIONS SETTINGS IF SENSORS ARE INSTALLED (accessory equipment) OUT 10 INLET 18...
-
Page 12: Setup Menu
SETUP MENU M0 13.50 SETTINGS FUNCTIONS KEYBOARD 1. The push button can be uded to browse menu SETTINGS FAN SPEED upwards and chnage setting values. Fan speed adjustment 1..5 2. The push button can be uded to browse menu BACK SELECT upwards and chnage setting values. -
Page 13: Maintenance Menu
MAINTENANCE MENU KEYBOARD 1. The push button can be used to browse menu upwards and change setting values. 2. The push button can be used to browse menu upwards and change setting values. 3. Function selection and recording switch. 4. Return to previoius or main manu. M0 13.50 SETTINGS FUNCTIONS... - Page 14 SERVICE MENU IN LET AIR H O T Inlet air heating temperature 30...40c LIMIT 35 BACK SELECT SERVICE MENU INL ET AIR C O LD Inlet air cooling temperature 10...15c LIMIT 13 BACK SELECT SERVICE MENU W AS TE AIR C OLD Freeze-alert settings 0-10c LIM IT 5 BACK...
- Page 15 OPERATING PANEL USER INSTRUCTIONS 1. Operating panel The appliance is operated by the means of the operating panel that has four buttons and alphanumeric display with 2x16 indicator lights. The operation is directed according to settings inserted by the user or installer/manufacturer through the operating panel as well as according to temperature sensors and set periods.
- Page 16 3.6. Weekly clock The program selectable by the user enables to reduce/increase air exchange during selected periods of time. 5 different time periods can be programmed at the same time. Each time period can be set with one or several weekdays. 3.7.
- Page 17 5.6 Alarms to the remote control room Should any of the following issues occur, general alarm signals are sent from the HRV potential free relay to the remote control room. Issues that can trigger an alarm: Inlet air too hot or cold, danger of freezing water battery, overheating protectors or if the unit is stopped.
- Page 18 Reset the overheat temperature by pressing the switch under the threaded contact protection. Post-heating resistance Open and reset the Ask a qualified electrician to check the wiring. overheat protection working protection PLEASE REFER TO DEEKAX MAINTENANCE SERVICE FOR ANY FURTHER INFORMATION OR ASSISTANCE...
- Page 19 PURE JOY FROM INDOOR AIR! NOTES...
