Maxxus 6.1 Installation & Operating Manual page 8

Assembly

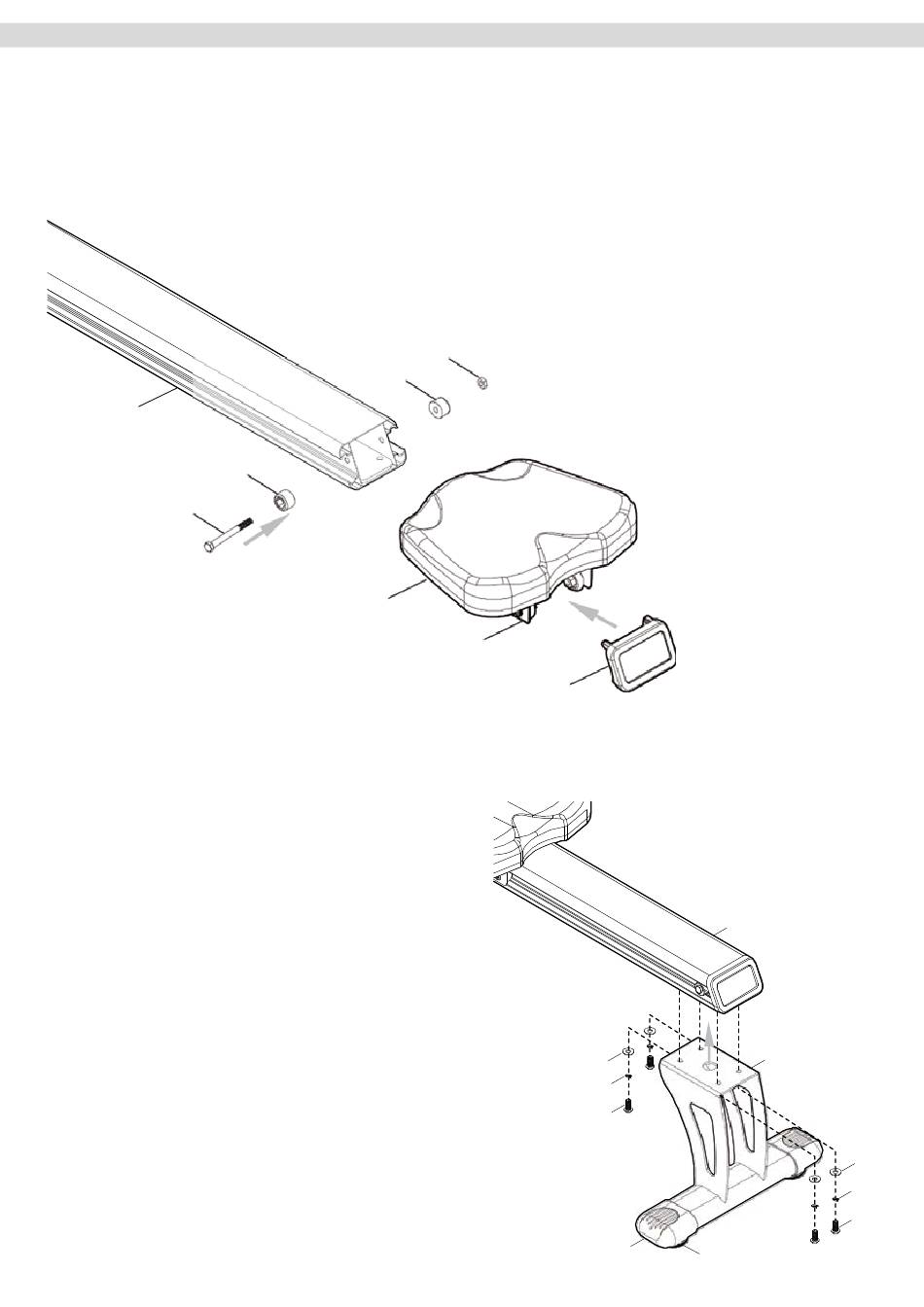

Step 2: Assembly of the Seat
From the rear, slide the joining (8) pre-assembled to the underside of the seat (13) onto the main
rowing rail (4). Make certain that the seat (13) is facing the right way. Then fix the one seat carriage
stopper (22) to the rear left and right sides the main rowing rail (4). Using a hexagon head bolt
M8x85 (123) and a nut M8 (122) on each side.
Now place the rear decoration (21) to cover the opening in the main rowing rail (4).
4
22
123
Step 3: Assembly of the Rear Stabilizer
Fix the rear stabilizer (5) to the rear of the main rowing rail (4) using four Allen head bolts M8x15
(117), four spring washers M8 (104) and four washers M8 (26).
122
22
13
8
8
21
26
104
117
20
149
4
5
26
104
117
