Maxxus 6.1 Installation & Operating Manual page 11

Assembly

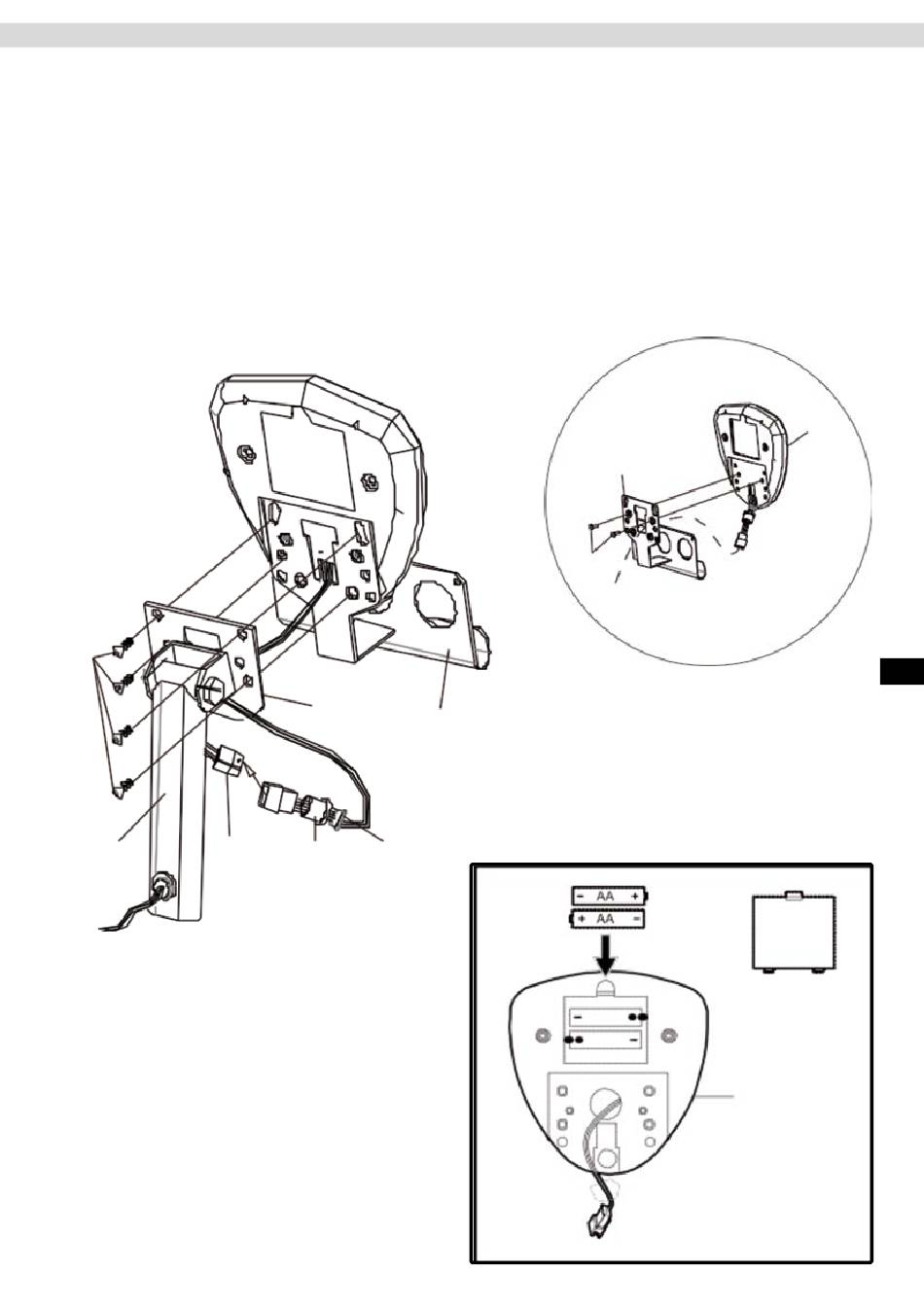

Step 6: Assembly of the Cockpit Holder and Cockpit
Loosen and remove the two countersunk screws M5x20 (151) and the four round head screws
M5x20 (152) on the back of the cockpit (84).
Feed the cockpit cable from the front through the square opening in the cockpit holder (150) – see
Fig. A. Fix the cockpit holder (150) to the cockpit (84) using by replacing the two countersunk screws
M5x20 (151).
Now connect plug (128) on the cockpit cable (127) to plug (130) on the sensor cable which is pro-
truding out of the cockpit frame (10) of the base frame (1).
Then fix cockpit (84) to the cockpit holder (150) on the cockpit frame (10) with the four round head
screws M5x20 (152) previously removed.
Push the rest of the cable back into the cockpit support frame (10).
Fig. A
84
150
151
152
ENG
11
150
10
130
127
128
Putting in the Batteries
Remove the top of the battery compartment on the
cockpit and put in two AA batteries (not included in
delivery).
Make sure that you put the batteries the right way
around as indicated in battery compartment.
