Operating Instructions - Rotary Sprinter SPO15 Operation & Maintenance Manual

To avoid personal injury and/or property damage, permit only trained personnel to op-
WARNING
erate lift. After reviewing these instructions, get familiar
with lift controls by running the lift through a few cycles before loading
vehicle on lift.
Always lift the vehicle using all four adapters. NEVER raise just one end, one
IMPORTANT
corner, or one side of vehicle.

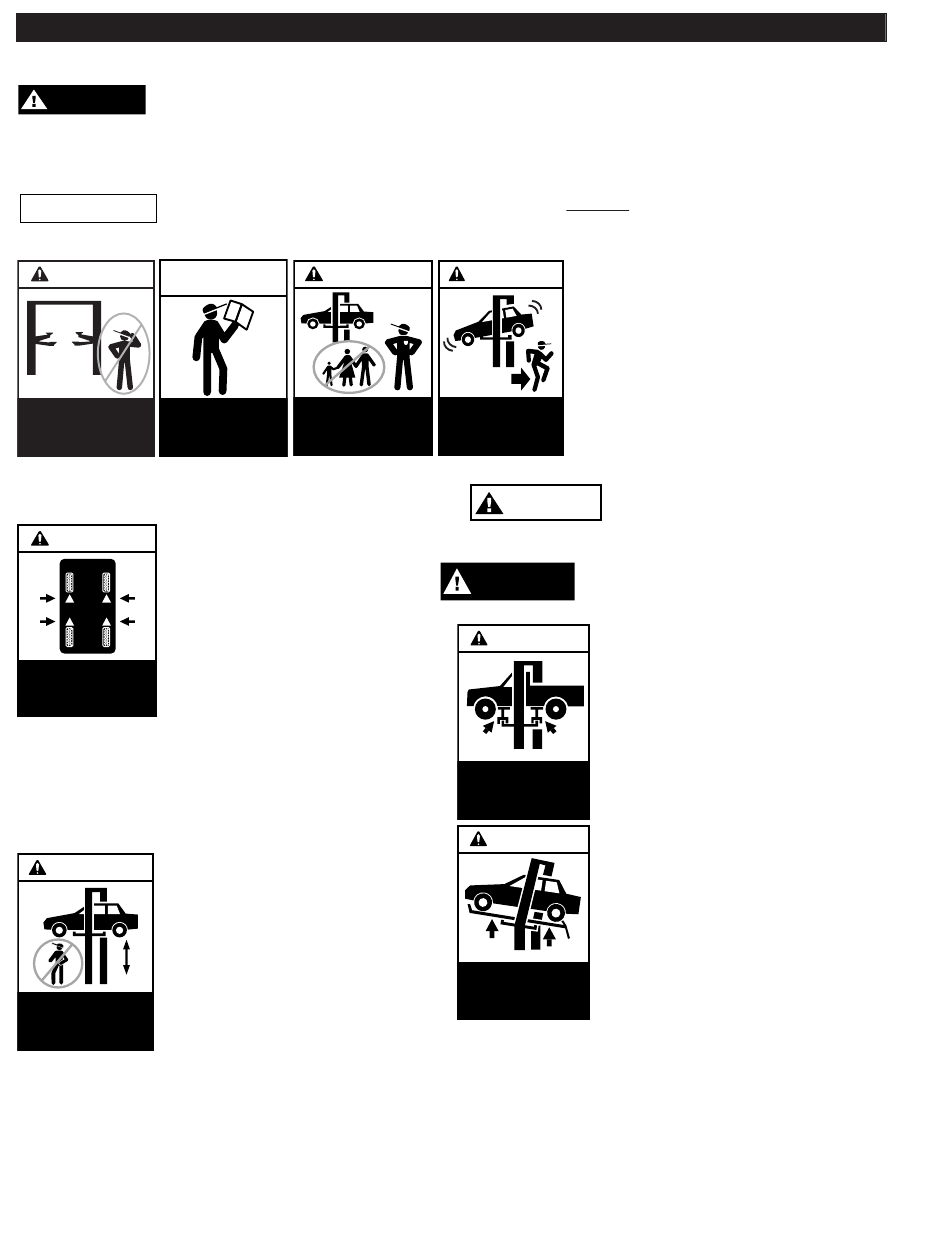

SAFETY
CAUTION
INSTRUCTIONS
? ?
?
Lift to be used Read operating
by trained operator and safety manuals
only. before using lift.
©
Observe and heed SAFETY, CAUTION, and WARNING labels
on the lift.
CAUTION
1. Lift must be fully lowered and
service bay clear of all personnel
before the vehicle is brought
on lift. Swing arms out to full
drive-thru position.
2. Spot vehicle over lift with left front
Use vehicle
wheel in proper spotting dish position,
manufacturer's
lift points.
see "positioning vehicle Fig 1.
©
3. Loading: Swing arms under vehicle and position
adapters at vehicle manufacturer's recommended
lift points, Fig. 2. Use optional adapter extensions
for under body clearance when required.
Note: Allow 2 seconds between motor
WARNING
starts. Failure to comply may cause
motor burnout.
4. To Raise Lift:
A. Push RAISE switch on power unit,
Fig. 3.
Remain clear of lift
when raising or
B. Stop before making contact with
lowering vehicle.
vehicle. Check arm restraint pins
©
for engagement. If required, slightly
move arm to allow restraint gear and
Remain clear of lift
when raising or
pawl to mesh. DO NOT hammer
lowering vehicle.
pin down as this will damage the
restraint gear teeth.
C. Raise vehicle until tires clear the
floor.
D. Stop and check adapters for secure

OPERATING INSTRUCTIONS

Surface Mounted Frame Engaging Lifts
CAUTION
Authorized personnel
only in lift area.
© ©
contact at vehicle manufacturer's
WARNING
recommended lift points.
E. Continue to raise to desired height
only if vehicle is secure on lift.
F. DO NOT go under vehicle if all
four adapters are not in secure
contact at vehicle manufacturer's
recommended lift points.
Clear area if vehicle G. Repeat complete spotting, loading
is in danger of falling.
and raising procedures if required.
©
H. Lower lift onto locking latches.
DO NOT go under vehicle if locking
CAUTION
latches are not engaged.
Before attempting to lift pickup trucks
WARNING
or other truck frame vehicles, be sure
that:
A. Vehicle frame is strong enough
CAUTION
B. Vehicle individual axle weight
Use height extenders
when necessary
to ensure
C. Adapters are in secure
good contact. ©
CAUTION
D. Vehicle is stable on lift and
E. The overhead switch bar will contact
Auxiliary adapters
may reduce
load capacity.
©
•Adapter extensions are furnished in 5" & 10" in-
crements. The stack-up height should not exceed
15". Use adapter extension combination to keep
vehicle as level as possible while it is being sup-
ported by the lift.
*Maximum operation pressure is:
2538 psi for SPO15 Sprinter (31A0 Series)
2103 psi for SPO15 Sprinter (3A0 Series)
2465 psi for SPO15 Standard
2538 psi for SPO18 Standard
4
to support it's weight and has not
been weakened by modification
or corrosion.
does not exceed one-half lift
capacity.
contact with frame at vehicle
manufacturers recommended lift
points.
neither front nor "tail" heavy.
the highest point on the vehicle.
