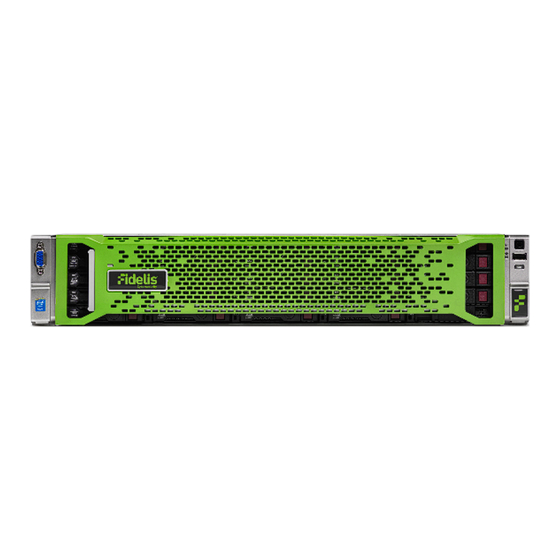

- Page 1 QUICK START GUIDE Fidelis Network™ High Capacity Collector Rev-I Collector Controller Appliances Based on HP DL360-G9 and DL380-G9 Platforms www.fidelissecurity.com...
-
Page 2: System Overview
Fidelis Network sensors (e.g., Direct, Internal, Mail and Web Sensors) and stores it for ongoing analysis. A Fidelis Collector cluster of appliances consist of one or two Collector Controller(s) and typically three or more Collector XA database nodes. - Page 3 Logical network information: IP addresses, hostnames (Section Appendix For Fidelis Network Software version 9.0.5 and later, the appliance system type (Appendix 3. Collector: Network Port and Cabling Requirements Each appliance must be connected to the various networks with appropriate cables and in some cases, transceivers.
- Page 4 Use the tables below to identify the count and type of switch ports necessary to support the number of appliances for your deployment. Admin Network The Admin Network connects the Collector Controller to the Fidelis Network sensors and K2 systems. Also connects the Collector XA nodes to the K2. Appliance Switch Port Type Qty.
- Page 5 QUICK START GUIDE Fidelis Network™ High Capacity Collector DB Network The DB Network allows communication between Collector Controller and Controller XA nodes. This network must be independent from other networks. IPv4 addressing only. Appliance Switch Port Type Qty. Collector Controller 10G...
-
Page 6: Appliance Installation
QUICK START GUIDE Fidelis Network™ High Capacity Collector Sample Network Configuration Table Network Setting Assignments Interface Admin/eth0 DB/eth1 SYNC/eth2 iLO/IMM Hostname (FQDN) collector-xa1.organization.net. Static IP Address 10.1.2.3 192.168.1.3 172.16.1.3 10.2.3.4 Subnet Mask 255.255.252.0 255.255.255.0 255.255.255.0 255.255.252.0 Gateway 10.1.2.1 Proxy Server 10.5.6.7... - Page 7 Via KVM Console: Connect a keyboard and monitor to the appliance. For Fidelis Network appliances version 9.0.5 or later, the screen on the right is displayed: 3. If you see the screen above, perform the following steps to apply the software. Otherwise skip to step 4.
-
Page 8: Cluster Setup
6. From the command line, run: sudo /FSS/bin/setup You will be prompted for the SU (fidelis) password 7. Within Setup, select Network Settings. 8. Configure the network parameters for the system and each active network interface. - Page 9 4. Register the Collector to K2. Click Register and accept the End User License Agreement (EULA). K2 will then communicate with the Collector at the specified IP address. Register Collector Controller 10Gs with the Fidelis Sensors 1. Log into the K2 GUI from a web browser.
-
Page 10: Appendix A: Network Configuration Worksheet
QUICK START GUIDE Fidelis Network™ High Capacity Collector Appendix A: Network Configuration Worksheet Collector Controller 10G (Primary) Network Setting Assignments Interface Admin/eth0 DB/eth1 iLO/IMM Hostname (FQDN) Static IP Address Subnet Mask Gateway Proxy Server DNS Servers NTP Servers Time Zone... - Page 11 QUICK START GUIDE Fidelis Network™ High Capacity Collector Collector XA4 (A) Network Setting Assignments Interface Admin/eth0 DB/eth1 SYNC/eth2 iLO/IMM Hostname (FQDN) Static IP Address Subnet Mask Gateway Proxy Server DNS Servers NTP Servers Time Zone Collector XA4 (B) Network Setting...
-
Page 12: Appendix B: System Specifications
QUICK START GUIDE Fidelis Network™ High Capacity Collector Collector XA4 (C) Network Setting Assignments Interface Admin/eth0 DB/eth1 SYNC/eth2 iLO/IMM Hostname (FQDN) Static IP Address Subnet Mask Gateway Proxy Server DNS Servers NTP Servers Time Zone Appendix B: System Specifications Collector Controller 10G... -
Page 13: Appendix C: System Types
Fidelis Network™ High Capacity Collector Appendix C: System Types For Fidelis Network Software version 9.0.5 and later, the table below shows the software to apply based on the appliance SKU. You can find the SKU in the following locations: (Note that the SKU starts with “FSS”.) •...
