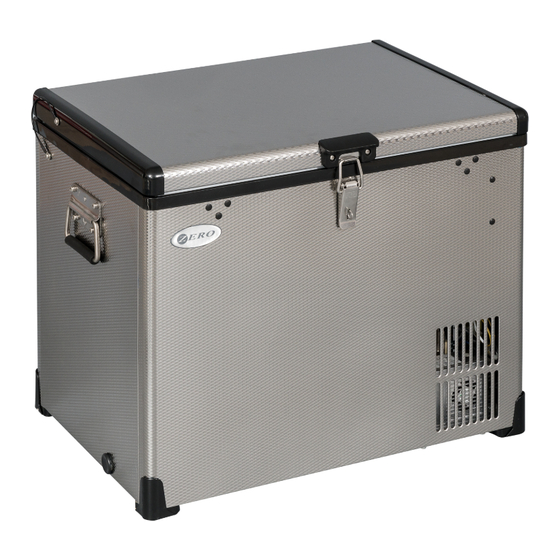

- Page 1 Refrigerator - freezer Instruction Manual Model: Z40AC/DC This booklet is to provide you with information on how to operate and care for your unit, in order to gain maximum benefit and years of trouble free use.
- Page 2 Please read this instruction manual before use Identification 1. Latch 2. Foamed door 3. Steel basket 4. Door gasket 5. Handle 6. Door inner liner 7. PVC door frame 8. Side handle 9.Door hinge 10. Feet 11. Grill 12. AC connector 13.
- Page 3 manufacturer and the seller do not accept responsibility for any damage due to incorrect electrical installation. Battery cut-out 12V/24V DC operation The control system allows for the voltage cut-out to be set to three (3) different settings depending on the environment & situation that the appliance is being operated in. Low voltage supply to the appliance can result in poor cooling performance and damage to the battery.
-
Page 4: Troubleshooting
set your temperature controller on your fridge/freezer. LED light & alarm Your freezer is fitted with an LED light to illuminate the cabinet in the dark. The LED will turn on when the door is opened and turn off when the door is closed. ... - Page 5 “OC” The thermostat is faulty. Temperature controller Sensor damaged. Contact your local dealer displays “SC ” The thermostat is faulty. Main technical parameter Model Z40AC/DC Efficient volume: 40 L Input power: Temperature 10~-22℃ range: Dimension (L x D 625x460x520...
- Page 6 ◇Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. ◇Before obtaining access to terminals, all supply circuits must be disconnected. NOTE: It’s advisable to run your unit regularly, this will prolong the life of the cooling system Circuit Diagram Z40AC/DC...
- Page 7 P O Box 426, Edenvale, 1610 Tel: 010 207 1600 www.zeroappliances.co.za...
