Summary of Contents for ETI DTR

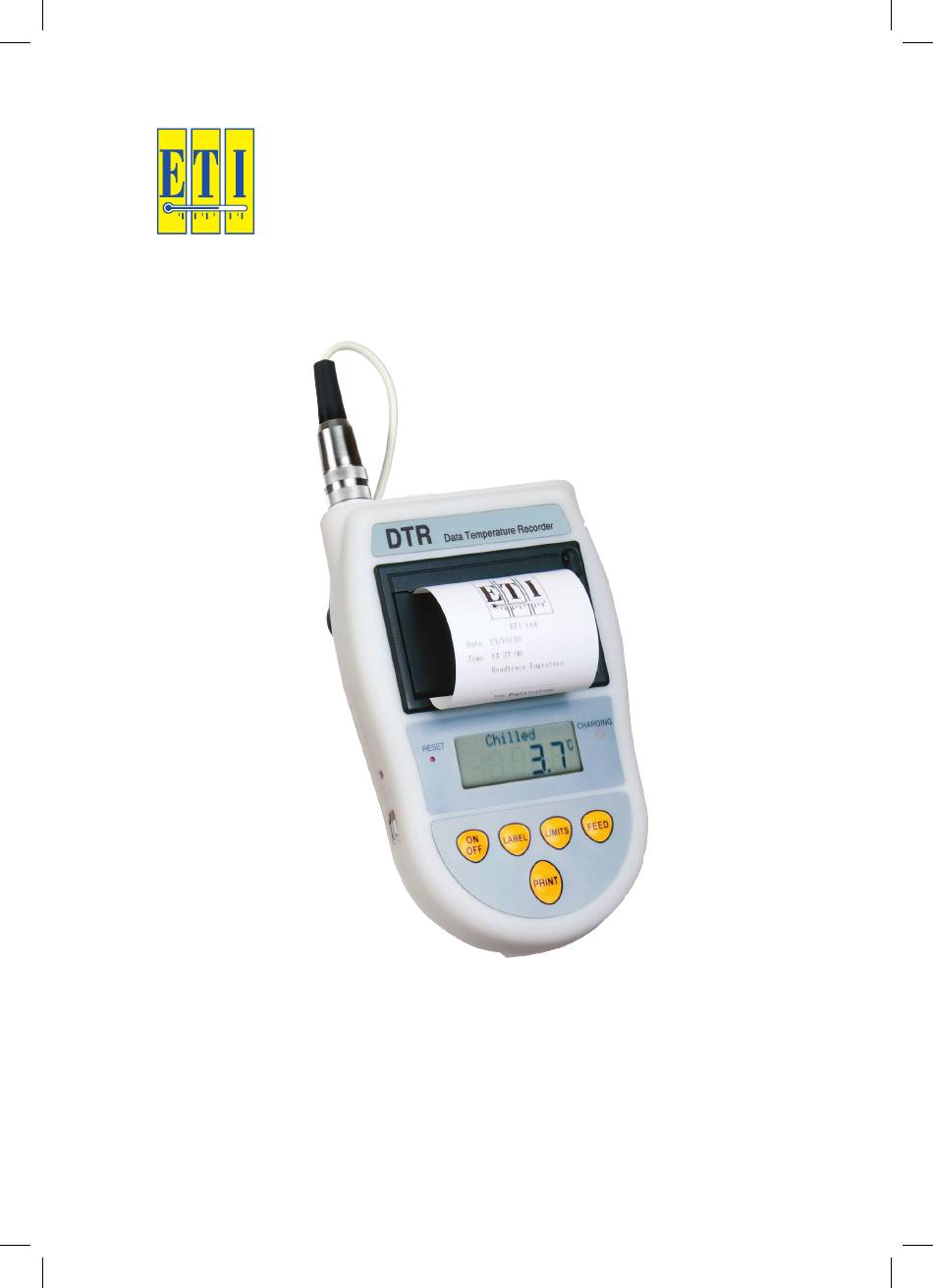

- Page 1 printing thermometer User Manual order code: 226-270...
-
Page 3: Table Of Contents
CONTENTS Introduction DTR overview probes functions display DTR operation switching the DTR on or off changing label displaying limits feeding paper printing a ticket remote button operation batteries recharging the DTR connecting devise to PC reset cleaning paper loading procedure... -
Page 4: Introduction
The DTR measures temperature across the range of -39.9 °C/-39.8 °F to 149.9 °C/301.8 °F, with a 0.1 °C resolution. When the DTR is fully charged, up to 500 prints can be achieved. Up to 2500 readings can be stored in memory. -
Page 5: Dtr Overview

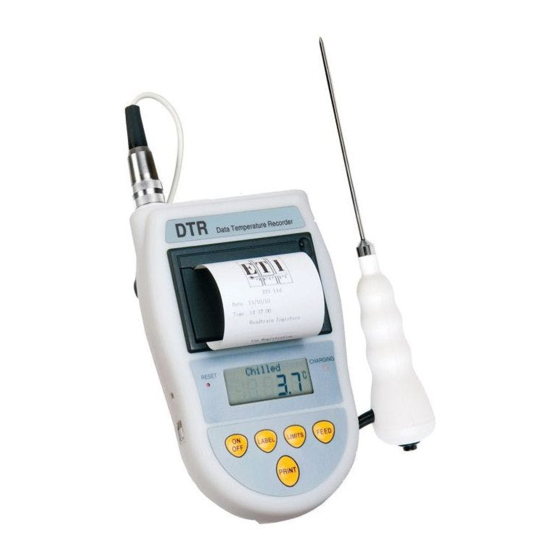

DTR OVERVIEW probe socket cover handle printer cover 'reset' button charge indicator power socket USB socket control panel... -
Page 6: Dtr Operation
DTR OPERATION SWITCHING THE DTR ON OR OFF The 'On/Off' button switches the DTR on or off. 'Switch off' will be displayed for two seconds before shut down is complete. CHANGING LABEL To scroll through the stored labels, press the 'Label' button. The selected label will be displayed on the screen. -
Page 7: Batteries
BATTERIES The DTR is fitted with a 3 cell rechargeable 3.6V NiMh battery pack. It is NOT user replaceable. Please return to the ETI Service Department for battery replacement. When the DTR power is low, the 'Lo Bat' segment of the LCD is lit. Print and feed operations are inhibited when 'Lo Bat' is indicated. -
Page 8: Paper Loading Procedure
Lift the lid until completely open (fig 3). Remove any existing paper or the plastic tube from the previous roll. The easiest way to do that is to turn the DTR upside down, so the printer contents fall out (fig 4). - Page 9 fig 1 fig 2 fig 3 fig 4 fig 5 fig 6 fig 7 fig 8...
-
Page 10: Specification
SPECIFICATION range -39.9 to 149.9 °C (-39.8 to 301.8 °F) operating temp range 5 to 50 °C & 10 to 80 %rh resolution 0.1 °C/°F accuracy ±0.5 °C battery Ni-MH 3.6V battery life approximately 500 prints from a full charge battery charging temp range 5 to 40 °C battery charging cycles... - Page 11 NOTES...
- Page 12 PLEASE NOTE: Due to regular software updates, please visit the download page on our website etiltd.com/downloads to ensure you have the latest version. manufactured by Electronic Temperature Instruments Ltd Easting Close, Worthing, West Sussex BN14 8HQ tel: 01903 202151 · fax: 01903 202445 email: sales@etiltd.com ·...
