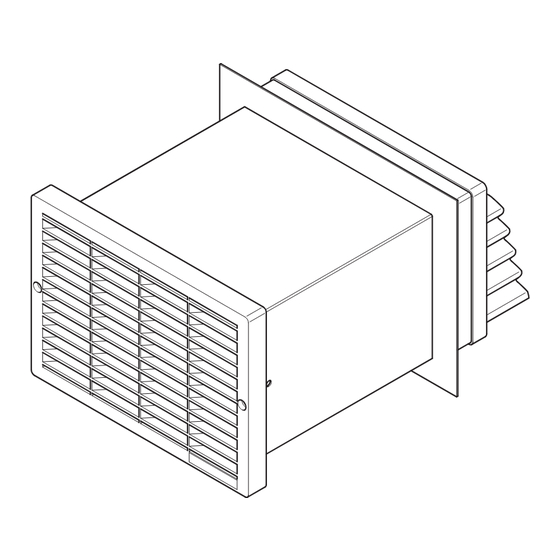

- Page 1 Please leave these instructions with the user HR100W, HR100WH & HR30W Through The Wall Heat Recovery Ventilators Installation and Servicing Instructions...
- Page 2 Warnings & Safety Information IMPORTANT SAFETY 4. The unit should be provided with a INFORMATION local double pole fused spur fitted with a 3A fuse having a contact separation of at least 3mm. PLEASE READ THESE INSTRUCTIONS 5. These units must be earthed. CAREFULLY BEFORE 6.
- Page 3 INSTALLATION GUIDANCE 1. The installer is responsible for the installation and electrical connection of the system on site. It is the responsibility of the installer to ensure that the equipment is safely and securely installed and left only when mechanically and electrically safe. 2.
-
Page 4: Table Of Contents
Contents Section Page Introduction Site Requirements Installation Electrical Maintenance Additional Information Fixing Template... -
Page 5: Introduction
1.0 Introduction Description 1. The HR100W, HR100WH and HR30W units are "through the wall” heat recovery ventilators, for use in areas such as kitchens, bathrooms and single occupancy bedrooms. 2. The units are fitted with twin impeller and heat exchanger arrangements which... -
Page 6: Site Requirements
2.0 Site Requirements Information 1. The unit is designed for installation in external walls with a thickness of up to 280mm (Fig. 3). For wall thicknesses above 280mm, an 125mm extension kit (Ref. EXT100) must be used. 2. The unit must be sited and connected by a suitably qualified person and be in accordance 125mm with current U.K. - Page 7 HIGH and LOW speeds during the daytime according to relative humidity levels. TIM2 Fig. 4 The TIM2 is an overrun timer which can also be used to control the HR100W unit via a light switch or remote sensor e.g. PIR detector. Cowl Initial Preparation Collar 1.
- Page 8 (Figs. 6 & 7). NOTE: The HR100W units have a maximum overhang on the outside of 60mm. If the overhang exceeds 60mm, the unit must be pushed inwards until the maximum overhang is achieved.
-
Page 9: Electrical
Securing Screws 7. Locate the grille on to the front of the unit and secure with the two screws provided HR100W, HR30W and HR100WH units must not be wired in (Fig. 11). conjunction with a light switch, units will fail. -
Page 10: Maintenance
5.0 Maintenance Cleaning the Unit Grille 1. In addition to removing odours, providing fresh air and recovering heat, this unit extracts airborne impurities such as dust, dirt and grease. These gradually build up and detract from the efficiency and appearance of the unit. 2. - Page 11 The unit is supplied with four, 6-month Timestrip indicators. A Timestrip is a single use self-adhesive label that once activated will turn red over 6 months. It should be used to keep track of when the filter and cell need cleaning/replacement. Using the self-adhesive backing the strip can stuck near the units controls, or in a easily visible place.
-
Page 12: Additional Information
6.0 Additional Information HR100WH 1. The HR100WH unit is fitted with an adjustable humidity sensor. 2. It is factory set to automatically switch to BOOST speed at approximately 70% Relative Humidity at 20°C. 3. To adjust this setting, remove the grille and slide out the heat exchanger (see page 9). - Page 14 NOTES:-...
- Page 15 NOTES:-...
- Page 16 370662 D 0918 A Division of Vent-Axia Limited Fleming Way, Crawley, West Sussex RH10 9YX Technical support:- 01293 526062 Fax:- 01293 539209 Internet site at:- www.vent-axia.com...
