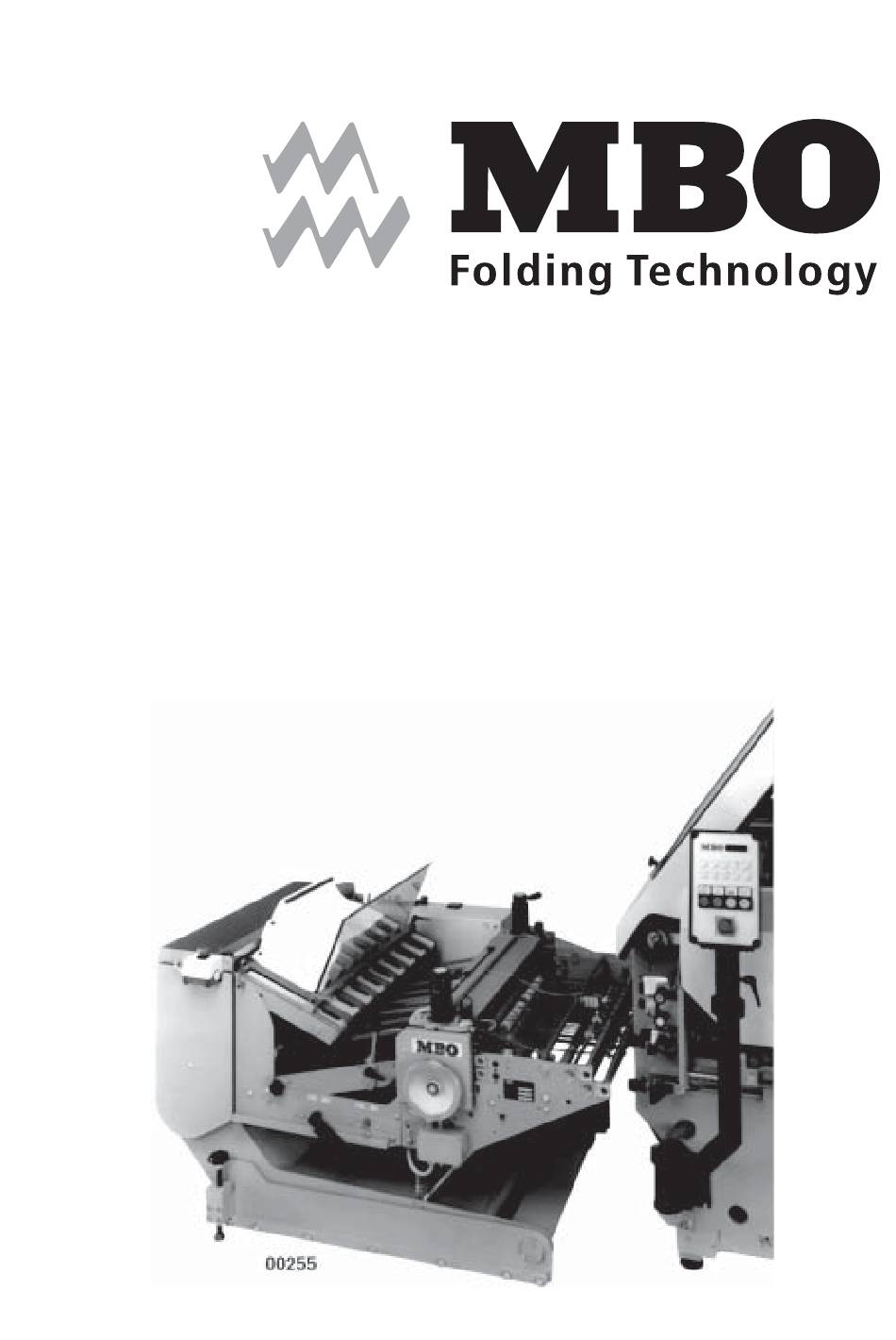

- Page 1 Operating Manual Pile Delivery FA 66 - ME with Sheet Pressing and Marking Device...
-
Page 2: Table Of Contents
Operating Manual FA 66 - ME ENG Contents Prologue ........................4 Specifications ......................5 Manufacturer ......................5 Type: Pile Delivery FA 66 - ME ................5 Technical data ......................6 1.3.1 Sizes ..............................6 Documentation: ...................... 7 Information to user / Functioning description ............. 8 BASIC SAFETY INSTRUCTIONS ................ - Page 3 Operating Manual FA 66 - ME ENG Lubrication / Cleaning ..................16 Tensioning of belts and tapes ................16 4.4.1 Chain of main drive motor ......................16 4.4.2 Drive of pressing rollers and infeed tapes ................... 17 4.4.3 Transportation tapes ........................18 Operation of the delivery ..................
-
Page 4: Prologue
Safety Regulations and Safety Instructions. This Operating Manual should also instruct you to correctly operate the MBO delivery and to comply with the Safety Regulations and to maintain it properly. Alterations reserved... -
Page 5: Specifications
Operating Manual FA 66 - ME ENG Specifications Manufacturer MBO Binder & Co., Maschinenbau Oppenweiler Grabenstrasse 4, 71570 Oppenweiler P.O. Box 1169, 71567 Oppenweiler Telefon 07191/46-0 07191/4634 Type: Pile Delivery FA 66 - ME Stand 12/2002 Page 5 Alterations reserved... -
Page 6: Technical Data
Operating Manual FA 66 - ME ENG Technical data 1.3.1 Sizes Working widht 66 cm Sheet width min. 10 cm Sheet width max. 30 cm Pile height 30 cm Infeed height 40 cm min.; 95 cm max. Pressure 2000 kp. Speed 15-180 m/Min. -
Page 7: Documentation
Operating Manual FA 66 - ME ENG Documentation: Customer: Machine configuration: Pile Delivery FA 66 - ME Machine - No Serial - No.: Electrical data: Wiring diagram no. Folding unit: Feeder: Delivery: Operating voltage (V/Hz): Control voltage (V/A): Control voltage (V/A): Total rated current (A): Fuese at power supply (A): Conformity Certificate:... -
Page 8: Information To User / Functioning Description
Operating Manual FA 66 - ME ENG Information to user / Functioning description The pile delivery FA 66-ME is a mobile separate unit with own drive for pressing and horizontal piling of single products in one- or multiple-up production. When running multiple-up production the streams may be splitted and therefore be taken off much easier. -
Page 9: Basic Safety Instructions
Safety at working place - destined use of the delivery 2.2.1 MBO deliveries correspond to their stipulated Safety Technical Requirement at the time of their shipment. Therefore, any moveable and rotating parts are covered with protective hoods and are mechanically and electrically interlocked to such an extent as to not unreasonably detract from the operation. - Page 10 Operating Manual FA 66 - ME ENG 2.2.10 Never use any tools which are not in a perfect condition and make sure that no tools are left on the machine after completion of settings and maintenance. Tools which fall into the machine may cause serious injuries and damages.
-
Page 11: Safety At Working Place - Destined Use Of The Folding Machine
Operating Manual FA 66 - ME ENG Safety at working place - destined use of the folding machine 2.3.1 Check List of machine 2.3.2 Checklist of protective hoods P os. De signa tion Function contro V isua l contro Re sult Re m a rks P rotec tions agains t c on- tac t, infeed - M ark ing dev... -
Page 12: Transportation / Erection / Installation
Operating Manual FA 66 - ME ENG Transportation / Erection / Installation This part of the Operating Manual is directed to the competent service personnel and internal authorized personnel. Transportation The FA 66-ME is delivered on a pallet or in a crate. Move it to its final destination as close as possible. -
Page 13: Erection
Operating Manual FA 66 - ME ENG Erection Place the FA 66-ME to the exit of the folding machine and secure it with supporting screws 1 against displacement. > NOTICE < The centre of sheet should match with the centre of the delivery! Set the table 3 into an ergonomically favourable pick-up height through the crank 2. -
Page 14: Maintenance
Operating Manual FA 66 - ME ENG Maintenance This part is directed to the competent service personnel or internal authorized personnel. > DANGER < No cleanings nor maintenance works should be carried out unless the electrical supply is isolated. Always turn OFF the isolator on the control cabinett and secure it with a safety lock ! Spare parts procurement >... -
Page 15: Lubrication
Operating Manual FA 66 - ME ENG Lubrication Clean bearings of marking axles 1 weekly, and provide them with a slight touch of oil. Lubricate the nipple 2 behind the handwheel 3 with a slight touch of oil monthly. Clean drive chains 4 and 5 and provide a slight touch of oil monthly. -
Page 16: Lubrication / Cleaning
Operating Manual FA 66 - ME ENG Lubrication / Cleaning > NOTICE < Generally, the machine should be cleaned after each job, particularly moveable parts which have been changed due to change of sheet size, because heavy dust may cause reduction of function. -
Page 17: Drive Of Pressing Rollers And Infeed Tapes
Operating Manual FA 66 - ME ENG 4.4.2 Drive of pressing rollers and infeed tapes Loosen the screw 1 with nut 2 at the inside, tension the Poly V-belt 3 with belt tensioner 4. Prior you tension the drive belt 5 with tensioning roller 6, loosen the screw 7 with nut 8 at the inside. -
Page 18: Transportation Tapes
Operating Manual FA 66 - ME ENG 4.4.3 Transportation tapes The internal transport tapes 1 are automatically tensioned with springs, the external transport tapes 2 are individually tensioned with tensioning lever 3. Retension, if necessary: loosen the screw 4 and twist tensioning lever 3. -
Page 19: Operation Of The Delivery
Operating Manual FA 66 - ME ENG Operation of the delivery Control panel Green button for machine START Red button for machine STOP Red mushroom button for EMERGENCY STOP Blue button for SHEET INFEED Potentiometre for infinite speed regulation of infeed tapes and pressing rollers Potentiometre for infinite speed regulation of tapes after the pressing rollers Selector switch to control the tapes after the pressing rollers a) continuous running, e.g. -
Page 20: Infeed Table
Operating Manual FA 66 - ME ENG Infeed table 5.2.1 Infeed tapes The products coming from the folding machine are taken over by the round belts 1. Positioning on tape rollers 2 and 3: loosen the screw 4 and move the guide 5. -
Page 21: Multiple - Up Production
Operating Manual FA 66 - ME ENG 5.2.2 Multiple - up production If signatures in the folding machine are cut in two - or three - up productions: Place the individual groups of round belts 1, 2 and 3 crosswise to eachother or spread them! Change the position of round belts only laterally at infeed or exit of the infeed... -
Page 22: Marking Device
Operating Manual FA 66 - ME ENG 5.2.3 Marking device >NOTICE< This device enables you to exactly remove batches of a desired quantity to eachother 1, to grant a precise removal of equal batches. The desired quantity of product of each batch is entered into the batch counter IVO 8 (see enclosed Operating Manual IVO). -
Page 23: Pressing Unit
In case of a product being „ too thick „ the microswitches 8 will turn off the complete machine. >DANGER< Please bear in mind that the machine will only turn off if the FA 66-ME is connected with an MBO machine! Stand 12/2002 Page 23 Alterations reserved... -
Page 24: Collating Table
Operating Manual FA 66 - ME ENG Collating table After leaving the pressing rollers 1 the folded product falls between the external 2 and internal 3 transport tapes. The falling height is adjustable between 1 and 3 for various products: loosen the clamping lever 4 and turn with crank 5 at square 6. - Page 25 Operating Manual FA 66 - ME ENG Continuation Please note that a wide shingle shape (A) will create a tight shingle stream (B). Set the speeds of 10 and 11 to such an extend that transport tapes will run continuously at production. Two-up production: Use both photocells! Stand 12/2002...
-
Page 26: Collecting Table
Operating Manual FA 66 - ME ENG Collecting table The signatures are transported onto the collecting table 2 around the deflector drum 1. Set the sheet stop 3 in accordance to the width of product: loosen both clamping levers 4 and read off the measures at scale 5. -
Page 27: Final Remarks
Operating Manual FA 66 - ME ENG Final remarks You have now reached the end of this Operating Manual. We hope that you understood everything, if so, then our efforts to prepare this Manual have been worthwhile. Of course, we accept comments and wish to thank you for any suggestions to improve it. Even we are not perfect! We wish you much pleasure and success with this machine. - Page 28 Änderungen vorbehalten Binder & CO. Telefon 07191 / 46-0 Alterations reserved Postfach 1169 Telefax 07191 / 4634 sous reserve de modifications D - 71567 Oppenweiler http://www.mbo-folder.com Stand 12/2002 H/N...
