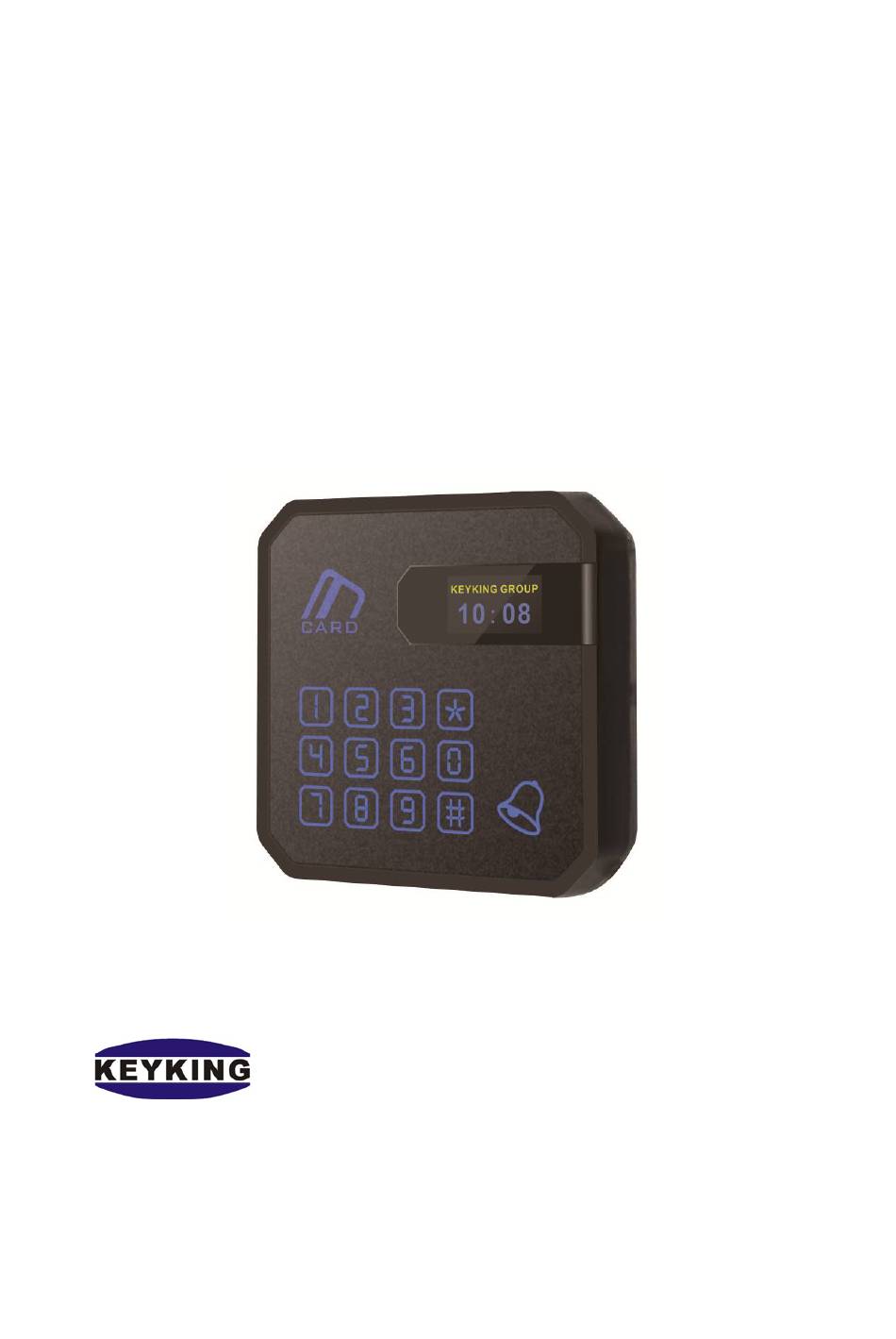

- Page 1 Proximity Keypads Reader Operation Manual Model: 6630KE/6630KDE KEYKING GROUP LIMITED...
-
Page 2: Table Of Contents
6630KE Keypads Reader Operation Manual (1.00) Index Chapter 1: Summarize ........................2 1.1 Summarize .......................... 2 System Characteristics ....................3 Chapter 2: 6630KE System Instructions: ..................4 6630KE surface: ......................4 LED: ..........................4 6630KE Wiring: ......................5 Mode setting: ......................... 5 2.3.1... -
Page 3: Chapter 1: Summarize
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Chapter 1: Summarize 1.1 Summarize Reader Model Define: 66 1 1 K D E E: EM; Proximity; 125KHz H: HID Compatible; 125KHz U: CPU, Mifare, RC; 13.56MHz B: TAP_B, 2cd China ID; 13.56MHz C: TAP_C, Hongkong Metro;... -
Page 4: System Characteristics
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) 1.2 System Characteristics Technical Parameters: Power: 12 VDC ± 10%, 200mA Dimensions: 90mm (H) x 90mm (W) x 22mm (D) Weight: 200 grams Operating Frequency: 125KHZ: E: EM;... -
Page 5: Chapter 2: 6630Ke System Instructions
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Chapter 2: 6630KE System Instructions: 2.1 6630KE surface: Company J1: Connector Clock J2: Wiegand 26/34 J5: RS485 Door Bell Sync Clcok interface Keypads J4: Door Bell Back light LED (Blue&Green) LED: LED: ... -
Page 6: 6630Ke Wiring
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) 2.3 6630KE Wiring: J1: Connector DIP: Wiegand 26/34 J5: RS485 Sync Clcok interface J4: Door Bell J2: Wiring Connector (Definition of wiring): Mark Definition Note +12V Power Supply Data 1 Data 0 LED control, when it was shorted with GND, then LED will change the color. -
Page 7: Wiegand 26 Bits
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) 2.3.1 Wiegand 26 Bits Please keep DIP Switch on the OFF, then the reader will output Wiegand 26 bits format. 2.3.2 Wiegand 34 Bits Please keep DIP Switch on the ON, then the reader will output Wiegand 34 bits format. -
Page 8: Chapter 3: Keypads Output
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Chapter 3: Keypads Output 3.1 Keypad Message The reader will processes the keypad entries in the reader and then transmits the data to the host system via the Wiegand data lines. The reader outputs each key as an ASCII encoded hexadecimal digit. -
Page 9: Chapter 4: Installation
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Chapter 4: Installation Installation Procedure: Install on the wall (Based on Internal Back Box) Install a Reader Back Box inside wall: Determine an appropriate mounting position for the reader. Install a single or double standard electrical box (86*86mm) inside wall. If mounting to a metal surface, drill two 7/64 (.109) inch holes and use the enclosed self tapping screws for... -
Page 10: Install On The Wall (Based On Surface Back Box)
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Install on the wall (Based on Surface Back Box) Install a Reader Back Box on wall: Determine an appropriate mounting position for the reader. Install a single or double standard electrical box (86*86mm) on the wall using 4 screws. -
Page 11: Install On The Wall (Surface, Without Back Box)
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Set the JUMPER (Output mode): select W26 or W34 bits output of reader. Mount the reader body: Mount the reader body to the Electronic Box (Reader Back Box) using the two screws which isф4, 30mm length. - Page 12 KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Plug the Green Connector: Plug the green connector to the reader socket. Set the JUMPER (Output mode): select W26 or W34 bits output of reader. Mount the reader body: Mount the reader body to the Electronic Box (Reader Back Box) using the two screws which isф4, 30mm length.
-
Page 13: Notes
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Notes Cable Notes: Category 5 Cable type: with shield. Same Ground: the reader and Host must have the same ground. If you use different power supply for reader and controller, please connect the GND of reader to GND of controller. -
Page 14: Chapter 5: Configuaration
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) Chapter 5: Configuaration 5.1 Application: 6630KX Reader Display Setting 6630KX Reader Display Setting: It is an application to configure 6630 series reader & TC419. Before you run this application, please make sure you have a converter (IC-232) for 6630 Series reader. -
Page 15: Rs485 To Rs232 Converter
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) which should be on the display. Title +Text: 3 lines Text. You can type "1st Line Text", "2cd Line Text", and "3rd line Text" (Left, Center, Right) which should be on the display. -
Page 16: Configuration Steps
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) 5.3 Configuration Steps When you do configuration, need no give power supply to reader. The reader will get power from USB of PC. Before you connect the cable, please make sure you already take out the power supply for 6630 series reader. -
Page 17: Change Clock
KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) 5.4 Change clock 5.4.1 Change clock by Keypads Steps: Power off 6630KE. Power on 6630KE. You will message “Update Clock/Time?” Type “201509251601” according “YYYYMMDDHHMM”, and press “#” to confirm Done 5.4.2 Change clock by Configuration software Please follow 5.3. - Page 18 KEYKING GROUP 6630KE Keypads Reader Operation Manual (1.00) RS485 Sync clock wire Wiegand Cable Page Keyking Group Limited 33 Jabotinski St., Twin Tower 1, Ramat Gan, 52511,Israel website: www.keyking.net E-mail: info@keyking.net...
