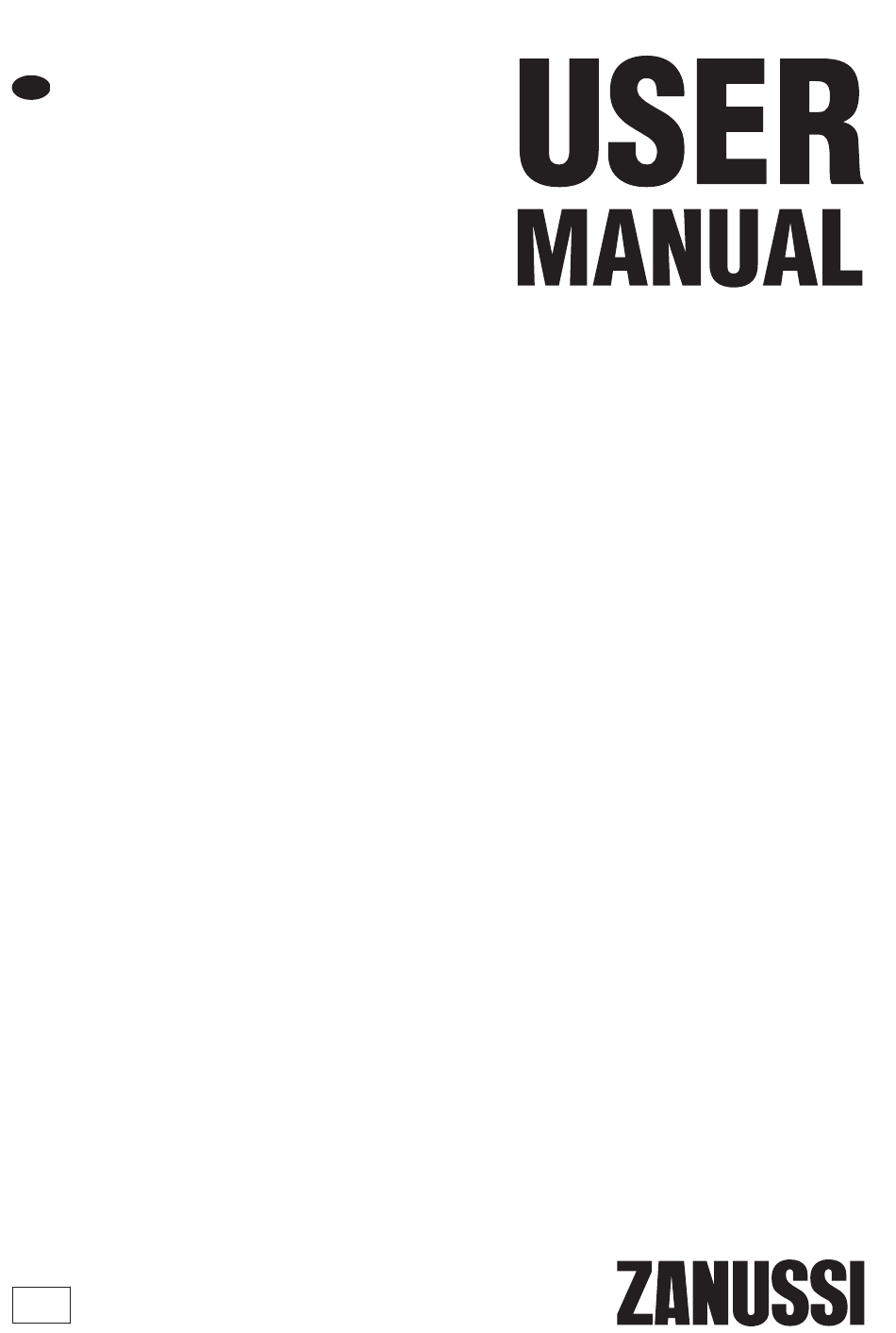

- Page 1 User Manual Oven ZOG15311XK...
-
Page 2: Table Of Contents
Children aged 3 years and under must be kept away from this • appliance when it is in operation at all times. General Safety Only a qualified person must install this appliance and replace • the cable. www.zanussi.com... -
Page 3: Safety Instructions
• The sides of the appliance must stay must be carried out by our Authorised adjacent to appliances or to units with the Service Centre. same height. www.zanussi.com... - Page 4 • This appliance is for household use only. • Do not change the specification of this appliance. • Make sure that the ventilation openings are not blocked. www.zanussi.com...
-
Page 5: Product Description
Control panel Gas block indicator Knob for the oven functions Electronic programmer Knob for the temperature Temperature indicator / symbol Air vents for the cooling fan Heating element Lamp Turnspit hole Oven cavity bottom plate Shelf support, removable Shelf positions www.zanussi.com... -
Page 6: Before First Use
Clean the appliance and the accessories before first use. Daily use WARNING! Refer to Safety chapters. Oven functions Oven function Application Off position The appliance is off. www.zanussi.com... - Page 7 When you use the oven for the first flame. time, several lighting attempts are normally required due to the 1. Turn the knob for the oven functions to presence of air in the gas pipe. The oven light comes on. www.zanussi.com...
-
Page 8: Clock Functions
DURATION To set how long the appliance operates. To set when the appliance deactivates. TIME DELAY To combine DURATION and END function. MINUTE MINDER To set countdown time. This function has no effect on the operation of the appliance. www.zanussi.com... -
Page 9: Using The Accessories
Press any button to stop the signal. 5. Turn the knob for the oven functions and the knob for the temperature to the off position. Using the accessories WARNING! Refer to Safety chapters. www.zanussi.com... - Page 10 4. Install the first fork on the spit, then put the Baking tray: meat on the turnspit and install the second fork. Push the baking tray between the guide bars of the shelf support. www.zanussi.com...
-
Page 11: Additional Functions
To decrease the condensation, operate the during roasting, add some water into the appliance for 10 minutes before cooking. deep pan. To prevent the smoke • Clean the moisture after each use of the condensation, add water each time after it appliance. dries up. www.zanussi.com... - Page 12 200 - 210 25 - 30 Calzone 1.4 - 1.5 3 or 4 190 - 200 25 - 30 Cakes Food Quantity (kg) Shelf position Tempera- Time (min) ture (°C) Flat cake 0.6 - 1.0 170 - 180 20 - 30 www.zanussi.com...
- Page 13 12 - 14 chicken Hamburger max. 13 - 15 12 - 14 Fish fillet max. 12 - 14 10 - 12 Toasted 4 - 6 max. 5 - 7 sandwiches Toast 4 - 6 max. 2 - 4 2 - 3 www.zanussi.com...
-
Page 14: Care And Cleaning
Do not use the appliance if the door The oven door can close if you try to gasket is damaged. Contact an Authorised remove the internal glass panel Service Centre. before you remove the oven door. www.zanussi.com... - Page 15 1. Deactivate the appliance. 2. Remove the fuses from the fuse box or deactivate the circuit breaker. The back lamp 1. Turn the lamp glass cover counterclockwise to remove it. 2. Clean the glass cover. www.zanussi.com...
-
Page 16: Troubleshooting
Do not remove yourself, contact your dealer or an Authorised the rating plate from the appliance cavity. Service Centre. We recommend that you write the data here: Model (MOD.) ......... Product number (PNC) ......... Serial number (S.N.) ......... www.zanussi.com... -
Page 17: Installation
Do not apply force to the gas supply circuit. WARNING! Do not use a flame to check for leaks! 2. Fully move the oven into the built-in cabinet. 3. Carefully move the burner off the injector support (D). www.zanussi.com... - Page 18 • For correct operation, the oven cabinet must have a minimum opening of 130 cm² in the front or on the sides (a minimum of 65 cm² for each side). The manufacturer recommends a 130 cm² opening in the front www.zanussi.com...
-
Page 19: Technical Data
Gas original: G20 (2H) 20 mbar = 2.7 kW Gas replacement: G30 (3+) 28-30 mbar = 2.7 kW G31 (3+) 37 mbar = 2.7 kW Electric supply: 220 - 240 V ~ 50 / 60 Hz Appliance category: II2H3+ www.zanussi.com... - Page 20 Return the product to your the packaging in applicable containers to local recycling facility or contact your municipal recycle it. Help protect the environment and office. human health and to recycle waste of electrical and electronic appliances. Do not dispose www.zanussi.com...
- Page 21 www.zanussi.com...
- Page 22 www.zanussi.com...
- Page 23 www.zanussi.com...
- Page 24 www.zanussi.com/shop...
