- Page 1 USER MANUAL Ver. 1.0 3/29/19 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials.
- Page 3 PROTECT YOUR DOME HELMETS SAVE LIVES Helmets can reduce 85% of critical head injuries. Elbow pads can reduce 82% of elbow injuries. Knee pads can reduce 32% of knee injuries. From https://www.ncbi.nlm.nih.gov/pubmed/2716781 Always wear proper protective gear when riding. This includes knee and elbow pads and an age-appropriate helmet.
-
Page 4: Table Of Contents
HELMETS SAVE LIVES .................................. 3 PRODUCT SAFETY NOTICE ..............................1 Section 1. General Information ...............................3 1.1 About the SWAGTRON EB-12 eBike ............................3 1.2 What’s In the Box? ................................... 4 1.3 SWAGTRON EB-12 eBike Diagram ............................5 Section 2. Assembling Your eBike ............................6 2.1 Assembling the Front Wheel.............................. - Page 5 Section 4. How to Ride ................................12 4.1 Riding Your eBike ..................................12 4.2 Buttons Information ................................13 4.3 Display Information ................................. 13 4.4 Display Brightness & Measurement Settings .......................... 14 Section 5. Safe Riding Techniques & Tips..........................14 5.1 Disposal at End-of-Life ................................15 Section 6.
-
Page 6: Product Safety Notice
PRODUCT SAFETY NOTICE The SWAGTRON EB-12 eBike has been designed with the utmost safety in mind for its riders. Extra precautions have been taken to protect the user from product hardware malfunctions through our meticulous design, and engineering and product testing. - Page 7 By riding the SWAGTRON EB-12 eBike, the user acknowledges and accepts personal responsibility of all risks associated with the use of the SWAGTRON EB-12 eBike. These risks can include, but are not limited to, muscle injuries, broken bones, lacerations, or serious injury that may be sustained while using the SWAGTRON EB-12 eBike.
-
Page 8: Protect Your Dome
Before operating your eBike, please read all instructions. This manual will guide you through the functions, usage, and proper care of your EB-12. If you have any questions or cannot find the information you need in the manual, please contact your place of purchase or our customer service at 1-844-299-0625. -
Page 9: What's In The Box
1.2 What’s In the Box? • 1 x SWAGTRON EB-12 eBike • 1 x Seat • 2 x Pedals • 1 x Charging Cable & Adapter • 1 x Allen Key • 2 x Keys • 1 x Wrench • 1 x User Manual... -
Page 10: Swagtron Eb-12 Ebike Diagram

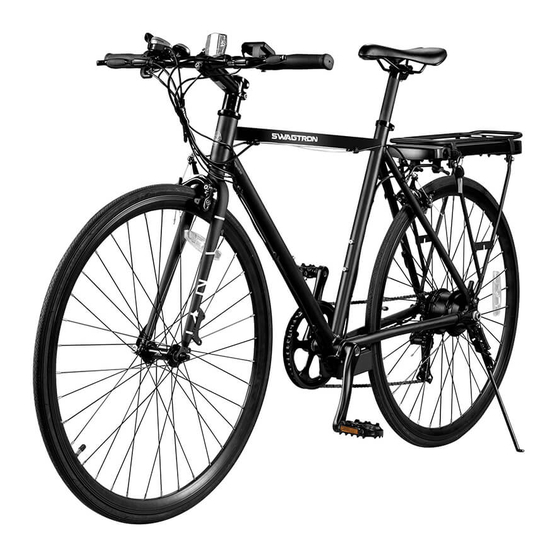

1.3 SWAGTRON EB-12 eBike Diagram Bottom View of Battery REFLECTOR ON/OFF REAR BRAKE BUTTON BATTERY HANDLE GEAR SWITCH THROTTLE BELL CHARGING PORT GEAR BUTTON REFLECTOR SEAT DISPLAY TOP TUBE FRONT BRAKE BACK SEAT BATTERY INDICATORS FRAME REFLECTOR BATTERY LOCK PEDAL... -
Page 11: Section 2. Assembling Your Ebike
If you are comfortable assembling the bike yourself, be sure to follow all instructions, properly adjust gears and brakes, and set tire pressure. Proper tire pressure can reduce flats and improve the EB-12's performance, including range per charge. 2.1 Assembling the Front Wheel For initial assembly, you will need to ask for someone's help. - Page 12 • A screwdriver can be used on some brakes to set the clearance on both sides of the rim. • The leading edge of the brake pads should make first contact with the rim when adjustment is complete. Special curved washers are fitted to some brakes to allow this, Fig. 3 SWAGTRON EB-12 24" Electric Bike ENGLISH...
-
Page 13: Assembling The Head And Adjusting The Handlebars
Step 2. Lift the back desk up, insert the screw through the bracket hole, and tighten the screw back onto the rear wheel. If there are spacers on the screws already, make sure they are installed between the nut and bracket. Bracket Step 3. Repeat with other side. Fig. 5 ENGLISH SWAGTRON EB-12 24" Electric Bike... -
Page 14: Assembling The Seat And Adjusting The Seat Height
Check the safety mark on post to make sure the seat stem is inserted enough. 2.6 Assembling the Pedals Holding the crank arm vertical, use the included wrench to screw the pedal on the crank arm. Repeat with the other pedal as needed (Fig. 7). Fig. 7 SWAGTRON EB-12 24" Electric Bike ENGLISH... -
Page 15: Section 3. How To Use The Battery
Disconnect all cables once charging is finished. • Fully charge the battery before your first use, this may take up to 4 hours. • Perform periodic visual inspection of the battery ports and charging cables. ENGLISH SWAGTRON EB-12 24" Electric Bike... -
Page 16: Detaching/Install The Battery
• If the charging adapter's light doesn’t turn on, it may not be fully connected. Check that it is securely connected to the wall and to the bike. • Use only the charger provided with your EB-12. If you have lost or damaged your charger, contact customer support to obtain a replacement. -
Page 17: Section 4. How To Ride
• Switch between 7 gears by pressing the gear button or pushing the gear switch as needed while riding your eBike. • To stop, release the throttle, then squeeze the front and rear brakes to slow the front and rear wheels down. ENGLISH SWAGTRON EB-12 24" Electric Bike... -
Page 18: Buttons Information
• Use the bell to alert pedestrians and other riders of your presence. 4.2 Buttons Information The EB-12 eBike’s display features several different elements. : Press and hold for ~2 seconds to turn the eBike on/off. Quick-press to cycle between TRIP, VOL, TI, and ODO on-screen. -
Page 19: Display Brightness & Measurement Settings
Consider the following techniques and info to help ensure you have a safe, fun riding experience. Before riding, always check to make sure your brakes are working properly. • Always wear proper protective gear when riding. This includes knee and elbow pads and an age-appropriate ASTM- approved helmet. • Make sure your feet are always on the pedals. Taking your feet off the pedals while riding is dangerous. • Remember to remain seated when using the eBike's control function. • Make sure the battery is fully charged especially if you plan to travel long distances. • For your own safety and the safety of others, ride only at speeds you are comfortable with and be ready to stop at any time. • When riding near others, keep a safe distance from fellow riders to avoid collisions. • Pay attention to your surroundings. Your eyes are your best tools for safely avoiding obstacles and unsafe surfaces. • Ride in open spaces and flat areas. Avoid slopes or high traffic areas until you’re familiar with riding. • Do not ride at high speeds, on uneven terrain, in inclement weather, or otherwise unsafe conditions. • Never use the eBike to do anything that may cause personal injury or property damage. • Do not attempt to carry passengers or heavy items. The bike can only support the weight of one person at a time. Do not exceed the weight limit. • Only ride the eBike where permitted. You MUST comply with local laws and give way to pedestrians. ENGLISH SWAGTRON EB-12 24" Electric Bike... -
Page 20: Disposal At End-Of-Life
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any SWAGTRON product at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of lithium-ion batteries and/or products containing them will vary according to country, state, and local governments. -
Page 21: Section 6. Maintenance
• Underinflation is strongly recommended if you intend to ride outdoors in temperatures above 90°F degrees. Bring the EB-12 eBike indoors and deflate the tires to 90 PSI. If the PSI is too high and the tire are exposed to excessively high temperatures, riding outdoors may cause serious damage to the tire including but not limited to stretching and/or rupturing. -
Page 22: Semi-Annual Bike Inspections
• Cover the eBike to keep dust out. Do not store in a dusty environment as this may cause damage over time. 6.5 Transportation Turn off the EB-12 before moving, lifting, or otherwise transporting the eBike. The eBike weighs approximately 39.24 lbs. If you are unsure of your ability to lift this much weight, ask someone for help. -
Page 23: Section 7. Specifications
Charging Voltage 100V - 240V / 50 - 60Hz /42V 2A Wheel Size 700C Front / Rear Wheel Inflation 100 PSI / 7.0BAR Charging Time 4~5 Hours Water Resistance IPX4 Warranty 1 Year Limited ENGLISH SWAGTRON EB-12 24" Electric Bike... -
Page 24: Year Limited Hardware Warranty
Warranty services are provided by SWAGTRON . If a hardware defect arises and a valid claim is received within ® the Warranty Period, at its option and to the extent permitted by law, SWAGTRON will: (1) repair the hardware ®... - Page 25 Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON ® a party expressly authorized by SWAGTRON should perform service on this Product. ® DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY.
- Page 28 COPYRIGHT © 2019 SWAGTRON. ALL RIGHTS RESERVED.
