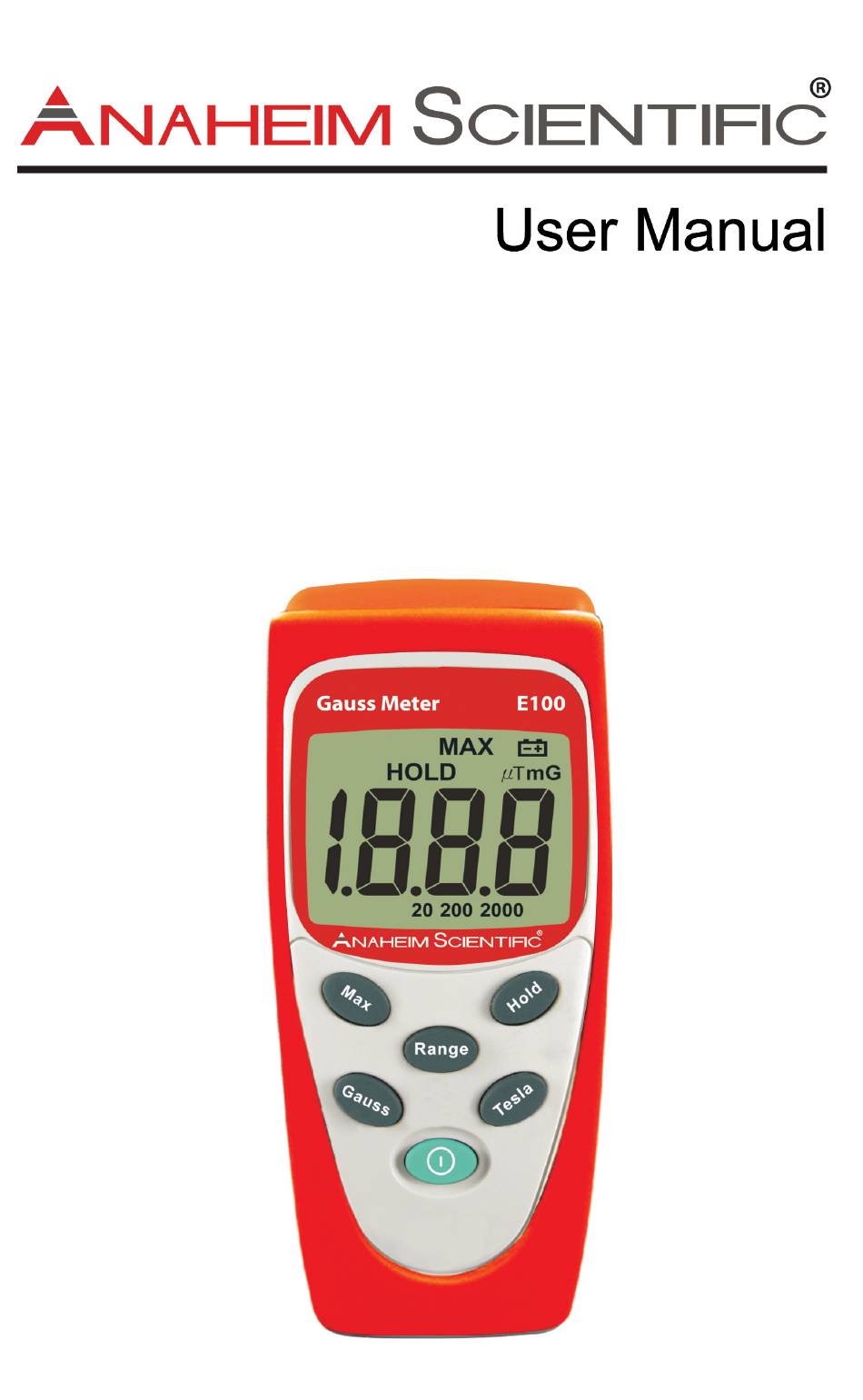

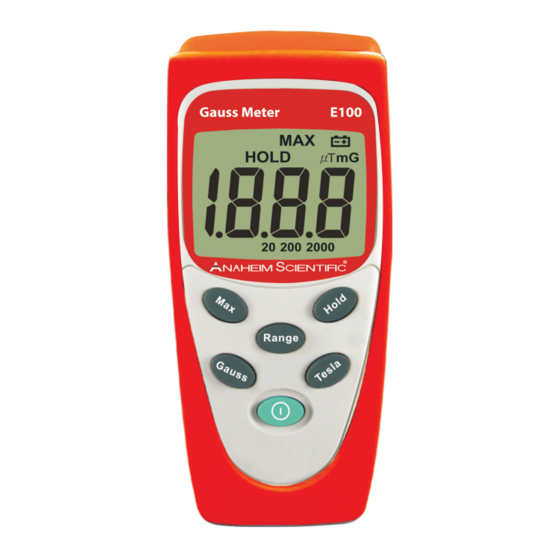

- Page 1 Model E100 Gauss Meter...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ................3 The E100 Features: ..............3 The E100 Applications ............... 3 SAFETY SUMMARY ................. 4 COMPLIANCE STATEMENTS ............5 PRODUCT CONTENTS AND INSPECTION ........5 ELECTROMAGNETIC FIELDS ............6 IDENTIFYING PARTS ..............7 DEVICE OPERATION ............... 7 SPECIFICATIONS ................ -
Page 3: Introduction
Introduction Thank you for purchasing the E100 Gauss Meter from Anaheim Scientific. The E100 is a magnetic field meter designed to measure extremely low frequencies (ELF) of 30 to 300Hz. 1.1 The E100 Features: • Readings in micro-Tesla or milli-Gauss •... -
Page 4: Safety Summary
• Avoid shaking the meter, particularly while in operation. • For cleaning the instrument use a soft dry cloth. Never use a wet cloth, solvents or water, etc. anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719... -
Page 5: Compliance Statements
If damage to the instrument is evident, a description of the damage should be noted on the carrier’s receipt and signed by the driver or carrier agent. Save all shipping packaging for inspection. anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719... -
Page 6: Electromagnetic Fields
Use of the original packing is essential. After the mechanical inspection, verify the contents of the shipment. The items included in this package are: • E100 Meter • User manual • 9V battery • Carrying case... -
Page 7: Identifying Parts
Sensor position Power on/off Maximum hold button Data hold button mG unit select button µT unit select button Range select button Battery cover Device Operation Press to power on. anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719... - Page 8 LCD, press or press again to unlock. • To retain the maximum value, press and the reading value displayed on the LCD will keep updating to the maximum value. anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
- Page 9 • Figure 1 indicates the correct measurement direction for the electromagnetic wave. • Figure 2, 3, 4, 5 and 6 indicate the incorrect measurement direction for the electromagnetic wave anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
-
Page 10: Specifications
Accuracy Over Load LCD displays “OL” Indicator Sample Rate 2.5 times per second Battery Battery Life Approximate 100 hours Weight About 170g Dimensions 130(L) x 56(W) x 38(H)mm anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719... -
Page 11: Service, Repairs, Calibration
• If the unit is out of warranty, prepayment is required by Check, Money Order or Credit Card. • Return all merchandise to Anaheim Scientific with pre-paid shipping. The flat-rate repair charge for Non-Warranty Service does not include return shipping. - Page 12 • For overnight shipments and non-North American shipping fees please contact Anaheim Scientific Anaheim Scientific ATTN: Service/Repair 22820 Savi Ranch Parkway Yorba Linda, CA 92887 www.anaheimscientific.com anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
-
Page 13: Limited Two-Year Warranty
The warranty is void if the serial number is altered, defaced or removed. • Anaheim Scientific shall not be liable for any consequential damages, including without limitation damages resulting from loss of use. Some states do not allow limitations of incidental or consequential damages. - Page 14 Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
- Page 15 Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
- Page 16 22820 Savi Ranch Parkway Yorba Linda, CA 92887 www.anaheimscientific.com © 2013 Anaheim Scientific anaheimscientific.com Technical data subject to change without notice ©Anaheim Scientific 2013. 20130719...
