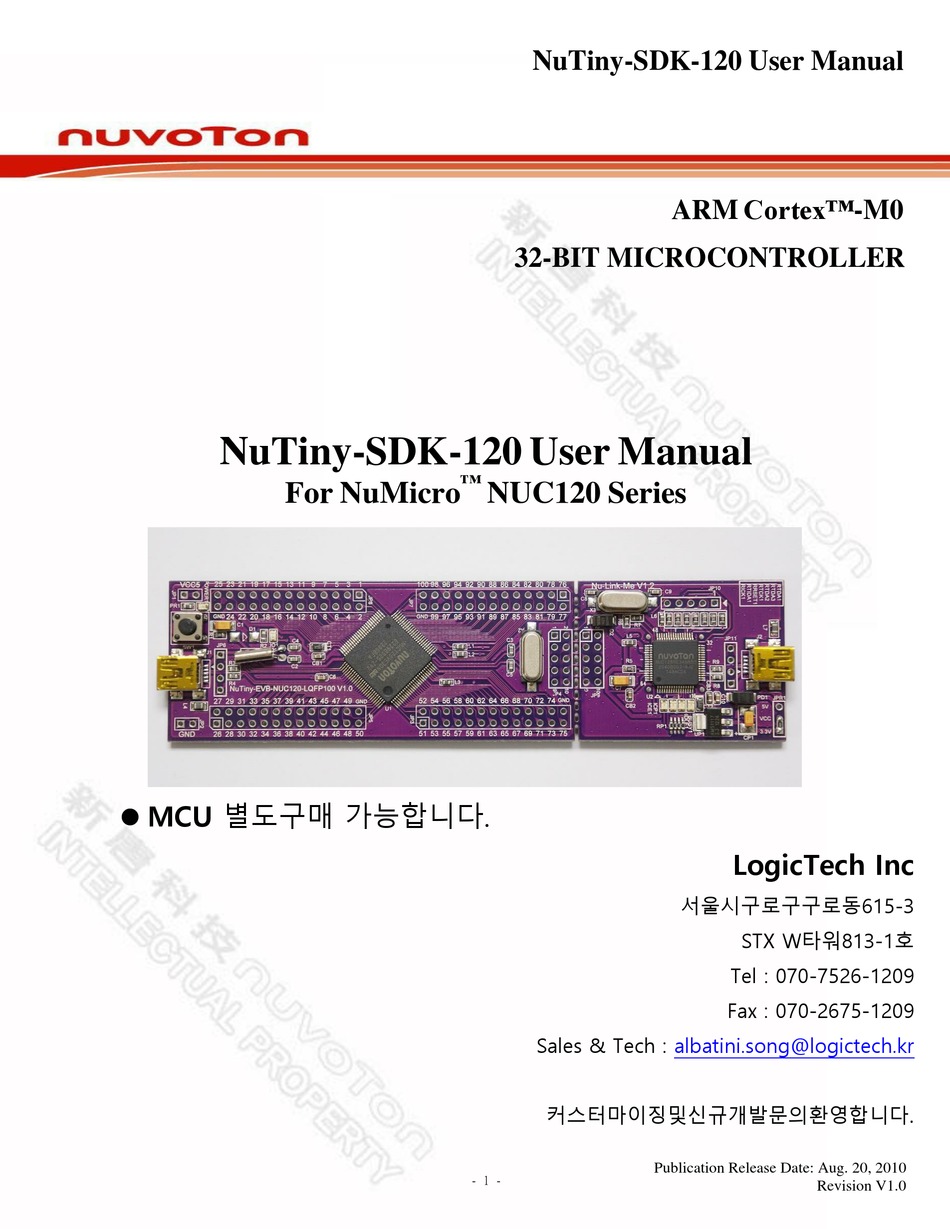

Nuvoton NuTiny-SDK-120 User Manual

Arm cortex-m0 32-bit microcontroller for numicro nuc120 series

Advertisement

Quick Links

NuTiny-SDK-120 User Manual
ARM Cortex™-M0
32-BIT MICROCONTROLLER
NuTiny-SDK-120 User Manual
For NuMicro
NUC120 Series
 MCU 별도구매 가능합니다.
LogicTech Inc
서울시구로구구로동615-3
STX W타워813-1호
Tel : 070-7526-1209
Fax : 070-2675-1209
Sales & Tech :
albatini.song@logictech.kr
커스터마이징및신규개발문의환영합니다.
Publication Release Date: Aug. 20, 2010
- 1 -
Revision V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuTiny-SDK-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nuvoton NuTiny-SDK-120

  • Page 1 NuTiny-SDK-120 User Manual ARM Cortex™-M0 32-BIT MICROCONTROLLER NuTiny-SDK-120 User Manual ™ For NuMicro NUC120 Series  MCU 별도구매 가능합니다. LogicTech Inc 서울시구로구구로동615-3 STX W타워813-1호 Tel : 070-7526-1209 Fax : 070-2675-1209 Sales & Tech : albatini.song@logictech.kr 커스터마이징및신규개발문의환영합니다. Publication Release Date: Aug. 20, 2010 - 1 - Revision V1.0...
  • Page 2: Table Of Contents

    3.3 Hardware Setup ..................... 6 3.4 Smpl_NuTiny-NUC120 Example Program ..............7 How to Start NuTiny-SDK-120 on the IAR Embedded Workbench ......8 4.1 IAR Embedded Workbench Software Download and Install ........... 8 4.2 Nuvoton Nu-Link Driver Download & Install ..............8 4.3 Hardware Setup .....................
  • Page 3: Overview

    NuTiny-SDK-120 User Manual 1 Overview NuTiny-SDK-120 is the specific development tool for NuMicro NUC120 series. Users can use NuTiny-SDK-120 to develop and verify the application program easily. NuTiny-SDK-120 includes 2 portions. One is NuTiny-EVB-120 and the other is Nu-Link-Me. NuTiny-EVB-120 is evaluation board and Nu-Link-Me is its Debug Adaptor.
  • Page 4: Nutiny -Sdk-120 Jumper Description

    Voltage by VCC input X: Not use. 2.1.2 Debug Connector • JP4: Connector in target board(NuTiny-EVB-120) for connecting with Nuvoton ICE adaptor (Nu-Link-Me) • JP8: Connector in ICE adaptor (Nu-Link-Me) for connecting with a target board (for exampl NuTiny-EVB-120) 2.1.3 USB Connector •...
  • Page 5: Pin Assignment For Extended Connector

    PB.8, STADC, TM0 Table 2-1 Pin Assignment for NUC 120 Series NuTiny-SDK-120 PCB Placement Users can refer Figure 2-2 for the NuTiny –SDK-120 PCB placements. Figure 2-2 NuTiny-SDK-120 PCB Placement Publication Release Date: Aug. 20, 2010 - 5 - Revision V1.0...
  • Page 6: How To Start Nutiny -Sdk-120 On The Keil Μvision

    ® μ Please visit the Keil company website (http://www.keil.com) to download the Keil Vision IDE and install the RVMDK. Nuvoton Nu-Link Driver Download and Install ™ ™ website (http://www.nuvoton.com/NuMicro ) to download “NuMicro Please visit the Nuvoton company NuMicro Keil ®...
  • Page 7: Smpl_Nutiny-Nuc120 Example Program

    NuTiny-SDK-120 User Manual Smpl_NuTiny-NUC120 Example Program This example demonstrates the ease of downloading and debugging an application on a NuTiny-SDK-120 board. ™ It can be found on the Figure 3-2 list directory and downloaded from Nuvoton NuMicro Website following Chapter 6.3.
  • Page 8: How To Start Nutiny-Sdk-120 On The Iar Embedded Workbench

    NuTiny-SDK-120 User Manual 4 How to Start NuTiny-SDK-120 on the IAR Embedded Workbench IAR Embedded Workbench Software Download and Install Please connect to IAR company website (http://www.iar.com) to download the IAR Embedded Workbench and install the EWARM. Nuvoton Nu-Link Driver Download & Install ™...
  • Page 9: Smpl_Nutiny-Nuc120 Example Program

    NuTiny-SDK-120 User Manual Smpl_NuTiny-NUC120 Example Program This example demonstrates the ease of downloading and debugging an application on a NuTiny-SDK-120 board. ™ It can be found on the Figure 4-2 list directory and downloaded from Nuvoton NuMicro Website following Chapter 6.3.
  • Page 10: Nutiny-Evb-120 Schematic

    NuTiny-SDK-120 User Manual 5 NuTiny-EVB-120 Schematic DVCC5 TICEDAT ICEDAT TICEDAT DAVDD TICECLK ICECLK TICECLK TICERST ICERST TICERST PIN13 PIN14 ICERST PIN48 PIN47 PIN15 PIN16 PIN46 PIN45 SW 1 PIN17 PIN18 PIN44 PIN43 R0603 PUSH BOTTOM VCC5 PIN20 PIN19 PIN42 PIN41...
  • Page 11: To Download Numicro ™ Family Related Files From Nuvoton Company

    NuTiny-SDK-120 User Manual ™ 6 To Download NuMicro Family Related Files from Nuvoton Company ™ ® Keil μVision To Download NuMicro IDE driver ™ To visit the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Step1 Click here to enter Devlopment Tools page Step2 Step 3 To download the NuMicro Keil μVision...
  • Page 12: Iar Ewarm Driver

    NuTiny-SDK-120 User Manual ™ To Download NuMicro IAR EWARM driver ™ Step1 To visit the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Click here to enter Devlopment Tools page Step2 Step 3 ™ ® Step 4 To download the NuMicro IAR Embedded Workbench driver Publication Release Date: Aug.
  • Page 13: To Download Numicro ™ Nuc120 Series Bsp Software Library

    NuTiny-SDK-120 User Manual ™ To Download NuMicro NUC120 series BSP Software Library ™ Step1 To visit the Nuvoton NuMicro Website: http://www.nuvoton.com/NuMicro Step2 ™ To download the NuMicro NUC100 series software library Step 3 Publication Release Date: Aug. 20, 2010 - 13...
  • Page 14: Revision History

    Nuvoton customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nuvoton for any damages resulting from such improper use or sales.
