Product set up:
Simulaids' authorized SMART STAT Basic distributors (who you purchased your SMART STAT
Basic from) are available to assist you with the set up.
Charging the battery (If option was purchased)
The batteries require approximately five (5) hours of charging. Before installing the leg on the
simulator fully charge the battery, which is concealed in the lower left leg. The battery is not
removable from the leg.
There are two connections necessary to charge the battery between the leg and the charger.
One large connector charges the batteries and the smaller connector is a heat sensor.
1. Always plug in the heat sensor first. Failure to connect the heat sensor to the charger may result in
a fire hazard
2. Connect the power charge connector
3. Place the battery leg on a surface until the batteries are fully charged. The light on the charger will
turn green when the charging is complete.
The battery charge will last approximately 5 hours while the simulator is idling at default
features. NOTE: When operating the simulator on a/c electrical power, it is recommended to
separate the battery leg connector at the knee joint so the battery leg. When the battery
reaches an expired level of energy, the simulator will automatically shut down. To preserve the
active functions of the simulator plug into the 110 or 240 a/c source before the battery energy
expires. The plug for an extension cord is found inside the pelvic shorts on the right hand side
of the simulator. To increase battery time it is recommended to obtain an extra "battery leg"
no. 407N.

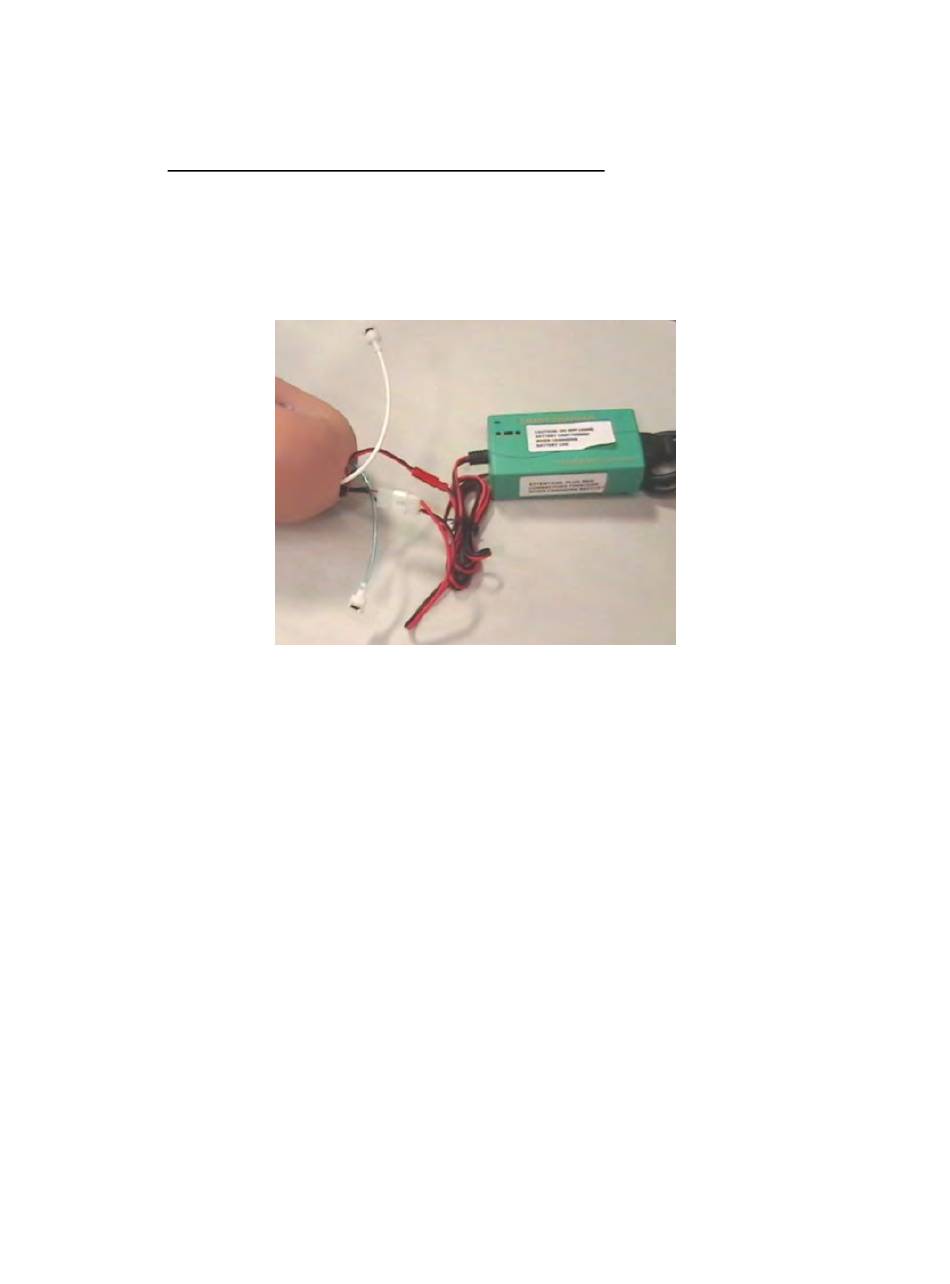

Battery Charger and connections (2)
