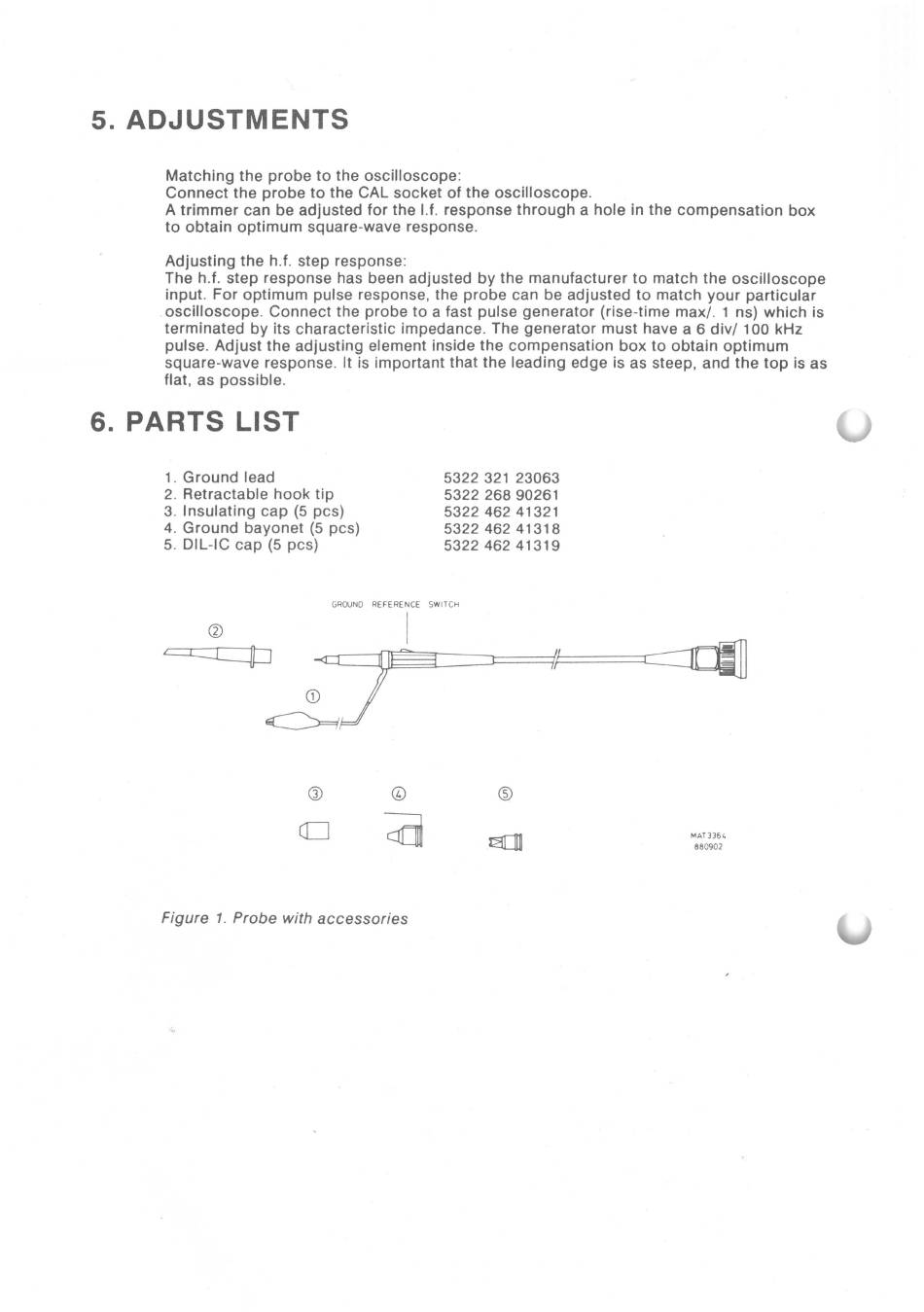

5. ADJUSTMENTS
Matching the probe to the
oscilloscope:
Connect the probe to the CAL socket of the oscilloscope.
A trimmer can be adjusted for the
1.1.
response through a hole in the compensation box
to obtain optimum square-wave
response.
Adjusting the h. f. step response
:
The
h.f. step response has been adjusted by the manufacturer to match the oscilloscope
input.
For optimum pulse
response,
the probe can be adjusted to match your particular
oscilloscope.
Connect the probe to a fast pulse generator (rise-time
max/.
1 ns) which is
terminated by
its
characteristic
impedance.
The generator must have a 6
div/
1 oo kHz
pulse. Adjust the adjusting element inside the
compensation
box to obtain optimum
square-wave response. It is important that the leading edge is as steep, and
the
top is
as
flat, as
possible.
6. PARTS LIST
1.
Ground lead
2. Retractable hook tip
3. Insulating
cap (5
pes)
4. Ground bayonet
(5
pes)
5.
DIL-IC
cap
(5
pes)
5322 321
23063
5322 268 90261
532246241321
5322
462
4 1318
5322 462
41319
GRCXJND REFERENCE
SWI
TCH
Figure
1.
Probe
with
accessories
MATJ)6~
880902
