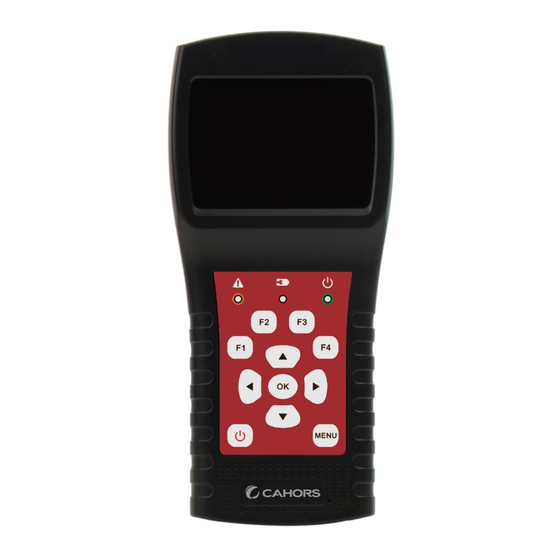

- Page 1 STM 17 HD DVB-S2+T2/C Compact Meter User Manual Ref 0145131R13 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
-
Page 2: Table Of Contents
•Please use the special adapter for charging attached with the meter, do not use it for other product • In case of any technical questions, please contact your local dealer. 1/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 3: Main Features
Spectrum analyzer SCOPE Display Channel Auto Scan DVB-C DVB-C(QAM) : Power, CBER, PBER, SNR and Symbol Rate display Spectrum analyzer Tilt Display 2/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 4: Buttons And Indicators
Flash if LNB is short connected 5. Working Light: Green: the meter is in working status 6. Function Keys: F1: Turn on/off the screen display F2: Enable/disable deep when pressing keys 3/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 5: How To Measure
Make sure set Antenna Power to ON in System Setting menu if your antenna needs power supply. Analyze the signal in Terrestrial Measure menu. Analyze the scope in Scope menu and the spectrum in Spectrum Chart menu. 4/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 6: Home Menu
[MENU] to exit from edit menu. All the other parameters on the menu will be refreshed according to the selected satellite. 5/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 7: Lnb Setting
The LNB type. Press [/] to switch between LNB types and press [OK] to enter list to select type. 22K: The 22k parameter. Press [/] button to switch between Auto, Off and On. 6/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... - Page 8 Move the motor by step. Press [/] to move to west or east Move incessantly: Move the motor incessantly. Press [/] to move to west or east 7/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
-
Page 9: Edit Satellite
And press [OK] button to edit selected transponder. And then press [/] to move curse and [/] to change value of each focused item in edit menu. 8/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 10: Spectrum Chart
[MENU] to exit from edit menu. All the other parameters on menu will be refreshed according to the selected satellite. 11096/H/30000: The current transponder, press [/] to switch between transponders 9/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 11: Angle Calculation
User need to adjust the attitude of the meter according to the simulated results until the current simulated values very close to the right ones. As close as possible. Then the BLUE lines will turn GREEN. Belowing is the graph for meter during adjust. 10/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... - Page 12 The real of meter must face to the satellite in the sky that user is plan to find.Belowing is the figure of aligment on this menu. 11/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
-
Page 13: Tp Control
Measure menu to enter this menu. It is very easy and useful to check the output status of each port of Quattro LNB . Press [MENU] to exit to Finder menu. Please see the figure on the right side: 12/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 14: Terrestrial
POWER: The power level value of the live signal. Str: The strength of the live signal in percent. Qlt: The quality of the live signal in percent. 13/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 15: Auto Scan
User can enable/disable the power supply for antenna. 5V and 12V output are supported. And also user can set to scan DVB-T, DVB-T2 and both of them during Auto Scan. 14/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 16: Cable Tv
The channel number. Press [/] to switch between them. Press [/] to change the channel number and press [OK] to pop out channel list to select. FREQ: The frequency of each channel 15/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 17: Spectrum Chart
Hardware Ver: The version number of hardware. Software Ver: The version number of software. 9. A CCESSORIES Power adapter, 2 RF connector, 1 CD for user manual. 16/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 18: Trouble Shooting
Please confirm the signal cable is connected correctly and make sure the antenna power is been set to ON if the antenna needs power supply. Other questions: please contact your dealer 17/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 19: Technical Specification
Display the signal strength of selected frequency Edit TP Frequency, Symbol Rate, Polarity(950~2150MHz) Spectrum Analyzer Display waveforms of selected frequencies Constellation Constellation with 8PSK, QPSK, 16APSK, 32APSK 18/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... - Page 20 QAM mode 16 / 32 / 64 / 128 / 256 QAM Input RF level range 30dBµV ~ 100dB µV 20dB ~ 40dB, + 2dB 1.0E-3 ~ 1.0E-9 19/19 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
