- Page 1 STM 26 HD DVB-S2+T2/C Compact meter User Manual Ref 0145225R13 CAHORS Digital – CS 60022 – 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
-
Page 2: Safety Precaution
Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the receiver, or contact your dealer. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... - Page 3 3.3.4 Spectrum ......................... 11 ..........................12 ABLE 3.4.1 TP Search ........................12 3.4.2 TP IDE..........................13 3.4.3 Packet Control......................... 13 3.4.4 Spectrum ......................... 13 TV ........................14 ATCH CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
- Page 4 ASIC PERATION 3.8.1 PVR ..........................18 3.8.2 TP PVR ..........................19 3.8.3 Auto Timeshift ......................... 19 3.8.4 Find ..........................19 3.8.5 Scan ..........................20 ADDITIONAL INFORMATION ....................21 CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
-
Page 5: General Features

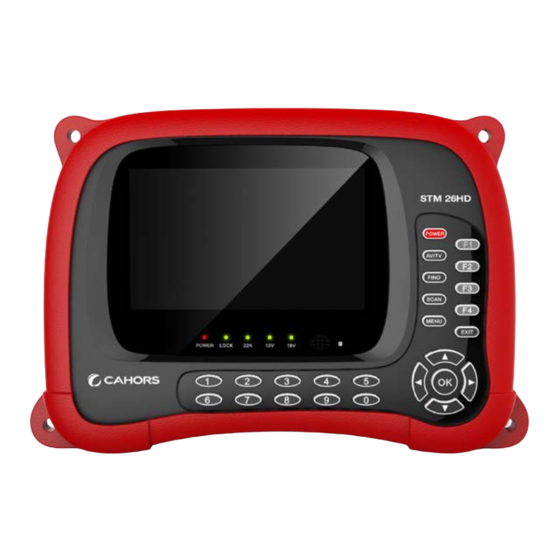

Red: the product is power on.. Green: the product is charging. LOCK light: This light will be on when signal is locked - 13V/18V light : Indicate the 13V/18V CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 6: Iii. Detailed Operation Guide
Power on by pressing the POWER button on the panel. Note: In this menu, you can press F1/F2 button to set brightness and press F3/F4 button to set contrast. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE... -
Page 7: S Atellite
- Start Search: After configure the antenna setting, press the F2 button to TP search. - Constellate: Press the F3 button to display constellation. - Explorer:Press the F4 button to explorer the signal information. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 8: Satellite Ide
- Save: Press F2 button to star for saving, and press it again to stop. - 1 Hour: Press F3 button to save it during one hour. - 1 Day: Press F3 button to save it during one day. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 9: Diseqc Search
Press the F1 button to keep the spectrum, and press the F2 button to analyze spectrum, and press the F3 button to mark spectrum, and press F4 button to next page. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE... -
Page 10: T Errestrial
Note: In this menu, you can press F1/F2 button to set brightness and press F3/F4 button to set contrast. 3.3.1 TP Search Main Menu-> Terrestrial ->TP Search In this menu, you can Delete, Add, Search Channels. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 11: Tp Ide
- SNR: It will show the carrier to noise ratio of the transponder which you selected. - Pre BER: Forward error correction. - Post BER: Afterward error correction. - Modulate: Modulation efficiency. - FFT Mode: Fast Fourier Transform CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 12: Packet Control
- ▲/▼: Change the range of the Y-axis. - Span: Press the F3 button to set transponder of span. Save Spectrum: Insert USB, press F4 button to save the picture of spectrum. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 13: Cable
- Auto Search: Press F4 button to search channels of all TP. - Network Search: It will go to search automatically from the selected TP. - Blind Search: A slow scanning, but may get more transponders. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 14: Tp Ide
- ▲/▼: Change the range of the Y-axis. - Span: Press the F3 button to set transponder of span. - Save Spectrum: Insert USB, press F4 button to save the picture of spectrum. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 15: Watch Tv
Main Menu->Settings In this menu, you can set System settings, OSD settings, Screen settings, and times. You also can do factory default, and view system information about instrument. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 16: System Settings
Time Settings : In this menu, you will set the time mode, time zone and summer time Sleep Timer You can set the time to make receiver sleep automatically. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 17: Color Settings
Date. When you need service from the dealer you need to submit this information in order to get the correct and fast after sales service. 3.7 Expansion Main Menu-> Expansion CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... - Page 18 After upgrade, the STB will restart automatically. And after restart you can search channel and test it. Note: During the process of upgrading the S/W, please don’t power off. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE...
-
Page 19: Basic Operation
- Stop: You can press F4 button to stop recording. Note: a) Before recording, you should insert USB to STB. b) You can watch the other program from the same TP while recording. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 20: Tp Pvr
If you select Terrestrial or Cable, you can enter the TP, and press F1 button to lock signal. Then you can view the information about this TP, you also can view constellate. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE... -
Page 21: Scan
- Start Search: Highlight the Start Search, and press OK button to search channels from the same provider what you selected. CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com... -
Page 22: Iv. Additional Information
107MHZ to 858MHZ Input Connector IEC Female 75Ωunbalanced RF Impedance IF Band width 6M, 7M, 8M Demodulation COFDM FFT Mode Auto Constellation Auto Guard Interval Auto Inner Coding Rate Auto CAHORS Digital – CS 60022 46003 Cahors Cedex 9 – FRANCE www.groupe-cahors.com...
