Gilson MS-398 Operating Manual

MS-398 and MS-398F Pro-Loader II Load Frame

INTRODUCTION

The MS-398 Load Frame is one of our most versatile testing
units. The Pro Loader II can be utilized for the following soil tests:
California Bearing Ratio (CBR), Unconfined Compression (UC),
Triaxial Compression, and Soil Cement. In addition, the following
Asphalt tests: Marshall, Lottman, TSR, IDT, SCB and Tack Coat shear
can all be performed. This unit also features strain rates – 0.02-
2.0in/min (0.508-50.8mm/min) – controlled to ±1% of set point.
Front panel controls allow the operator to adjust the direction
and speed of the platen, as well as select the strain rate. Sliding
the cross-arm up or down the coarse-threaded 1.25in (32mm)
diameter rods and tightening the nuts makes adjustment for the
wide variety of testing components quick and easy.

FEATURES

• Strain rate of 0.02-2.0in/min (0.508-50.8mm/min) allows for
multiple testing options (calibration chart included)
• Powerful 3/4hp DC drive motor
• Load capacity up to 10,000lbf (44kN)
• Durable 14-gauge steel cabinet and precision loading screw
with protective boot
• Hardened steel 8in (203mm) diameter platen, accepts a wide
variety of test fixtures
• Heavy 1.25in (31.8mm) diameter vertical rods with coarse
threads
• Front panel controls
• Upper and lower limit indicator lights
• Three-position control switch has built-in hesitation to prevent
damage to the motor when reversing direction
• Corrosion-resistant components
UNPACKING & SET UP
1. Inspect your MS-398 for damage, remove it from the pallet.
2. Place the MS-398 on a sturdy, level surface such as a bench
top or HMA-94 Rolling Load Frame Cart.
PHONE: 800-444-1508
740-548-7298
0.02—2.0in/min, 10,000lbf
P.O. Box 200, Lewis Center, Ohio 43035-0200
E-mail: customerservice@gilsonco.com
OPERATING MANUAL

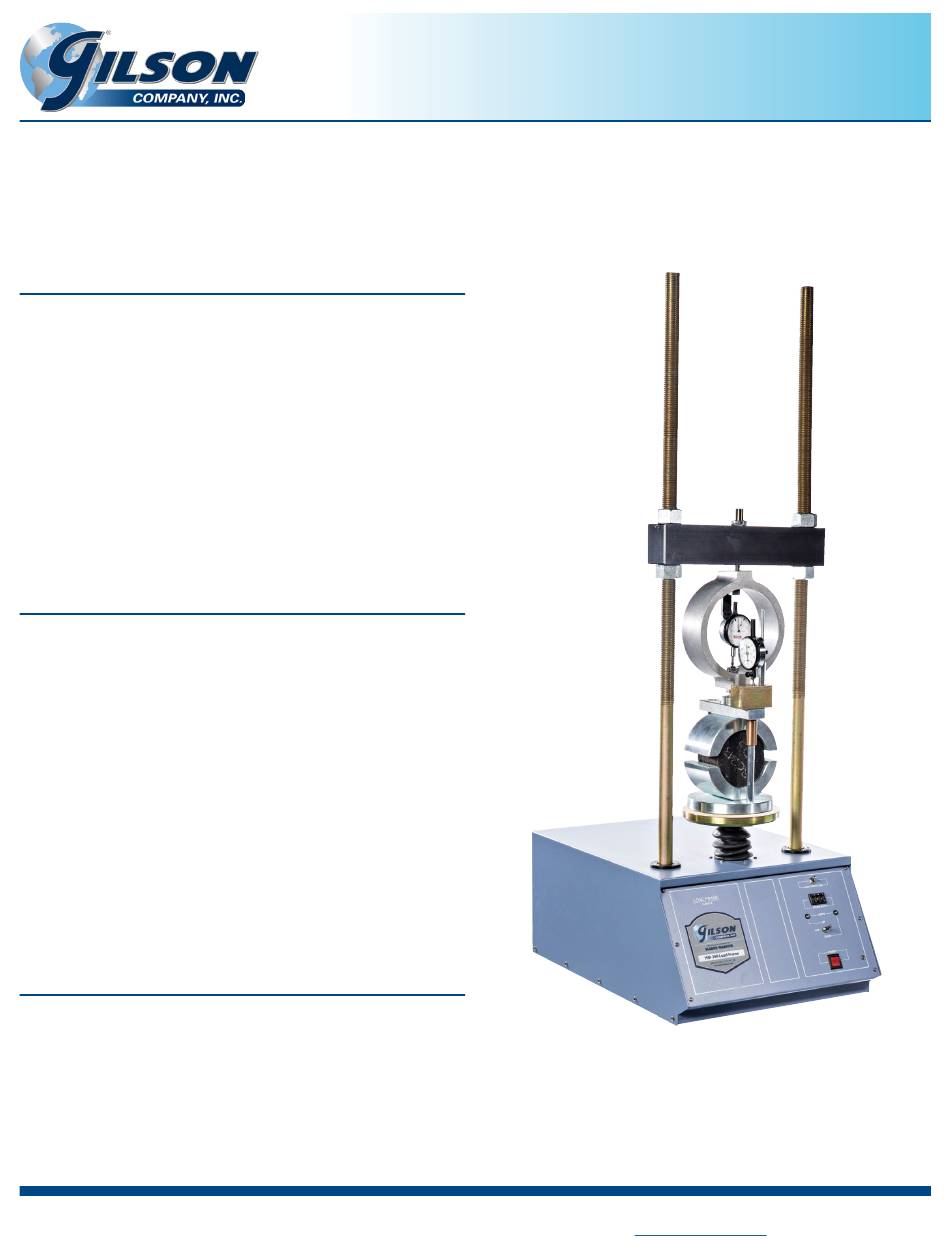

MS-398 shown with MSA-860
Product Web Page: www.globalgilson.com
(Continued on back.)
Rev: 01/2019
FAX: 800-255-5314
740-548-5314
