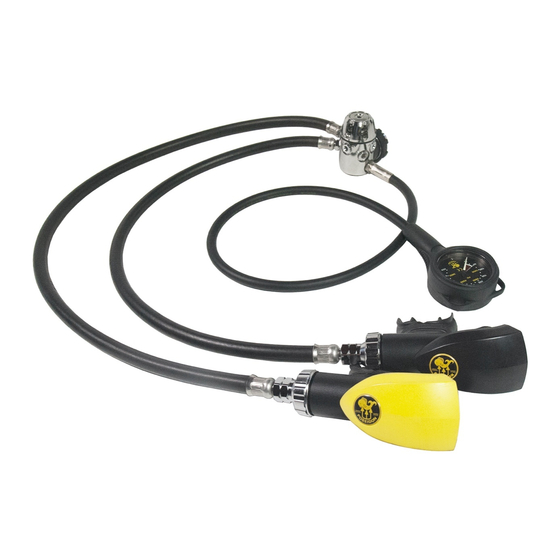

- Page 1 XSTREAM USER MANUAL 1.0...
-
Page 3: Table Of Contents
Product descriptions Xstream 2:nd Stage ....................10 Xstream 1:st Stage ....................11 Poseidon T.D.A ....................12 Deep / Deep90 1:st Stage (Trimix, Air, Nitrox Ready) ..........12 Deco / Oxygen 1:st Stage (Oxygen, Ean, Air) ............13 Duration/Duration En 144-3 1:st Stage (Ean, Air) ............14 Dive90 1:St Stage (Air) ..................15... -
Page 5: Conventions Used In This Guide
This User’s Guide is NOT intended for use as a training manual, or in any way as a substitute for proper training through a legitimate training agency approved by Poseidon AB. It is only intended to provide basic information concerning the Poseidon Xstream. Throughout this Guide, special alert boxes have been inserted to draw attention to critical information. - Page 6 Careless can cause serious injury or death. It is the user’s responsibility to attentively monitor the Poseidon Xstream and to have a working knowledge of the procedures if a problem should arise.
-
Page 7: Poseidon Xstream
Your new regulator has been designed to provide you with a life time of pleasure as a POSEIDON diver. Our objective is that the equipment you use should not be noticeable, instead it should be at one with the experience and give you total freedom to achieve what every diver dreams about, the ultimate dive. -
Page 8: Approvals/Certifications
CH65 3EN, United Kingdom. Independent performance testing according to directive and standards is conducted at accredited laboratories Diving and Naval Medicine Centre, Swedish Armed Forces, and Det Norske Veritas, Norway. Poseidon Diving Systems AB is certified according to ISO 9001... -
Page 9: Definitions/Abbrevations
XSTREAM USER MANUAL Definitions/Abbrevations Oxygen: any gas mixture containing greater than 21% oxygen up to 99.95% oxygen. Trimix: a gaseous mix containing Oxygen, Nitrogen and Helium. EAN 40: any gas mixture containing greater than 21% oxygen up to 40%. Enriched Air Nitrox. IP: Interstage pressure;... -
Page 10: General Safety Regulations
Poseidon only warrants the regulator performance as specified herein, and cannot be held responsible for improper preparations, incorrect gas mixing and planning, or diving beyond individual medical, psychological and physical limitations. - Page 11 O2 clean at all times. If an Xstream Oxygen, Deco or Duration regulator is contaminated or used with a contaminated fill then the regulator must be O2 cleaned by a certified Poseidon technician. Xstream Deep manufactured after 2015 is Nitrox ready from factory and when serviced, an O2 compatible lubricant should be used.
-
Page 12: Product Descriptions
The dead air space is low at just 49.5 ml (3 in3) making CO2 figures (hypercapnia) minimal. Inhalation resistance is incredibly low and unaffected by depth and breathing pattern Because of the unique Poseidon valve technology, there is no need for external adjustments. Xstream is fitted with the new ergonomic mouthpiece Poseidon AIR, with asymmetrical lugs for the most comfortable bite. -
Page 13: Xstream 1:St Stage
XSTREAM USER MANUAL exhalation. A minimal number of moving parts, coupled with thermodynamic engineering, ensures the safe use in an extremely cold environment. XSTREAM 1:ST STAGE In case of a malfunction in the 1st stage causing excessive intermediate pressure, the safety valve integrated in the 1st stage will bleed off the excessive gas. -
Page 14: Poseidon T.d.a
Patented e.g. first stage mounted HP sender/receive units. POSEIDON T.D.A Xstream has a built-in Poseidon T.D.A, ThermoDynamic Anti-freeze, which requires no maintenance. It is always there, doing the job. It is thermodynamically protecting the parts which must not freeze. -
Page 15: Deco / Oxygen 1:St Stage (Oxygen, Ean, Air)
XSTREAM USER MANUAL bottom mounted Deep discontinued in 2005. On regulators that have a 6 digit serial number (i.e. 401234) first digit represents last number manufacturing year. This regulator was manufactured in 2004. On regulators that have a 7 digit serial number (i.e. -
Page 16: Duration/Duration En 144-3 1:St Stage (Ean, Air)
XSTREAM USER MANUAL It has been tested for 360 bar (5221 psi) adiabatic compression oxygen shocks of less than 20 ms (heated to 60°C/140°F) according to EN 738-1. To make the test even more severe than required, it is tested with 99.95% purity of oxygen. Directly from the box, it is cleaned to NASA Specification [1] Cleaning test Level 100 (particle contamination) and... -
Page 17: Dive90 1:St Stage (Air)
Using a long hose requires some basic knowledge in its use and routing, to take the full advantages. Poseidon does not recommend the use of hose protectors on Poseidon IP hoses. Hose protectors have been shown to mislead the user to neglect the necessary... -
Page 18: Mounting The Hose
XSTREAM USER MANUAL General safety regulations MOUNTING THE HOSE First time mounting the hose of the length you have chosen, start with unscrewing the blind-screw (5mm allen-key) where you want the 2nd stage. Be careful not to contamine either the open port or the hose end. - Page 19 XSTREAM USER MANUAL • A safety system, including at least one of the following: - A submersible pressure - A reserve valve - An active low pressure warning device 1. Always check the gas-content of the cylinder before attaching the regulator. 2.
- Page 20 XSTREAM USER MANUAL OXYGEN ALERT! Slow opening of the cylinder valve is the best way to protect the system from compression shocks. Rapid openings represents the highest risk for fire due to compression shock. To ensure a slow opening it is good practice to use both hands, one on top of the other. Always open the cylinder, and isolator valves if used, first fully and then a 1⁄2 turn back.
-
Page 21: Diving
XSTREAM USER MANUAL DIVING What is most distinctive about the Xstream is that it is easy to use – there aren’t any valves or switches to change the flow of gas, reducing breathing performance, etc. You can leave the function and performance of the regulator in our hands and concentrate on what you want to do - dive. - Page 22 XSTREAM USER MANUAL 2. After rinsing, close the cylinder valve and purge the regulator. 3. Unscrew the regulator from the tank. Check that the protective cap is free from water and debris, then mount the protective cap onto the connection. The regulator should not be stored in direct sunlight and/or at high temperatures.
-
Page 23: Accessories
- Xstream EN 144-3 rebuild kit - Xstream hoses - Xstream (neck strap) surgical cord - Poseidon Jetstream 2nd stage and hose, EN 250 - Poseidon Jetstream 1st stage, EN 250 - All CE marked or EN 250 designated cylinder valves... -
Page 24: Diving Gas
WARNING: Gas mixing requires special training and knowledge. Poseidon can not be held responsible for an incorrect gas mix. Always follow established calculation methods and mixing procedures for mixing a breathable gas. These are not described herein. -
Page 25: Other
• Interstage pressure (IP) and safety valve opening pressure is preset by Poseidon and readjustment is prohibited. Readjustment of IP will never boost performance. • The use of accessories which have not been recommended can seriously impair the function of your equipment. -
Page 26: Technical Data
XSTREAM USER MANUAL Technical data Approved gas mixes for Xstream Deco/Duration/Duration90/Oxygen: Maximum level of: Oxygen 99.95% by volume 2 ppm 500 ppm Water dew point -45ºC (-50°F) Lubricants (droplets/mist) 0.5mg/ m3 Water 25 mg/ m3 Gaseous hydrocarbons 15 ppm Condensed hydrocarbons 0.1 mg/m3 Solid particles 2 microns... - Page 27 XSTREAM USER MANUAL Maximum Operational depth Certified to 200 m (656 ft) Typical Work of Breathing 1.5 J/l (see diagrams below) 50m on air, 62.5 l/min Typical Work of breathing 1.7 J/l (see diagrams below) 200m on Trimix, 62.5 l/min Approved gas Dive Deep...
- Page 28 XSTREAM USER MANUAL Lubricants Poseidon 1; BAM appr. 270 bar @ 100°C Poseidon 2; BAM appr. 140 bar @ 100°C Poseidon R; silicone oil. Colour Dive Grey / Yellow Deep / Deep90 Black Duration Green Deco / Oxygen White Warranty...
- Page 29 XSTREAM USER MANUAL Ports Dive 5 IP (UNF ** Latest versions 3/8”) / 2 HP (UNF 7/16”) Deep 3 IP (UNF Duration 3/8”) / 1 HP Deco (UNF 7/16”) Deep 90 5 IP (UNF 3/8”) Dur. 90 / 2 HP (UNF Oxygen 7/16”)** Connection...
- Page 30 XSTREAM USER MANUAL...
-
Page 31: Breathing Performance
XSTREAM USER MANUAL Breathing Performance The diagram above show a calculated graph for Work of Breathing in Joules/litre at Qaverage=62.5 litres/min.The equation behind it, is extracted from hundreds of tests, from which coefficients for gas dependency, average flow dependency, and depth dependency is calculated. Its maximum inaccuracy is within +/- 10%. -
Page 32: Troubleshooting
XSTREAM USER MANUAL Troubleshooting Effect Examine Reason Action Safety valve is opening Is it sponta- If yes, it may be Terminate dive neously opening a 1st stage error and have the regulator serviced Immersed in water, small Do they stop If yes, the valve Make sure bubbles are coming from... - Page 33 XSTREAM USER MANUAL Leakages at extremely Incorrect orings Have the regu- cold conditions lator serviced by an autho- rised dealer, require o-ring replacement There is a sound from The sound is Incorrect lubri- Have the regu- the regulator occurring even cants have been lator correctly while diving...
-
Page 34: Oxygen Statement
DCS and Nitrogen narcosis. The Poseidon Xstream Deco/Oxygen is approved for use with gaseous oxygen up to 99.95 % purity at maximum 300 bar supply pressure and a maximum gas temperature of 60˚C. -
Page 35: Annual Service
Nitrox identification, as well as marking with a pen is not regarded as modifications. WARNING: Do not lubricate the regulator beyond that done by Poseidon or your authorised Poseidon dealer. Spraying lubricants into the 2nd stage can cause deterioration of materials or be a trap for... - Page 36 Poseidon Diving Systems AB Åkeredsvägen 1, SE-421 63 Västra Frölunda, Sweden Phone: +46 31 734 29 00 E-mail: info@poseidon.com www.poseidon.com...
