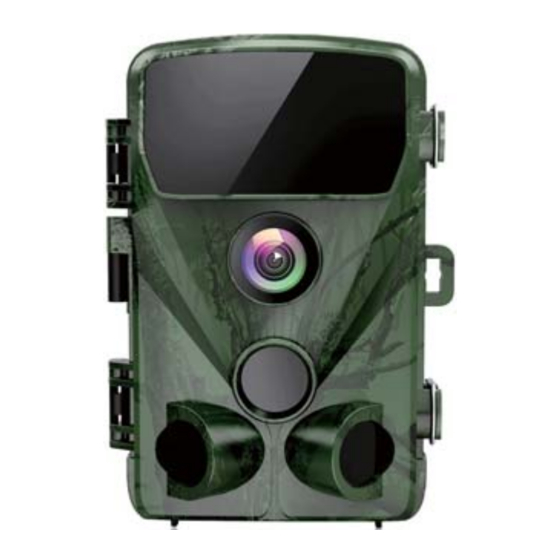

DL-2
User Manual
Thank you for purchasing our products. This manual addresses the safety
guidelines, warranty and operating instructions. Please review this manual
thoroughly before operating your device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Letscom DL-2

Summary of Contents for Letscom DL-2

  • Page 1 DL-2 User Manual Thank you for purchasing our products. This manual addresses the safety guidelines, warranty and operating instructions. Please review this manual thoroughly before operating your device.

  • Page 2: Table Of Contents

    Package Contents..........1 Introduction............1 1. ABOUT THE CAMERA..............1 2. APPLICATIONS.................2 At a Glance............2 Installing the Batteries and Micro SD Card..5 1. LOADING BATTERIES.............5 2. INSERTING THE MICRO SD CARD........6 Using the Camera..........7 The OFF, ON, and SETUP Modes.......7 1. OFF MODE................7 2.
  • Page 3 Specifications...........16 Frequently Asked Questions ......16 1. Battery life is shorter than expected........16 2. Camera stops taking images or won't take images....17 3. Still photo and/or video qualify problems........17 1). Night photos or videos appear too dark......17 2). Night photos or videos appear too bright......18 3).

  • Page 4: Package Contents

    Package Contents 1 × Trail Camera 1 × USB Cable 1 × Mounting Strap 1 × Threaded Tripod 1 × Mounting Plate 3 × Screws 1 × User Manual Note: Micro SD card and batteries are NOT included in the package. Micro SD card (Class 6 or higher up to 32GB) is recommended.

  • Page 5: Applications

    2. APPLICATIONS The camera can be used as follows: )RU KXQWLQJ REVHUYH DQLPDO WUDFNV WR VHH DQLPDO KDELWV )RU ZLOGOLIH REVHUYLQJ DQG UHVHDUFKLQJ FDSWXUHV SLFWXUHV DQG videos of wild animals $V VSRUWV FDPHUD IRU ULGLQJ GULYLQJ FDPSLQJ RU H[SORULQJ $V 0RWLRQ7ULJJHUHG VHFXULW\ FDPHUD IRU KRPH RIILFH DQG community $OO RWKHU LQGRRU RXWGRRU VXUYHLOODQFH...
  • Page 6 LCD Screen Keypad Battery Slot MENU SHOT REPLAY ON-SETUP-OFF Inside View Up Key Left Key Right Key Menu Key Shot Key MENU SHOT Replay Key OK Key REPLAY Down Key ON-SETUP-OFF Keypad and Shortcut - 3 -...
  • Page 7 Up Key for Video Mode/Option Up in Menu Mode/Next Photo/Video in Replay Mode Right Key Down Key for Camera Mode/Option Down in Menu Mode/Previous Photo/Video in Replay Mode Left Key Menu Key for Menu Entering/Exit Shot Key for Video Recording/Photo Shooting OK Key for Confirmation and Video Playing/Stopping in Replay Mode Replay Key for Photo/Video Reviewing ON, SETUP and OFF Operating Modes...

  • Page 8: Installing The Batteries And Micro Sd Card

    Micro SD Card Slot AV Port Micro USB Port DC Port Tripod Screw Nut Bottom View Installing the Batteries and Micro SD Card Before using your camera, you need to install a set of batteries and insert a Micro SD card. There are some important notes about both batteries and Micro SD cards you should be aware of, so please take the time to read the following directions and cautions: 1.

  • Page 9: Inserting The Micro Sd Card

    In SETUP mode when battery power level gets low, the message "Low Battery" will show on the screen, please replace the batteries. 2. INSERTING THE MICRO SD CARD Note: We recommend using a good quality name brand Micro SD card with C6 (or higher) speed.

  • Page 10: Using The Camera

    Using the Camera Note: Please remove the plastic protective films from the camera lens and PIR motion sensors before use. Once you've prepared your camera by properly installing batteries and a Micro SD card, you could simply take it outside, strap it to a tree (or not-according to your application scenario), switch it ON and leave.

  • Page 11: Setup Mode

    Note: When the power switch is set to ON position, the camera requires 30-60 seconds for PIR Sensor to initialize. 3. SETUP MODE In the SETUP mode you can check and change the settings of the camera with the help of its built-in LCD. These settings, found in the menu by pressing the MENU key, let you change the photo or video resolution, switch the time imprint on, and etc.

  • Page 12: Advanced Settings

    Notes: If the current file or all files are set Write protect, the file(s) cannot be deleted. If you want to delete the file(s), unlock the file(s) or format the Micro SD card. After deleting a picture or a video file, the deleted files can't be restored! It is also possible to delete all files from the card by using the Format parameter.
  • Page 13 1920×1080 Select video resolution (pixels per Video 1280×720 frame). Higher resolution produces Resolution 720×480 better quality videos, but creates (affects video 640×480 larger files that take more of the clips only) 320×240 Micro SD card capacity. Video Videos are in AVI format that can be Length AVI 5s, optional played back on most video players.
  • Page 14 Select On if you only want the camera to work within a specified time period every day. For instance, Target if the starting time is set at 18:35 and Recording the ending time at 8:25, the camera Time will function from 18:35 the current day to 8:25 the next day.
  • Page 15 Set up a password to protect your camera from unauthorized users. If you forget the password, switch the camera to the OFF mode, press the MENU and REPLAY keys at the Password same time, and then switch the Protection operating mode from OFF to SETUP. The camera is unlocked.

  • Page 16: Mounting And Positioning The Camera

    Mounting and Positioning the Camera 1. MOUNTING After you've set up the camera's parameters to your personal preferences, you're ready to take it outside and slide the power switch to "ON". When setting up the camera for scouting game or other outdoor applications, you must be sure to mount it in place correctly and securely.

  • Page 17: Sensing Angle And Distance Test

    2. SENSING ANGLE AND DISTANCE TEST To test whether the camera can effectively monitor the area you choose, this test is recommended to check the sensing angle and monitoring distance of the camera. To perform the test: Switch the camera to the SETUP mode. Make movements in front of the camera at several positions within the area where you expect the game or subjects to be.

  • Page 18: Review Photos Or Videos

    Review Photos or Videos The camera stores photos and videos in the folder \DCIM\100MEDIA in the Micro SD card. Photos are saved with file names like DSCF0001.JPG and videos like DSCF0001.AVI. The AVI video files can be played back on most popular media players, such as Windows Media Player, QuickTime, VLC, etc.

  • Page 19: Specifications

    Specifications Image Sensor 3.0Mega Pixels CMOS Lens 4G FOV=80 with Auto IR Filter PIR Sensing Angle 120° Photo Resolution 14MP, 12MP, 8MP, 5MP, 3MP, 1MP 1920×1080, 1280×720, 720×480, 640×480, Video Resolution 320×240 JPEG, AVI File Format Night Vision Range 20M with 42pcs IR LED Trigger Speed 0.4 Second LCD Screen...

  • Page 20: Camera Stops Taking Images Or Won't Take Images

    &KHFN WR PDNH VXUH \RX KDYH XVHG QHZ DONDOLQH EDWWHULHV :H recommend using eight good quality alkaline AA batteries to obtain maximum battery life. 0DNH VXUH WKDW WKH SRZHU VZLWFK ZDV WXUQHG WR WKH 21 SRVLWLRQ and that the camera was not left in SETUP mode while in the field. 0DNH VXUH WKDW \RX DUH XVLQJ D JRRG TXDOLW\ QDPH EUDQG 0LFUR SD card in your camera.

  • Page 21: Night Photos Or Videos Appear Too Bright

    2). Night photos or videos appear too bright <RX ZLOO JHW WKH EHVW UHVXOWV ZKHQ WKH VXEMHFW LV ZLWKLQ WKH LGHDO flash range, no closer than 10 ft. (3 m) from the camera. Subjects may appear too bright at closer distances. 3).

  • Page 22: Safety And Warranty

    2) To take out the Micro SD card, just gently push in the card and then it will pop out of the slot. The card is released from the slot and ready to be removed when you hear the click. 3) Be sure the camera's power is switched OFF before inserting or removing Micro SD cards or batteries.

  • Page 23: Warranty

    Warranty We strive to build our products with the highest attention to detail and craftsmanship. However, sometimes there are occurrences of defect. We are happy to offer 1-year hassle-free warranty to all our products as we continue to make amazing products. Please contact us if you have any questions about our devices.
