The Extend-A-Gun RC manual override knob may be mounted
in any one of four possible orientations (90 degrees apart).
MANUAL OVERRIDE
KNOB ON
EXTEND-A-GUN
1-1/2 TURNS
APPROX. 37 IN.
The Extend-A-Gun manual override knob may be mounted in any of four possible orientations (90 degrees apart) relative to the Straight
Ahead Reference Mark on the monitor.
NOTE: Hurricane RC monitor, for use with Extend-A-Gun RC, comes with the wire installed in a nylon tube. The nylon tubing gives the
wire additional stiffness so it better follows as the Extend-A-Gun RC extends or retracts. A fitting is also supplied and is to be used where
the nylon tubing and wire pass though the deck.
3/4 TURNS
APPROX. 33 IN.

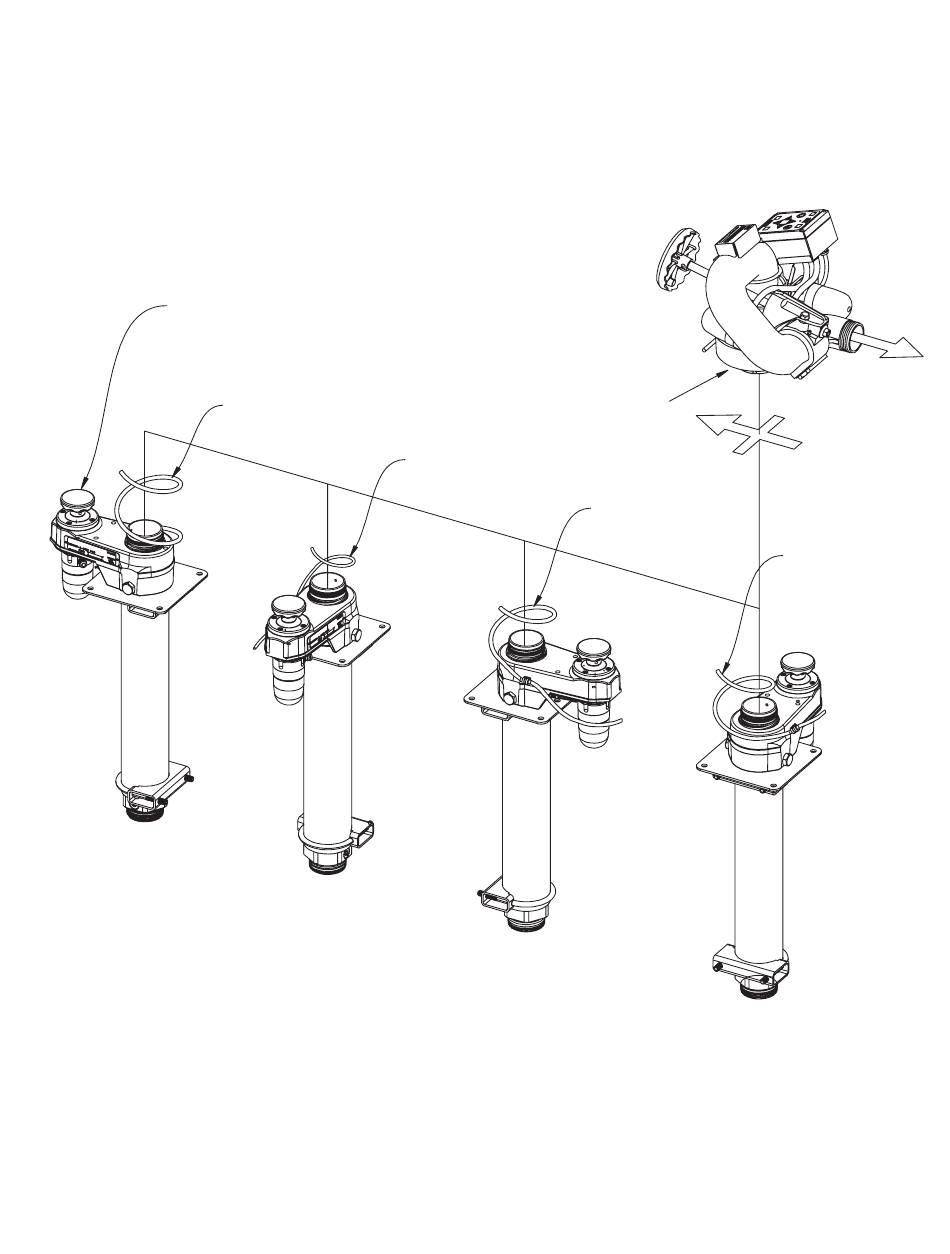

FIG 4.2B
Possible Extend-A-Gun RC Mounting Orientations
9
STRAIGHT BACK
REFERENCE MARK
(SEE FIGURE 4.2A)
1 TURN
APPROX. 33 IN.
1-1/4 TURNS
APPROX. 34 IN.
