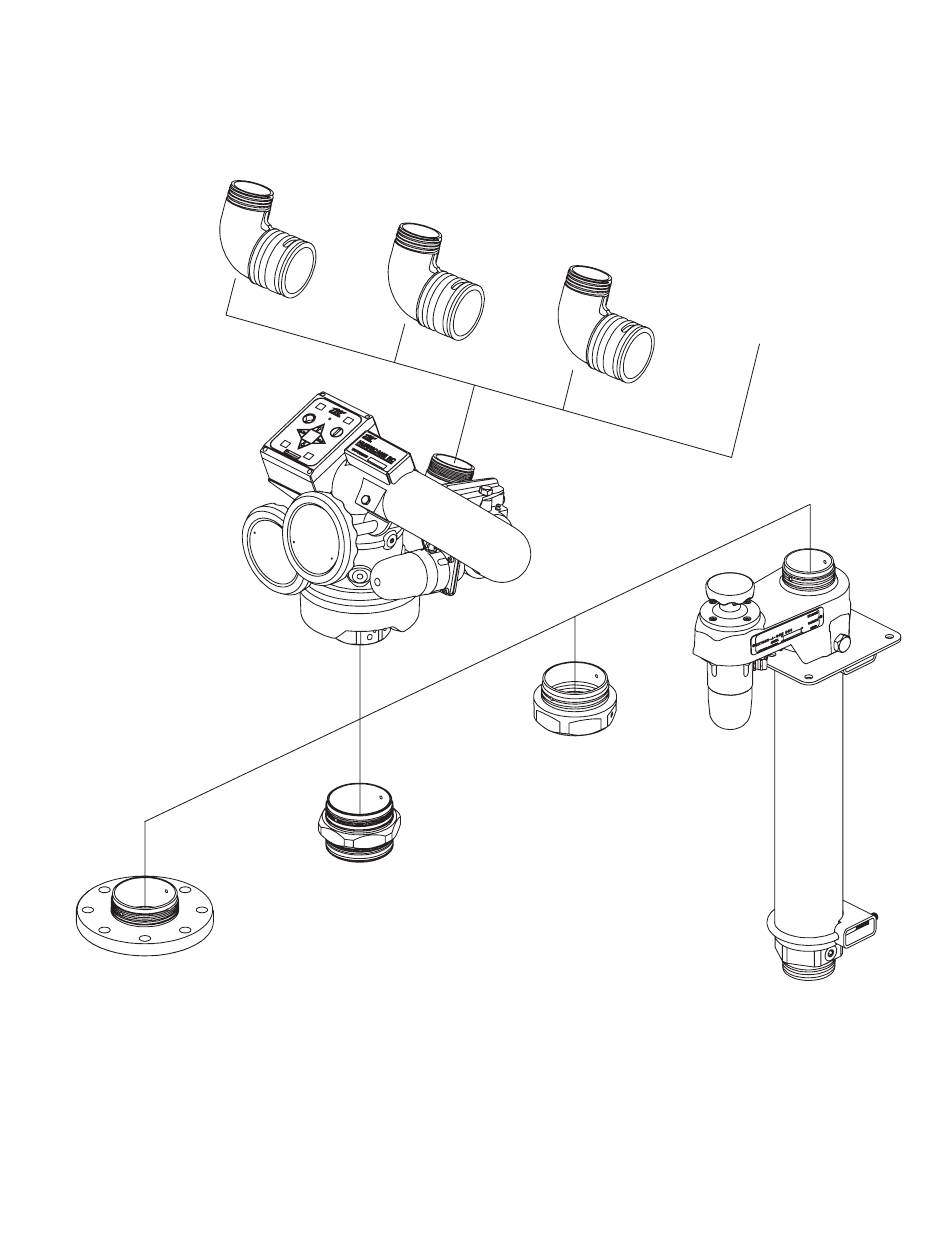

3.3 INLETS AND OUTLETS
The standard Hurricane RC Monitor inlet is CODE-RLF for direct connection to TFT's Extend-A-Gun RC3. Monitor inlet CODE-RPF is
available for direct connection to Extend-A-Gun RC4. The standard outlet is 2-½"-6 National Hose male. Various other inlet and oputlet
fittings are available as shown in Figure 3.3.
2.5"-7.5 NH
(65mm) MALE
CODE-RLF FEMALE
or
CODE-RPF FEMALE
3.0"ANSI 150 (Y4410A)
or
4.0"ANSI 150 (Y4415A)
or
DN80, PN16 (Y4423A)
or
DN100, PN16 (Y4425A)
FLANGE
2.5"-11 BSP
(65mm) MALE
3.0"BSP MALE (Y4420A)
or
4.0"BSP MALE (Y4430A)
Inlets And Outlets
2.5"-11.5 NPSH
(65mm) MALE
3.0" NPT FEMALE (Y4440NL)
or
4.0" NPT FEMALE (Y4450NP)
FIG 3.3
5
SPECIAL
THREADS
EXTEND-A-GUN RC3
or
EXTEND-A-GUN RC4
