3.1.2 ELECTRICAL SPECIFICATIONS

Nominal Operating voltage:
Motor current:
Elevation motor:
Horizontal rotation motor:
Nozzle motor:
At rest current:
Recommended fuse or circuit breaker size:
Operating temperature range:
Environmental Rating: All components designed to meet minimum rating of NEMA 4 (IP65).
Wireless Operator Station
Charging Cradle
Nominal Operating Voltage
Operating Current
Recommended Fuse or Circuit Breaker
Transmitter Batteries
Transmitter Power
Operating Frequency
Agency Approvals

3.2 PART IDENTIFICATION AND MODELS

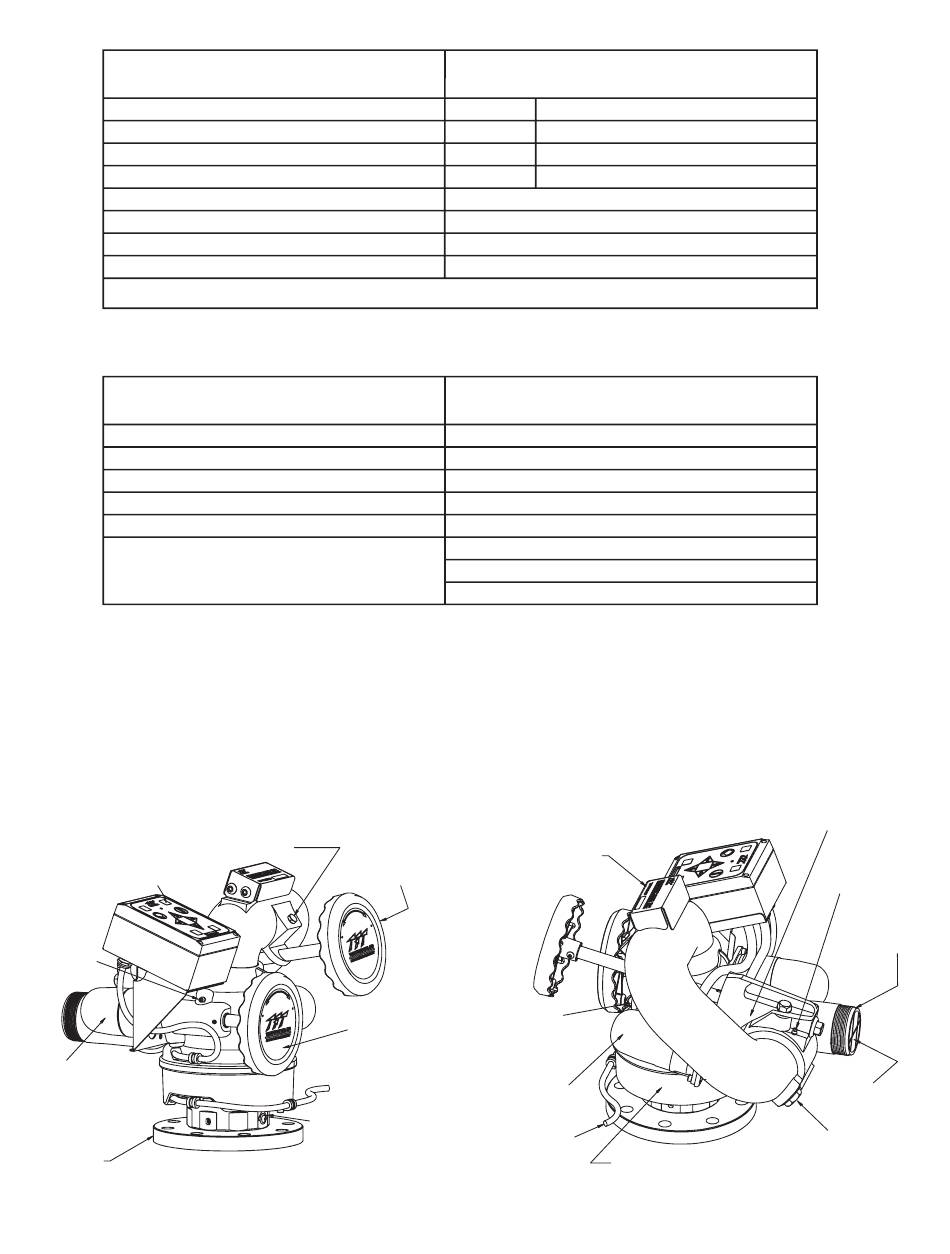

The Hurricane RC Monitor as shown in Figure 3.2 along with the names of some various parts and controls.
CONTROL STATION BOX
WITH CONTROL BUTTONS
(SEE SECT. 6.2.1.1)
GREASE ZERK
(SECT. 8.1)
HORIZONTAL
MOTOR (SECT. 9.3)
INLET
(FIGURE 3.3)
PORT FOR
PRESSURE GAGE
ELEVATION
(SECT. 4.5)
HANDWHEEL
(SECT. 6.1)
HORIZONTAL
ROTATION
HANDWHEEL
(SECT. 6.1)
STRAIGHT BACK
REFERENCE MARK
(SECT. 4.2)
Part Identification
12 or 24 VDC
(field changable)
Nominal* Limit
6 amps 15 amps
6 amps 10 amps
1 amp 5 amps
*with rated water pressure applied
.25 amps
15 amps @ 12 volts, 7.5 amps @ 24 volts
-30°F to +120°F (-34°C to +49°C)
12 or 24 VDC
0.15 amps
2 amps
Uses four (4) AA NiCad Batteries
5mW
2.4 GHz
FCC Part 15 - United States
ISC - Canada
CE - European Union
PRODUCT NAME LABEL
WITH
SERIAL# & MODEL #
HORIZONTAL
ROTATION TRAVEL
STOPS 5 PLACES
(SECT. 4.4)
ELEVATION
MOTOR (SECT. 9.3)
POWER CABLE
FIG 3.2
4
WIRE SKIRT/CABLE GUIDE
(SECT. 9.1)
ELEVATION DRIVE
HOUSING
(SECT. 9.2)
GREASE ZERK
(SECT. 8.1)
OUTLET
(FIGURE 3.3)
BUILT IN
STREAM
STRAIGHTENER
AUTOMATIC
DRAIN
(SECT. 4.6 & 6.4)
