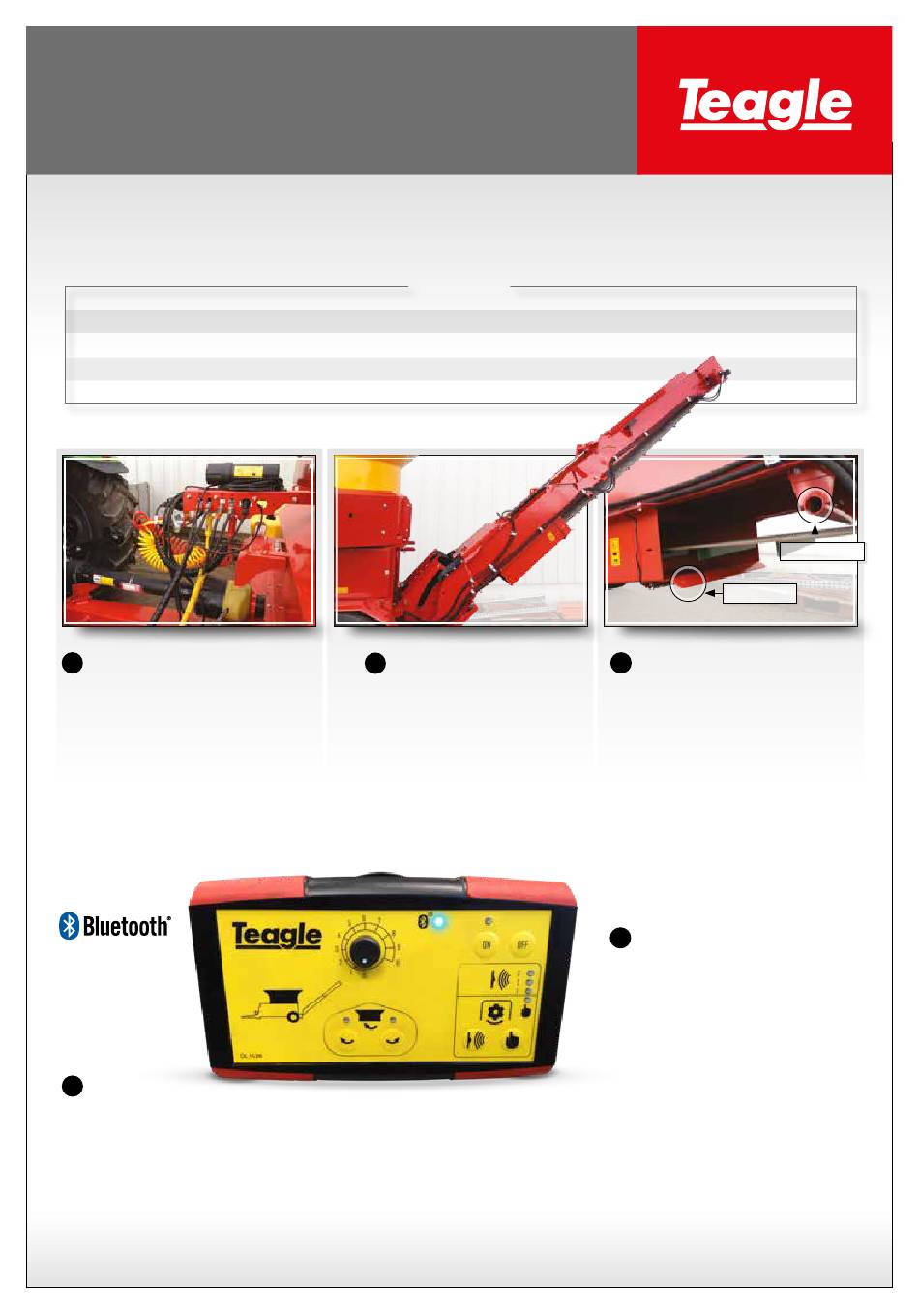

Teagle C12 Quick Start Manual

C12
QUICK START GUIDE
OVERVIEW: COMPLETELY READ THE C12 QUICK START GUIDE DOCUMENT
BEFORE COMMENCING OPERATION INSTALLATION
Output capacity:
Up to 11t/hr
Tractor HP:
Minimum 160—200
Material output:
13-125mm
CONNECTING THE C12
1
ONTO THE TRACTOR
Connect all of the following fittings:
•
Pick up hitch
•
PTO
•
Brakes
•
Hydraulic hoses
•
Electrics, both the junction box
and the light sockets
SEE THE MANUAL FOR
MORE INFORMATION
ON PAIRING THE
DEVICES.
FITTING
4
THE CONTROL BOX
A special 4.5mm core, 6 metre twin core cable with 15 amp blade
type fuse is supplied with the machine. The end with two eyelets
must be fitted to the battery of the tractor with the cable routed
in a suitable position without causing damage to the lead during
operation. If the connector provided on the supply lead is not to
be used, it is essential that the 15 amp fuse is retained to prevent
damage resulting from current overload.
SPECIFICATIONS
C12 Flow rate: 65 lpm with an automatic oil cooler
Electronic needed: 2 x 3 pin 12V sockets (1 x cable supplied)
Oil fittings needed: 2 x double acting valves
UNFOLDING
2
THE CONVEYOR
Do not run the PTO until the
conveyor belt is straight &
lowered.
The minimum discharge height
of the conveyor belt is 2.5metres
and the maximum is 4.2metres.
Tubular beam
Headguard
CONVEYOR BELT
3
CLEARANCE
When the conveyor is at the lowest
height (2.5m), the belt should just clear
the headguard. When the conveyor is
at the highest height (4.2m), the belt
should just clear the tubular beam.
Keep the belt as slack as possible. Do not
adjust unless it is absolutely necessary.
Belt tension can be adjusted at the top and
the base of the conveyor.
Images of belt tension (highest/lowest tension)
CONTROL BOX
5
CONNECTION
The control box is supplied with a suction
cup attachment. This should be fitted
in the cab in a suitable position that is
convenient to the operator on a smooth,
clean dust free surface.
The control box requires a 12v supply
and is shipped with 3 pin plug as
standard. A cigarette lighter to 3 pin
socket cable is supplied and can be used
for just the control box.
Once the junction box is plugged in, plug
the control box in & wait for the blue
flashing light to became solid blue which
indicates bluetooth is paired.
C12 Quick Start Guide page 1
