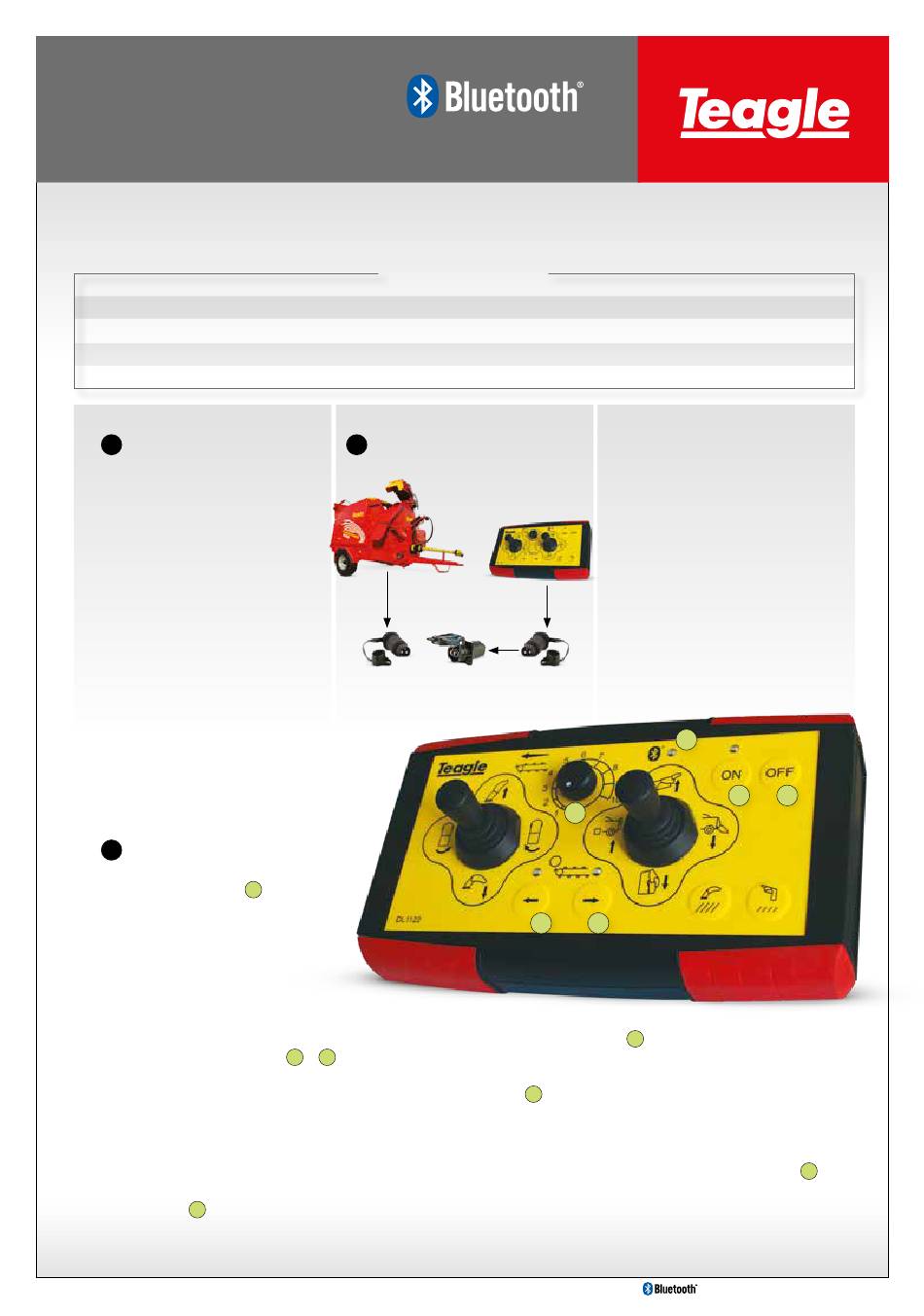

Teagle Tomahawk Installation Manual

TOMAHAWK
INSTALLATION GUIDE
PLEASE READ THIS INSTALLATION GUIDE
Electrical fittings: 12V Female Cobo socket connector (in cab)
Oil flow: An oil flow of 60 litres per min (13.3 gallons per min) is required to achieve maximum performance.
Oil flows in excess of 60 litres/min will result in overheating.
FITTING THE MACHINE
1
TO THE TRACTOR
Attach the Tomahawk drawbar and
PTO shaft to the tractor. Connect the
supply and return hydraulic hoses,
ensuring the direction of flow is
correct.
The control desk is supplied with a
suction cup attachment. This should
be fitted in the cab in a suitable
position that is convenient to the
operator on a smooth, clean, dust
free surface. (i.e. the window.)
1
THE BLUETOOTH
CONNECTION
Once the Bluetooth light
flashing and is illuminated you are ready to
proceed. If it does not stop flashing then
it has failed to make a connection and the
control desk will not turn on.
PAIRING A CONTROL DESK TO A MACHINE
Should the control desk fail to connect to the machine, then
press the "ON" and "OFF" buttons
seconds. This will make the control desk search for the Bluetooth
signal from the Tomahawk.
COMMISSIONING
With the bale chamber empty, engage the PTO at low revs, then
increase to normal working speed (540rpm) and start the oil
flow to the Tomahawk. Press the "power on" button when the
Bluetooth light 1 is illuminated. Check chute rotation, deflector
and tailgate functions work.
THOROUGHLY BEFORE COMMENCING
TRACTOR REQUIREMENTS
ELECTRICAL CONNECTIONS
2
TO THE CONTROL SYSTEM
To tractor in-cab 12V supply
1
has stopped
2 & 3 together for 2
• Connect the control desk power
supply lead into the 12V female Cobo
socket in the tractor cab.
• Connect the Tomahawk power supply
lead to the 12V female Cobo socket on
the flying lead connected to the control
desk.
• If in doubt, listen for a "click" from the
junction box under the cover at the
front of the Tomahawk, which tells you
it has power.
• If the supply cable is connected with
the wrong polarity the control box will
not switch on.
6
4 5
BED CHAIN
Press the forward button to start the bed chain. If the
4
bed chain is set to '0' the bed should be stationary. The bed
can be stopped by either pressing the forward or reverse
5
button . You can reverse the bed chain by holding the
reverse button down.
BED CHAIN SPEED
The bed chain speed can be adjusted by turning the dial
from '0' to '10' . If the bed is rotating when the dial is set to '0' ,
then you need to re-calibrate the bed speed. See over page
for details.
Tomahawk
1
2 3
6
Controls Quick Start Guide page 1
