Page 2
Ref. Description Grease Nipple – Rear Bed Chain Roller Bush Grease Nipples x 2 – At ends of SC Chute Ram Ref. Description Grease Nipples x 4 – SC Swivel mechanism Ref. Description Grease Nipple - Cross beater bearing Grease Nipple - Bed Chain front roller bearing For More Detailed Information See Pages 10 to 11...
Page 3
EC Declaration of Conformity conforming to EEC Directive 2006/42/EC Teagle Machinery Ltd. Blackwater Truro Cornwall TR4 8HQ United Kingdom declares in sole responsibility that the TELEHAWK Spreader to which this certificate applies conforms to the essential Health and Safety requirements of EEC Directive 2006/42/EC &...
SAFETY FIRST! 1. READ THE INSTRUCTION BOOK THOROUGHLY 6. NEVER STAND BETWEEN THE MACHINE before attempting to operate or carry out any AND THE LOADER WHEELS. maintenance on the machine. If you do not 8. DO NOT WEAR LOOSE OR RAGGED CLOTHING understand any part of this manual, ask your dealer 9.
Page 5

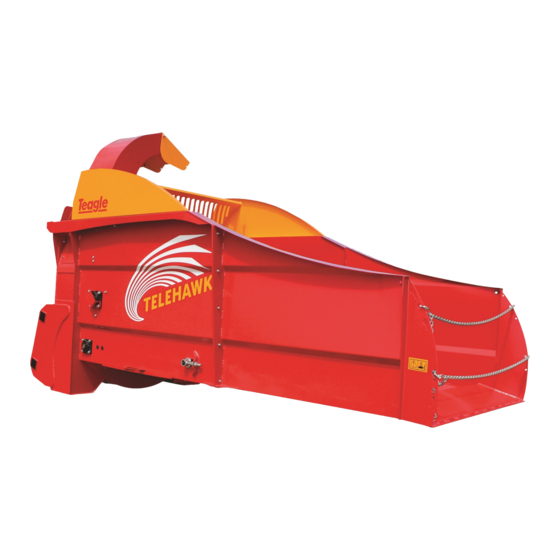

Use of the Telehawk Use on the public highway Loader Specification Fitting the junction box onto the loader Fitting the control box onto the loader Preparation of the Telehawk Fitting the Telehawk onto the loader Operation Commencing Operation Maintenance Disposal FAULT FINDING CHART...
Page 7
Blockage Removal Tool * Important Note: 27.5 Imp Gal/ min = 33.0 US Gal/min DECALS Description Part No. Q’ty Description Part No. Q’ty Teagle - front housing DL1320 Do not permit riders DL1036 Teagle - sides DL1389 Read instruction book DL1006 Telehawk...
Page 8
FITTING THE JUNCTION BOX LEAD ONTO THE appropriate machinery either directly into the LOADER Telehawk or into a position where they can be self A 6 metre twin core cable with 7.5 amp blade type fuse loaded. Do not manually load bales from the stack is supplied with the machine.
Page 9
Once the end of the bale is inside the Telehawk, slightly lift the bale FITTING THE TELEHAWK ONTO THE LOADER and continue driving until the bale is in the machine. Do Attach the Telehawk to the loader headstock engaging not force the bale into the crossbeater.
Page 10
In general damp or matted straw will require a relatively high power input. In the cross beater hydraulic circuit, the Telehawk has a sensor that monitors the oil pressure. When the pressure becomes too high, the sensor switches the bed chain and cross beater into unloading to prevent the machine from blocking.
Page 11
2 links from either side, re-join and tension. (see figure 5 below). HOOK RIPPERS / BLADES The Telehawk has been supplied with hook rippers as standard. It is possible to fit blades instead. Extreme care must be taken when carrying out maintenance work on or around the blades (if fitted) as they are incredibly sharp.
Page 12
90N/m (67 ft lb) See contamination is happening regularly. figure 6. If problems are experienced with either the hydraulic system or electric controls, please contact Teagle Machinery Ltd. for advice as a separate manual is available to cover troubleshooting and repair. LUBRICATION...
Page 13
DISPOSAL At the end of the machine’s working life, the method of disposal must be within the legislation laid down by the local authority or the National Environment Agency. The machine is composed of ferrous materials, synthetic paints and rubber compounds. Figure 7.
Page 14
TELEHAWK FAULT FINDING CHART – PART 1 Symptom Fault Possible Solutions Bale fed too quickly into crossbeater. Reduce bed chain speed. High power consumption. Hook rippers too aggressive. Replace hook rippers with blades. Fan rotor won't Bale jammed hard against crossbeater.
Page 15
TELEHAWK FAULT FINDING CHART – PART 2 Symptom Fault Possible Solutions Fan motor seals Back pressure in return line greater than Check return line pressure and fit a minimum leaking. 20bar (290psi). 3/4” free flow return pipe back to tank if pres- sure greater than 20bar (290psi).
Page 16
BODY Ref. Description Part No. Q’ty. Associated components Part No. Q’ty. Bolt on extension SC6110 Setscrew M10 x 25 FAS2654P 10 Plain washer M10 FAS2344GP 20 Locknut M10 FAS2333 10 Rotor c\w paddles (Items 2 & 4) SC6131 Paddle (5 bolt fixing) SC4571 Setscrew M12 x 30 FAS2678P 32...
Page 17
Ref. Description Part No. Q’ty. Associated components Part No. Q’ty. Locknut M10 FAS2333 10 Upper body panel RH SC6121 Setscrew M10 x 25 FAS2654P Plain washer M10 FAS2344P 10 Locknut M10 FAS2333 11 Hose clamp 1/4” HYD1960 Setscrew M8 x 35 FAS2631P 12 Blockage removal tool SC1247...
Page 23
Ref. Description Part No. Q’ty. Associated Components Part No. Q’ty. 13 Front sprocket SC6104 Bed Drive Spacer SC6106 14 Hydraulic motor mount SC6105 Cup square bolt M12 x 25 FAS9282P Locknut M12 FAS2334 Plain washer M12 FAS2345P 15 Bed chain hydraulic motor HYD5244 Setscrew M12 x 40 FAS2680P...
Page 24
BED CHAIN SPEED ADJUSTMENT Programing your Control Desk to your Loader. Each loader has different flow rates from its hydraulic system. The control desk is programmable to optimise the performance of the machine depending on the oil flow that the loader can deliver. The following instructions will allow you to programme the stop position and high speed position of the bed speed dial.
FAS2329S Power cable 6m SC5826 (Including fuse, holder and eyelets) Neutrik female socket only SC5837 7.5 A fuse SC3535 Telehawk boom bracket SC6142 Curly cable –junction box SC5825 (Including cable and male plug) Neutrik male plug only SC5838 TRANSPORT BRACKETS...
HYDRAULIC HOSES Ref. Description Part No. Qty. Associated Components Part No. Qty. A Fan motor supply hose HYD2351 3/4” BSP M/M union HYD1015 Bonded Seal 3/4” BSP HYD4205 Flat Face 3/4" female HYD1941 B Return hose HYD2352 3/4” BSP M/M union HYD1015 Bonded Seal 3/4”...
Ref. Description Part No. Qty. Associated Components Part No. Qty. K Chute swivel motor hose HYD2081 1/4”-1/2” BSP M/M union HYD1114 Bonded seal 1/2” BSP HYD4204 Chute ram hose HYD2082 1/4”-1/2” BSP M/M union HYD1114 Bonded seal 1/2” BSP HYD4204 M Fan motor bleed hose HYD2080 3/4”...
