schmersal BN 80 Series Operating Instructions

Operating instructions

Magnetic reed switches
Operating instructions. . . . . . . . . . . . .pages 1 to 2
EN
Original

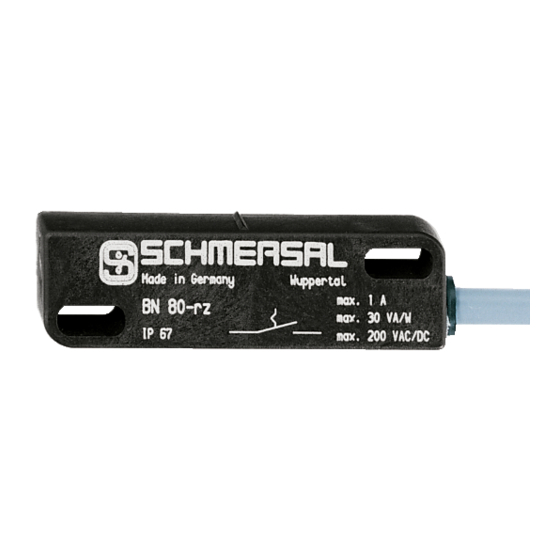

Product description
The magnetic reed switch has been developed for situations in which
minimal clearance is available. Despite its compact dimensions, its
switching capacity is sufficient to switch a relay.
The NC or NO function depends on the actuating direction and the
polarity of the actuating magnet. The actuators for the magnetic safety
sensors must be ordered separately.
Ordering code
This operating instructions manual applies to the following types:
BN 80 - Z
➀
No. Option Description
01 1 NC
➀
10 1 NO
R 1 bistable contact
Technical data
Enclosure:
Operating principle:
Actuating magnet:
2 x BP 15 S, BP 34 S, 2 x BP 34 S, BP 20 S, BP 20 S,
BP 31 S, BP 11 S, BP 12 S (not included in delivery)
Protection class:
Ambient temperature:
- Storage temperature:
Electrical connection:
Switching voltage:
- BN 80-RZ:
- BN 80-10Z/-01Z:
Switching current:
- BN 80-RZ:
- BN 80-10Z/-01Z:
Switching capacity:
- BN 80-RZ:
- BN 80-10Z/-01Z:
Sparkover voltage:
Switching time "Close":
Switching time "Open":
Bounce duration:
Mechanical life:
Electrical life:
Resistance to vibration:
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The currently valid declaration of conformity can be
downloaded from the internet at www.schmersal.net.
Dimensions (in mm)
Magnetic reed switches BN 80
44
33,5
4
EN
glass-fibre reinforced thermoplastic
BP 6 S, BP 7 S, BP 10, BP 10 S, BP 15 S,
IP67 to IEC 60529
–25 °C ... +75 °C
Cable LiYY 2 x 0.25 mm², 1 m
max. 200 VAC/DC
max. 250 VAC/DC
max. 30 VA, W
max. 10 VA, 8 W
> 450 VAC (50 Hz)
max. 0.07 ms
max. 0.5 ms
1000000000 operations
5,000,000 operations
depending on load
15 g on sine wave oscillation
1000
BN 80
magnetic
max. 1.5 A
max. 0.5 A
max. 2 ms
1
