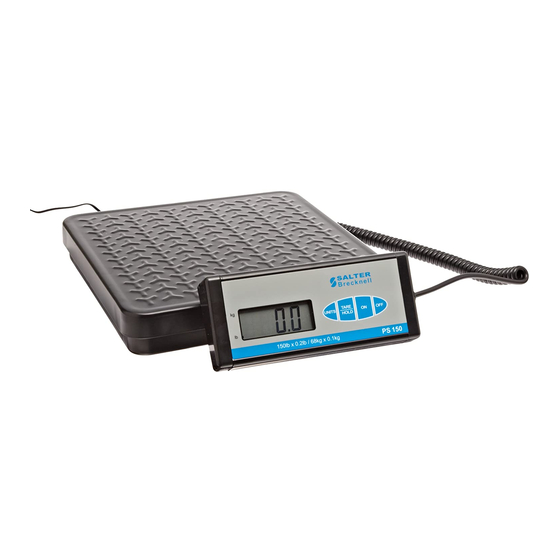

Table of Contents Chapter 1 General Information and Warnings ..................4 About this Manual ......................4 Text Conventions ......................4 Special Messages ....................... 4 FCC Compliance Statement ....................5 Specifications ........................6 Description of Parts ......................6 Installation .......................... 6 Battery Installation ......................
1.1.1 Text Conventions The keys used to interface with the PS 150 and PS 400 are located on the front panel of the indicator. The keystrokes are shown in BOLD incased between brackets. (e.g.
1.2 FCC Compliance Statement WARNING! This equipment generates, uses and can radiate radio frequency and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
1.6 Battery Installation The Digital Receiving Scale operates with (6) "AA" batteries (Alkaline preferred). Place unit upright on a flat surface and lift platform from top of scale. Remove battery compartment door and insert batteries into compartment. Make certain to observe the correct polarity. Replace compartment door and platform cover on scale.
1.8 Mounting the Indicator Mount bracket to wall using (2) screws that are appropriate anchors for the surface being mounted to. Lower control panel into mounted bracket. Insert flat tip screws (included) through round holes in mounting bracket and drive the screws into existing threaded holes in lower half of control panel to secure control panel to bracket.
1.11 Cleaning the Indicator Table 1.1 Cleaning DOs and DON’Ts DO NOT Wipe down the outside of standard products Attempt to clean the inside of the indicator with a clean cloth, moistened with water and Use harsh abrasives, solvents, scouring cleaners or a small amount of mild detergent alkaline cleaning solutions Spray the cloth when using a proprietary...
General Operation 2.1 Display and Function UNITS Display Button Button 0. 0 TARE UNITS HOLD PS 400 TARE / HOLD Display Display Button Button 2.2 Keypad Tare/Hold Button When pressed one time the scale will tare (zero out) the load on the platform. When pressed and held for 2 -3 seconds any load on the scale will continue to show on the display even after the load has been removed.
2.3 Functions 2.3.1 Power on To turn the scale on, press the button marked "ON". The display will first show " 8888" for approximately two (2) seconds, then display " 00". This indicates that the scale is ready for use. 2.3.2 Weighing When the display shows "00 "...
2.4 Error and Status Messages 2.4.1 Low Battery If battery is discharged, the display will show the"bAtt" message. The operator should replace the batteries. batt 2.4.2 Over Load oooo If the total load exceeds the maximum capacity of scale, the display will show the " "...
Page 18
Renseignements et avertissements généraux Le modèle PS 150 est une balance de réception numérique de 68 kg (150 lb). Le modèle PS 400 est une balance de réception numérique de 181 kg (400 lb). Les deux unités sont alimentées par batteries. La balance est équipée d'un écran amovible qui peut être placé...
Page 19
1.2 Déclaration de conformité FCC AVERTISSEMENT! Cet équipement génère, utilise et peut émettre de l'énergie de fréquences radio et, s’il n’est pas installé et utilisé conformément au mode d'emploi, peut causer des interférences dommageables aux radiocommunications. Il a été testé et déclaré...
Page 20
1.3 Caractéristiques Capacité (LB) : PS 150 = 150 lb x 0,2 lb PS 400 = 400 lb x 0,5 lb Capacité (KG) : PS 150 = 68 kg x 0,1 kg PS 400 = 181 kg x 0,2 kg Source 6 batteries AA avec arrêt automatique...
Page 21
1.6 Installation des piles La balance de réception numérique fonctionne avec (6) piles « AA » (de préférence alcalines). Placer l'unité sur une surface plate et lever retirer le plateau du haut de la balance. Retirer le couvercle du compartiment des piles et insérer celles-ci. S'assurer de respecter la polarité...
Page 22
Pour activer à nouveau la fonction d'arrêt automatique, répéter les étapes 1 et 2, et le message « A_on » apparaît. La fonction d'arrêt automatique est maintenant activée. 1.8 Montage de l’indicateur Monter le support au mur en utilisant (2) vis qui sont des ancrages appropriés pour la surface sur laquelle elles sont fixées.
Page 23
1.10 Objets pointus Ne pas utilise d’objets tranchants tels que des tournevis ou des ongles longs pour actionner les touches. 1.11 Nettoyer l’indicateur Table 1.1 Nettoyage - ce qu'il FAUT faire, ce qu'il ne FAUT PAS faire Ce qu'il FAUT faire Ce qu'il ne FAUT PAS faire Essuyer l’extérieur des produits standards Tenter de nettoyer l’intérieur de l’indicateur...
Page 24
Fonctionnement général 2.1 Affichage et fonction affichage Bouton UNITS Touche ON UNITS Display (Unités) (Marche) Button Button 0. 0 TARE UNITS HOLD PS 400 Affichage Écran Bouton TARE / HOLD Touche TARE / HOLD Display (TARE / RETENIR) OFF (Arrêt) Display Button Button...
Page 25
2.3 Fonctions 2.3.1 Mettre en marche Pour allumer la balance, appuyer sur le bouton « ON » (Marche). L'écran affiche d'abord « 8888 » pendant environ deux (2) secondes, puis « 00 ». Cela indique que la balance est prête à être utilisée. 2.3.2 Pesée Lorsque l'écran affiche «...
Page 26
Pour désactiver la fonction Weight hold (Retenir le poids), appuyer sur le bouton [HOLD] (Retenir) et le maintenir enfoncé pendant 3 secondes. L'écran affiche « H_oF ». 2.4 Messages d'erreur et d'état 2.4.1 Batteries faibles Si la batterie est déchargée, l'écran affiche le message « bAtt ». L'opérateur doit remplacer les batteries.
Page 28
Brecknell USA 1000 Armstrong Dr. Fairmont MN 56031 Tél. : 507-238-8702 Télécopie : 507-238-8271 Courriel : sales@brecknellscales.com http://www.brecknellscales.com Brecknell UK Foundry Lane Smethwick, West Midlands, England B66 2LP Tél. : +44 (0) 8452 46 6717 Télécopieur : +44 (0) 8452 46 6718 Courriel : sales@brecknellscales.co.uk...
