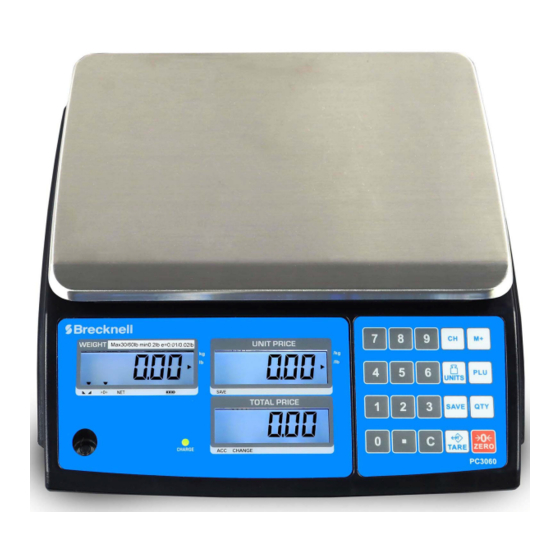

Brecknell PC3060 User Instructions

Brecknell PC3060 User Instructions

Price computing scale

Advertisement

PC3060
Price Computing Scale
User Instructions
AWT 35-501856
Issue AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC3060 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brecknell PC3060

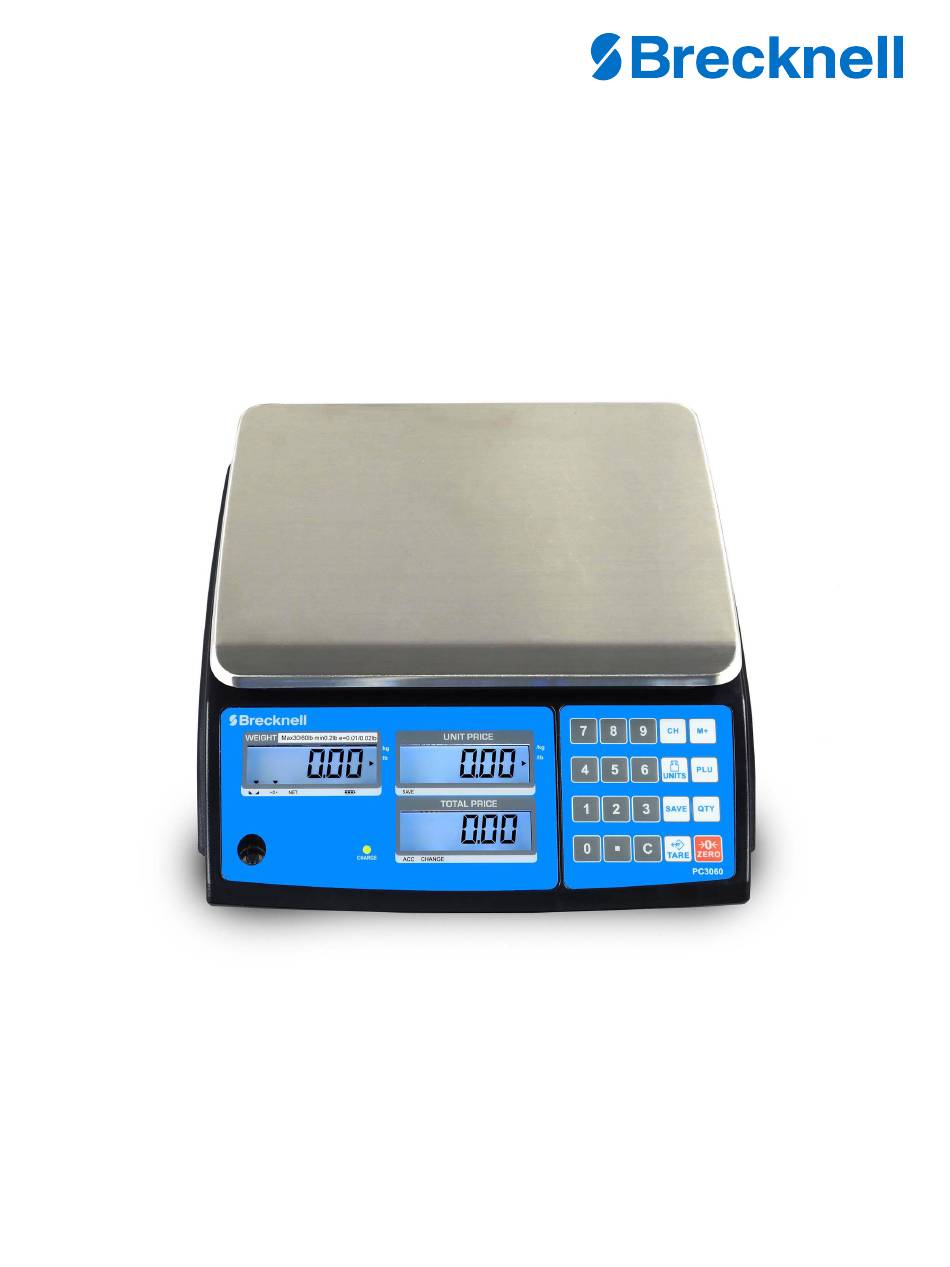

  • Page 1 PC3060 Price Computing Scale User Instructions AWT 35-501856 Issue AA...
  • Page 2 Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2019 Illinois Tool Works. All rights reserved. No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional work and the making of a copy in two dimensions of a three-dimensional work, stored in any medium by electronic means, or transmitted in any form or by any means, including electronic, mechanical, broadcasting, recording or otherwise without the prior written consent of the copyright owner, under license, or as permitted by law.
  • Page 3: Table Of Contents

    Enter Fxx Menu settings .................... 22 Activating the Parameters ..................23 Parameter Menu Block ....................23 Chapter 6 Calibration ..........................25 Chapter 7 Miscellaneous ......................... 26 RS232 output ........................26 Print Format ....................... 26 Error codes ........................27 PC3060 Price Computing Scale User Instructions...
  • Page 4 Replacement parts ......................27 Sealing ..........................28 PC3060 Price Computing Scale User Instructions...
  • Page 5: Chapter 1 General Information And Warnings

    Cautions give information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data. NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. PC3060 Price Computing Scale User Instructions...
  • Page 6: Installation

    DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. The PC3060 price computing scale is a precision electronic instrument. Handle it carefully. Do not install the scale in direct sunlight.
  • Page 7: Safe Handling Of Equipment With Batteries

    Always turn off the machine and isolate from the power supply before starting any routine maintenance to avoid the possibility of electric shock. Make sure that it is placed securely on a flat and level surface. PC3060 Price Computing Scale User Instructions...
  • Page 8: Cleaning The Machine

    Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. PC3060 Price Computing Scale User Instructions...
  • Page 9: Chapter 2 Specifications

    Stabilisation Time 1 Seconds typical Power AC Adaptor 12V/500mA, Rechargeable Battery 6V/3.2Ah Keypad 20 keys Zero range 0mV~5mV Signal input 0~15mV range Sigma delta Internal counts 600,000 ADC update Max 60 times/second Load cell drive Max 5V/150mA voltage PC3060 Price Computing Scale User Instructions...
  • Page 10: Dimensions

    2.1 Dimensions PC3060 Price Computing Scale User Instructions...
  • Page 11 PC3060 Price Computing Scale User Instructions...
  • Page 12: Chapter 3 Introduction

    Introduction The PC3060 price computing scales are accurate, compact, and very reliable. 3 easy-to-read backlit LCD displays; both front and rear make it ideal for use in low light conditions. 10 indirect PLUs, can store up to 10 unit price values for quick and easy...
  • Page 13: Connect Adaptor

    Do not use any other type of power adaptor than the one supplied with the scale. Verify that the AC power socket outlet is properly protected. Charge the battery before using the scale for the first time. PC3060 Price Computing Scale User Instructions...
  • Page 14: Parts Description

    Returns the display to zero. In parameter settings, used to escape from the menu. Subtracts the tare values, change from gross to net mode and to enter parameter settings. Enter to auto clear mode PC3060 Price Computing Scale User Instructions...
  • Page 15: Displays

    Stable indicator. When illuminated, the scale is stable. ZERO Zero indicator. When illuminated, the scale is within the Zero window. kg/lb Current weighing unit SAVE Save Indicator CHARGE Battery charging indicator Accumulation indicator Checkout indicator PC3060 Price Computing Scale User Instructions...
  • Page 16: Chapter 4 Operation

    Operation 4.1 Initial startup To get the best performance from your PC3060, please allow a warm-up time of around 15 minutes to help stabilize the measured values after switching on. 4.1.1 Power ON/OFF Power switch is located under the scale on the right-hand side. To switch on the scale, press and hold the on/off switch until the scale Beeps.
  • Page 17: Unit Price Setting

    TOTAL PRICE display. 4.1.6 Unit Price Memory The PC3060 can store up to 10 unit price values. Price values can easily be selected using the 0 to 9 numeric keys. Saving a Unit Price to PLU memory Make sure you are in the correct unit of measure before starting.
  • Page 18: Back Light

    PLU unit price. See example at right. 4.1.7 Back light The PC3060 has the option to change the back light setting to help save battery life. Choices are AUTO – ON –OFF. Factory default is AUTO. In normal weighing mode, press...
  • Page 19: Automatic Unit Price Clear

    To turn off this feature, repeat this process. 4.1.9 Units of Measure Subject to the markets the PC3060 is to be used in, the UNITS key may be deactivated so the unit of measure cannot be changed. In the markets where lb and kg can legally be used, the UNITS key is active.
  • Page 20: Give Change

    QTY key. Enter the quantity (a quantity of 5). The WEIGHT display will show 5 and the TOTAL PRICE display will now show the total price ($7.80). PC3060 Price Computing Scale User Instructions...
  • Page 21 Press the QTY key to return normal weighing mode PC3060 Price Computing Scale User Instructions...
  • Page 22: Chapter 5 Parameter Settings

    . The display will show Pn - - - -. Press the TARE key to confirm. The scale will now give you access to the parameter settings of the PC3060 and the display will show menu unit kg or 5.1.1 Enter Fxx Menu settings Press the TARE key to enter the parameter listed on the display.
  • Page 23: Activating The Parameters

    Multi - Tare function ON F7 SCSIUE tare Multi - Tare function OFF F8 ISN This display will show XXXXX for indicating the internal counts. F9 Gra To set your local gravity value. F10 Reset Factory default settings PC3060 Price Computing Scale User Instructions...
  • Page 24 7 data bits, Even verify, 1 stop bit 7 data bits, Odd verify, 1 stop bit Press the UNITS key to choose kg or lb unit in the setting mode, capacity will be shown in kg or lb values. PC3060 Price Computing Scale User Instructions...
  • Page 25: Chapter 6 Calibration

    When the weight becomes stable, press the TARE key to confirm… PASS is briefly displayed and then F0 Cal. Calibration is now complete. Remove calibration weight from the platform. Press the ZERO key to go back to the weighing mode. PC3060 Price Computing Scale User Instructions...
  • Page 26: Chapter 7 Miscellaneous

    Miscellaneous 7.1 RS232 output The PC3060 Series of scales can be connected to a standard printer using the RS-232 output found under the scale. 7.1.1 Print Format ************************ ************************ NET 10.000 Total Unit Price $ 300.00 $ 30.00 /lb Price $ 310.00...
  • Page 27: Error Codes

    Power supply USA (input 100-240V 50/60Hz 0.25A output 12V 0.5A) AWT25-502480 Power supply UK (input 100-240V 50/60Hz 0.25A output 12V 0.5A) Replacement battery AWT20-509299 Replacement feet Kit (4 feet and lock nuts) AWT20-509300 Replacement top pan PC3060 Price Computing Scale User Instructions...
  • Page 28 All sealing to be carried out in line with NTEP CC #18-119, or EC approval cert: 0200-NAWI-05154, A wire seal is passed through the holes in two sealing screws mounted on the bottom of the scale. PC3060 Price Computing Scale User Instructions...
  • Page 30 Brecknell USA 1000 Armstrong Dr. Fairmont MN 56031 Toll free:800-637-0529 Tel:507-238-8702 Fax:507-238-8271 Email:sales@brecknellscales.com http://brecknellscales.com Brecknell UK Foundry lane, Smethwick, West Midlands England, B66 2LP Tel:+ 44 (0) 8452 466717 Fax:+44 (0) 8452 466718 Email:sales@brecknellscales.co.uk http://brecknellscales.com...
