Appendix A: Specifications

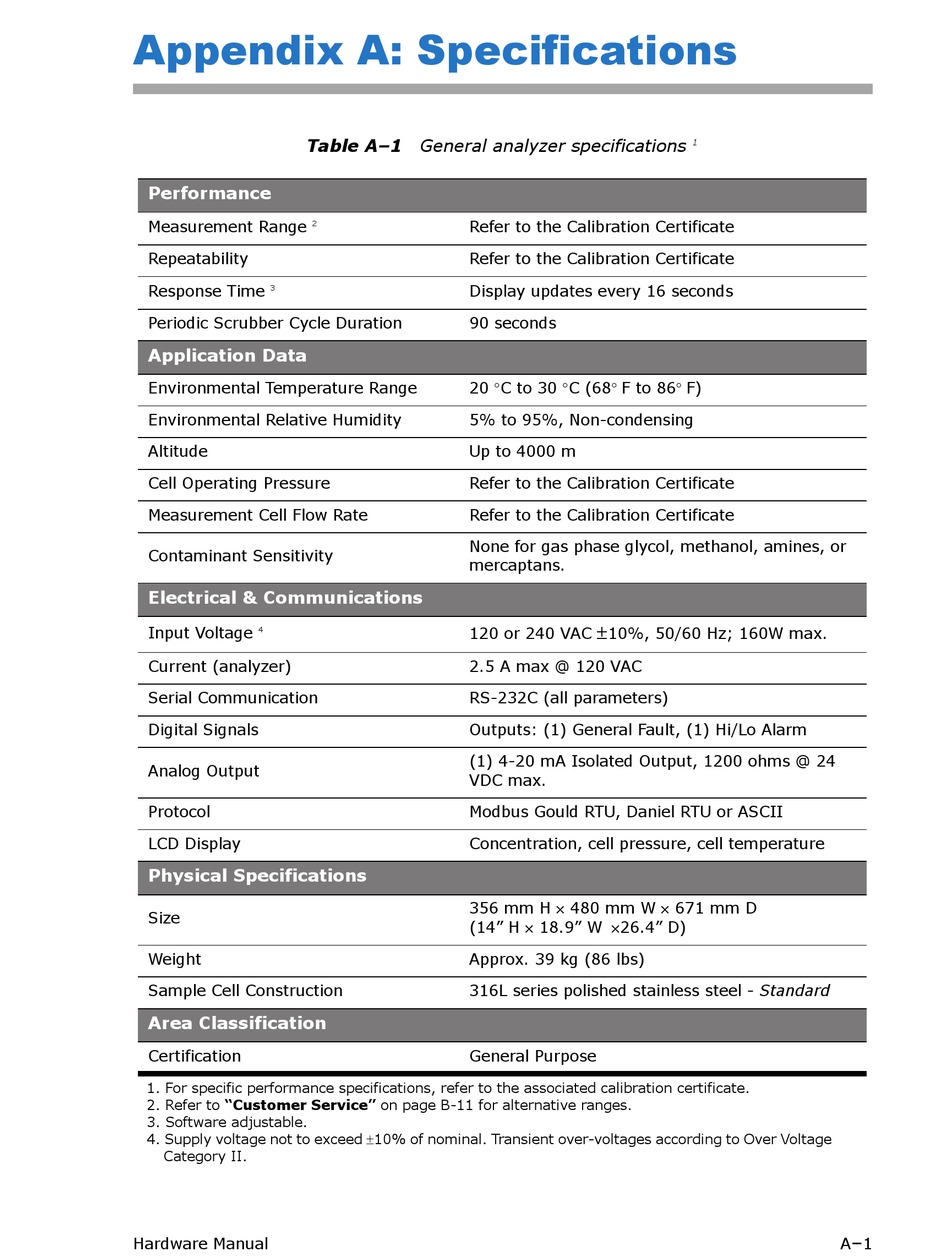

Table A–1 General analyzer specifications
Performance
Measurement Range
Repeatability
Response Time
3
Periodic Scrubber Cycle Duration
Application Data
Environmental Temperature Range
Environmental Relative Humidity
Altitude
Cell Operating Pressure
Measurement Cell Flow Rate
Contaminant Sensitivity
Electrical & Communications
Input Voltage
4
Current (analyzer)
Serial Communication
Digital Signals
Analog Output
Protocol
LCD Display
Physical Specifications
Size
Weight
Sample Cell Construction
Area Classification
Certification
1. For specific performance specifications, refer to the associated calibration certificate.
2. Refer to "Customer Service" on page B-11 for alternative ranges.
3. Software adjustable.
4. Supply voltage not to exceed 10% of nominal. Transient over-voltages according to Over Voltage
Category II.
Hardware Manual
Refer to the Calibration Certificate
2
Refer to the Calibration Certificate
Display updates every 16 seconds
90 seconds
20 C to 30 C (68F to 86F)
5% to 95%, Non-condensing
Up to 4000 m
Refer to the Calibration Certificate
Refer to the Calibration Certificate
None for gas phase glycol, methanol, amines, or
mercaptans.
120 or 240 VAC
2.5 A max @ 120 VAC
RS-232C (all parameters)
Outputs: (1) General Fault, (1) Hi/Lo Alarm
(1) 4-20 mA Isolated Output, 1200 ohms @ 24
VDC max.
Modbus Gould RTU, Daniel RTU or ASCII
Concentration, cell pressure, cell temperature
356 mm H  480 mm W  671 mm D
(14" H  18.9" W 26.4" D)
Approx. 39 kg (86 lbs)
316L series polished stainless steel - Standard
General Purpose
1

10%, 50/60 Hz; 160W max.
–
A 1
