Endress+Hauser SS2100 Operating Instructions Manual
Tdl measurement cell 0.1, 0.8, 8 and 28 m
Hide thumbs
Also See for SS2100:
- Operating instructions manual (128 pages) ,
- Operator's manual (114 pages) ,
- Operating instruction (98 pages)
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser SS2100
Summary of Contents for Endress+Hauser SS2100

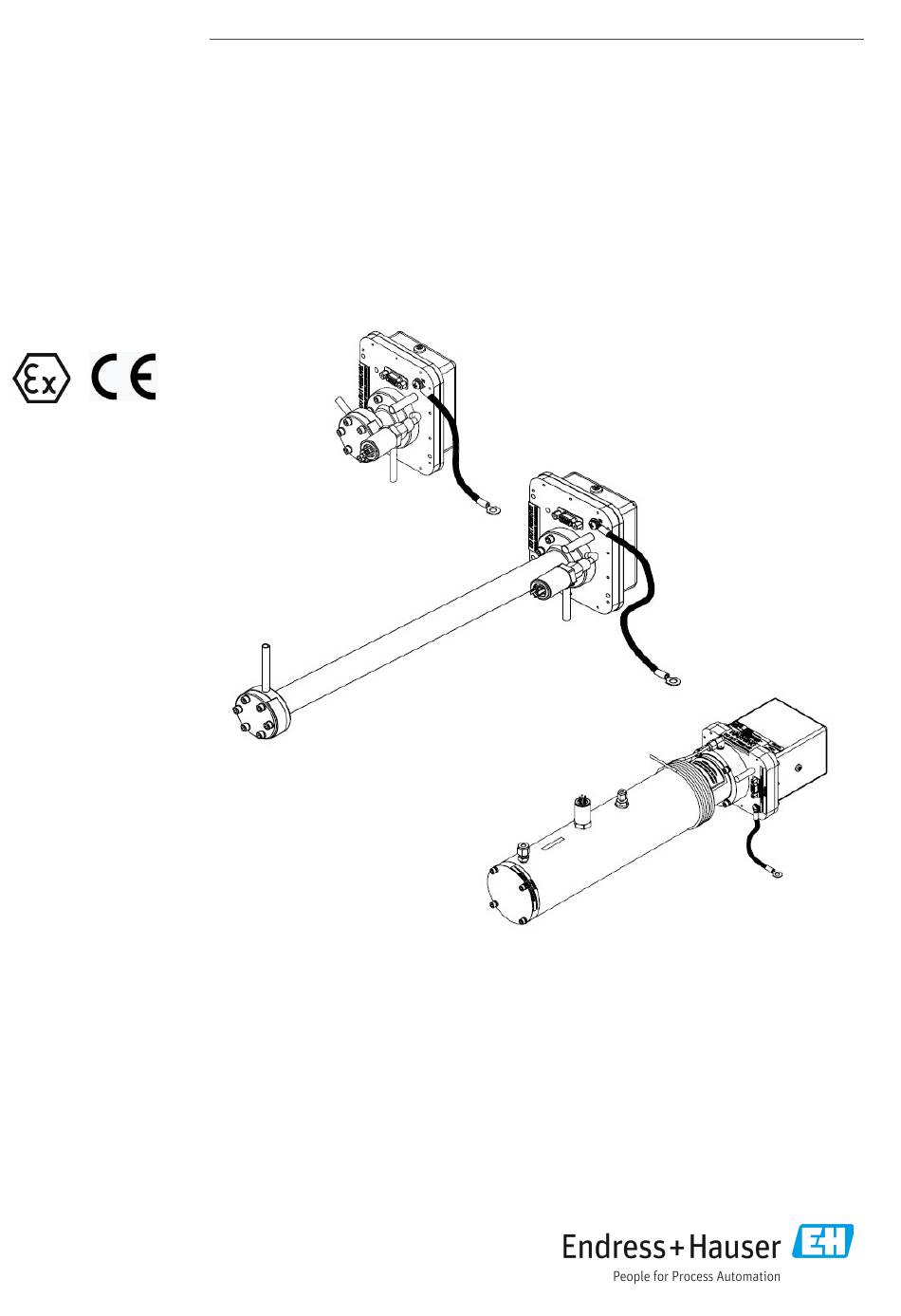

- Page 1 BA02188C/66/EN/02.24 Products Solutions Services 70220145 Operating Instructions TDL measurement cell (0.1, 0.8, 8 and 28 m)
-
Page 2: Table Of Contents
5.4 Instrument problems ..........26 2.5 How the analyzer works ......... 7 5.5 Disclaimers ............27 Installation ......... 12 5.6 Warranty ..............28 3.1 What is included in the shipping box ....12 Index ........... 29 3.2 Inspecting the analyzer ........12 Endress+Hauser... -
Page 3: About This Document
European Economic Area (EEA). U.S. export compliance The policy of Endress+Hauser is in strict compliance with U.S. export control laws as detailed on the website of the Bureau of Industry and Security at the U.S. Department of Commerce. -
Page 4: List Of Abbreviations
Raman calibration accessory HPLC high performance liquid chromatography hertz input/output International Electrotechnical Commission INTLK interlock internet protocol isopropyl alcohol intrinsically safe light emitting diode low voltage safety millimeter Endress+Hauser... - Page 5 SIMCA project file volt watt WEEE waste electrical and electronic equipment Endress+Hauser...
-
Page 6: Introduction
TDL measurement cell 2 Introduction Endress+Hauser systems are high-speed, diode laser-based extractive analyzers designed for extremely reliable monitoring of very low (trace) to standard concentrations of specific components in various background gases. This manual addresses the specifics of the measurement cells used in each analyzer rather than the analyzer as a whole. -
Page 7: About The Gas Analyzer
Failure to follow directions may result in fire. About the gas analyzer Endress+Hauser analyzers are tunable diode laser (TDL) absorption spectrometers operating in the near- to short-wavelength infrared. Each compact sensor consists of a TDL light source, sample cell and detector specifically configured to enable high sensitivity measurement of a particular component within the... - Page 8 With the SS2100 analyzer, sample gas flows continuously through the sample cell ensuring that the sample is always representative of the flow in the main pipe.
- Page 9 By normalizing the signal by the incident intensity, any laser output fluctuations are canceled, and a typical, yet more pronounced, absorption profile results, as shown in the figure. Endress+Hauser...
- Page 10 Endress+Hauser takes the fundamental absorption spectroscopy concept a step further by using a sophisticated signal detection technique called wavelength modulation spectroscopy (WMS). When employing WMS, the laser drive current is modulated with a kHz sine wave as the laser is rapidly tuned.
- Page 11 (depending on target and background species) at real-time response rates (on the order of 1 second). All Endress+Hauser TDL gas analyzers employ the same design and hardware platform. Measuring different trace gases such as H O, H...
-
Page 12: Installation
The measurement cell may be mounted vertically (with the optical head on top) or horizontally. 1. Mark the mounting holes on the panel. Refer to the figure. Drill four clearance holes, if using machine screws, or drill and tap four 1/4-20 holes, if using studs. Endress+Hauser... - Page 13 To mount a 0.1 m or 0.8 m measurement cell Select a location to mount the measurement cell within an environment that conforms to the specified operating conditions. The measurement cell may be mounted vertically (with the optical head on top) or horizontally. Endress+Hauser...
- Page 14 The 0.1 m cell uses the two mounting holes at the top only. The 0.8 m cell uses both mounting holes at the top and bottom. Figure 7: Hole pattern for mounting 0.1 m and 0.8 m measurement cell Description Vertical mounting dimension for SS2100i-1 Vertical mounting dimension for SS2100i-2 Endress+Hauser...
- Page 15 TDL measurement cell Installation 2. Mount cell with bracket. Refer to the figures. Figure 8: Mounting bracket assembly drawing for 0.1 m measurement cell Figure 9: Mounting bracket assembly drawing for 0.8 m measurement cell Endress+Hauser...
-
Page 16: Connecting The Optical Head To The Junction Box
All work needs to be performed by technicians qualified in pneumatic tubing. Endress+Hauser recommends using 1/4 in. O.D x 0.035 in. wall thickness, seamless stainless steel tubing. Refer to the measurement cell outline drawings in Appendix A for supply and return port locations. - Page 17 Secure tubing to appropriate structural supports as required. 5. Check all connections for gas leaks. Endress+Hauser recommends using a liquid leak detector. Do not exceed 0.7 barg (10 PSIG) in sample cell. Damage to cell may result.
-
Page 18: Appendix A: Specifications
439 mm H × 125 mm W × 118 mm D [0.8 m] Size (17.3 in. H × 4.9 in. W × 4.6 in. D) 515 mm H × 153 mm W × 182 mm D [8 m] (20.3 in. H × 6.0 in. W × 7.1 in. D) Endress+Hauser... - Page 19 228 (9.0) Figure 11: Outline schematic of 8 m and 28 m measurement cells. Dimensions: mm (in) 103 (4.1) 438 (17.2) 51 (2.0) 420 (16.5) (4.9) (.9) 51 (2.0) Figure 12: Outline schematic of 0.8 measurement cells. Dimensions: mm (in) Endress+Hauser...
-
Page 20: Spare Parts
Pressure Sensor 70156899 Thermistor 70156810 Stainless Steel Mirror Cell (0.8 m) 70162334 Pressure Sensor 70162334 Thermistor 70156809 Kit, Spares (O-rings, Screws), Viton, 0.8 m Cell 70156817 Kit, Cleaning Tools, Optical Cell (USA/Canada only) 70156818 Kit, Cleaning Tools, Optical Cell (International) Endress+Hauser... - Page 21 Kit, Cleaning Tools, Optical Cell (International) For a complete listing of new or updated certificates, please visit the product page at www.endress.com. Service → 1. Refer to Endress+Hauser before attempting use. Servicing this component without technical support could cause damage to other components. Endress+Hauser...
-
Page 22: Appendix B: Troubleshooting
Glass mirrors have no external markings. To determine the type of mirror being used for the system cell: 1. Feel at the bottom of the cell for the engraved ‘X’ marking. Refer to the figure. Endress+Hauser... - Page 23 Process samples may contain hazardous material in potentially flammable and/or toxic concentrations. Personnel must have a thorough knowledge and understanding of the physical properties and safety precautions for the sample contents before operating the SCS. 4. Carefully mark the orientation of the mirror assembly on the cell body. Endress+Hauser...
- Page 24 6. Look inside the sample cell at the top mirror using a flashlight to ensure that there is no contamination on the top mirror. Endress+Hauser does not recommend cleaning the top mirror. If the top mirror is visibly contaminated, refer to Service → .
- Page 25 750 to 3000 nm. Never open the sample cell flanges or the optical assembly unless the power is turned off. Always handle the optical assembly by the edge of the mount. Never touch the optical surfaces of the mirror. Endress+Hauser...
-
Page 26: Electrical Noise
flexible tubing. Possible alignment problem. Contact Service → . Possible mirror contamination issue. Contact Service → . If advised to do so, clean the mirrors by following the instructions under To clean the mirror → . Endress+Hauser... -
Page 27: Disclaimers
Disclaimers Endress+Hauser accepts no responsibility for consequential damages arising from the use of this equipment. Liability is limited to replacement and/or repair of defective components. This manual contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form without prior written consent from Endress + Hauser. -
Page 28: Warranty
For a period of 18 months from date of shipment or 12 months in operation, whichever comes first, Endress+Hauser warrants that all products sold by it must be free from defects in material and workmanship under normal use and service when correctly installed and maintained. Endress+Hauser’s sole liability and Customer’s sole and exclusive remedy for a breach of warranty is limited to... -
Page 29: Index
Tunable diode laser absorption spectroscopy (TDLAS), Pressure too High, 27 Pressure too Low, 27 us export compliance, 3 Temperature too High, 27 Variations, 11 Gas leaks, 17 Pressure, 11 Gas lines, 16 Temperature, 11 glossary, 4 Wavelength modulation spectroscopy, 10 Incident energy, 9 Endress+Hauser... - Page 30 Index TDL measurement cell www.addresses.endress.com Endress+Hauser...
