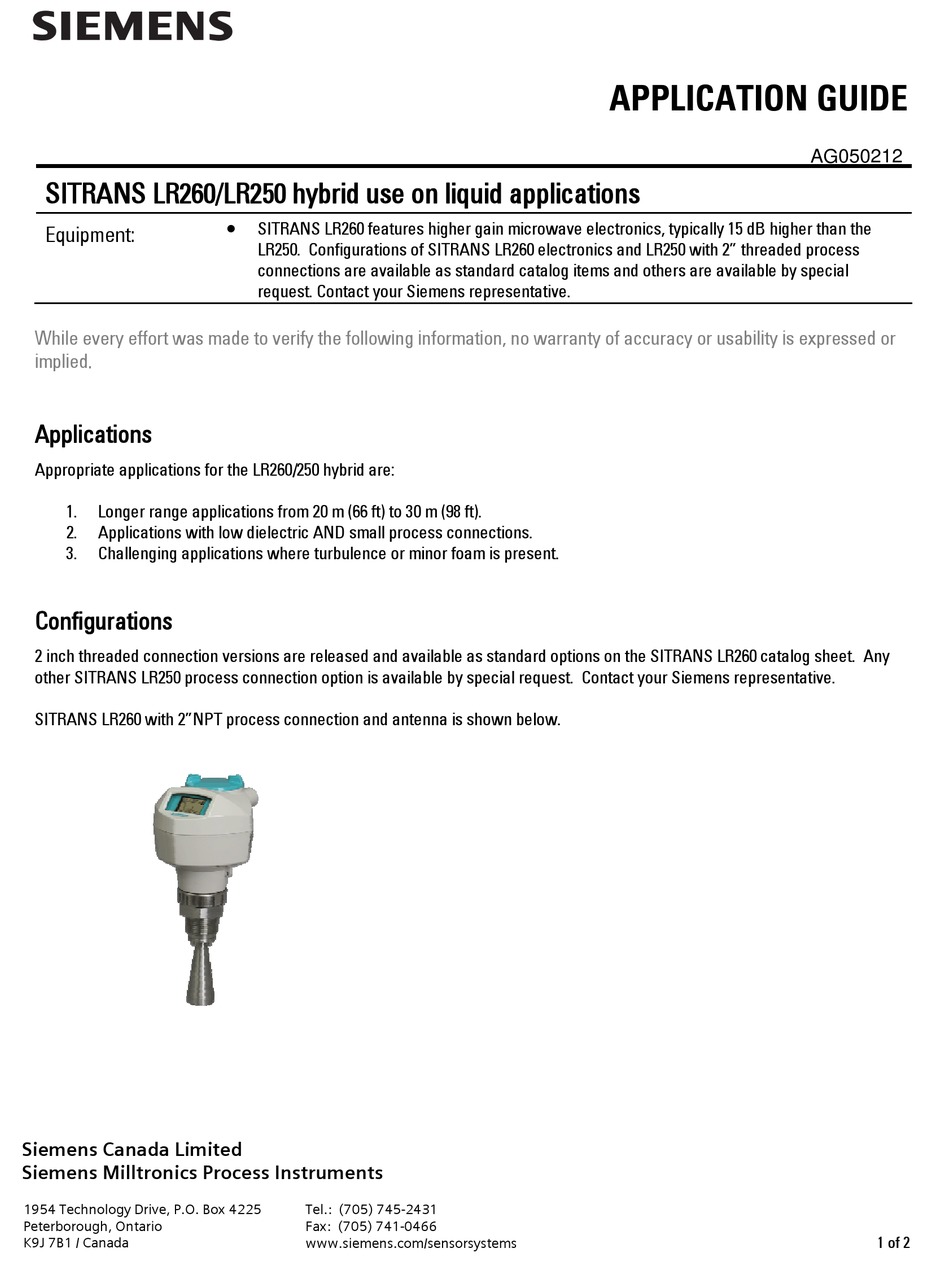

Siemens Sitrans LR260 Application Manual

SITRANS LR260/LR250 hybrid use on liquid applications
Equipment:
While every effort was made to verify the following information, no warranty of accuracy or usability is expressed or
implied.

Applications

Appropriate applications for the LR260/250 hybrid are:
1. Longer range applications from 20 m (66 ft) to 30 m (98 ft).
2. Applications with low dielectric AND small process connections.
3. Challenging applications where turbulence or minor foam is present.

Configurations

2 inch threaded connection versions are released and available as standard options on the SITRANS LR260 catalog sheet. Any
other SITRANS LR250 process connection option is available by special request. Contact your Siemens representative.
SITRANS LR260 with 2"NPT process connection and antenna is shown below.
Siemens Canada Limited
Siemens Milltronics Process Instruments
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario
K9J 7B1 / Canada

SITRANS LR260 features higher gain microwave electronics, typically 15 dB higher than the
LR250. Configurations of SITRANS LR260 electronics and LR250 with 2" threaded process
connections are available as standard catalog items and others are available by special
request. Contact your Siemens representative.
Tel.: (705) 745-2431
Fax: (705) 741-0466
www.siemens.com/sensorsystems
APPLICATION GUIDE
AG050212
1 of 2
